Avocent® RM1048P Rack Manager
Quick Installation Guide
The following instructions will help you
install your rack manager and configure
it for remote access.
The rack manager ships with the
following default settings:
• DHCP, SSH and HTTPs are
enabled.
• The console setup port is enabled.
• The management port is disabled.
• Downstream ports are enabled.
• The default user account is admin,
with the default password admin. The
first time you log in, you are prompted
to create a new password.
Rack Manager Rack Mounting
1. Attaching the
rear bracket plates
NOTE: The rear bracket plate is
designed to accommodate a variety
of server cabinet depths. Determine
the server cabinet depth, then
select the appropriate bracket plate
attachment hole pattern that, when
attached to the appliance, will allow
the bracket plate to extend just
beyond the rear uprights.
Using at least four of the provided
screws, attach a rear bracket plate
to one side of the rack manager.
Repeat for the opposite side.
2. Attaching the
front ear brackets
Using the provided screws, attach
the front ear brackets to the front
four holes on each side of the rack
manager.
3. Attaching the rear bracket
plate holders to the uprights
Using the appropriate hardware,
attach the rear bracket plate holders
to the rear two server cabinet
uprights. Orient the brackets'
channels so they protrude into the
server cabinet space. Fasten in place
with the appropriate hardware.
Repeat for the opposite side.
PROPRIETARY AND CONFIDENTIAL ©2024 VERTIV GROUP CORP.

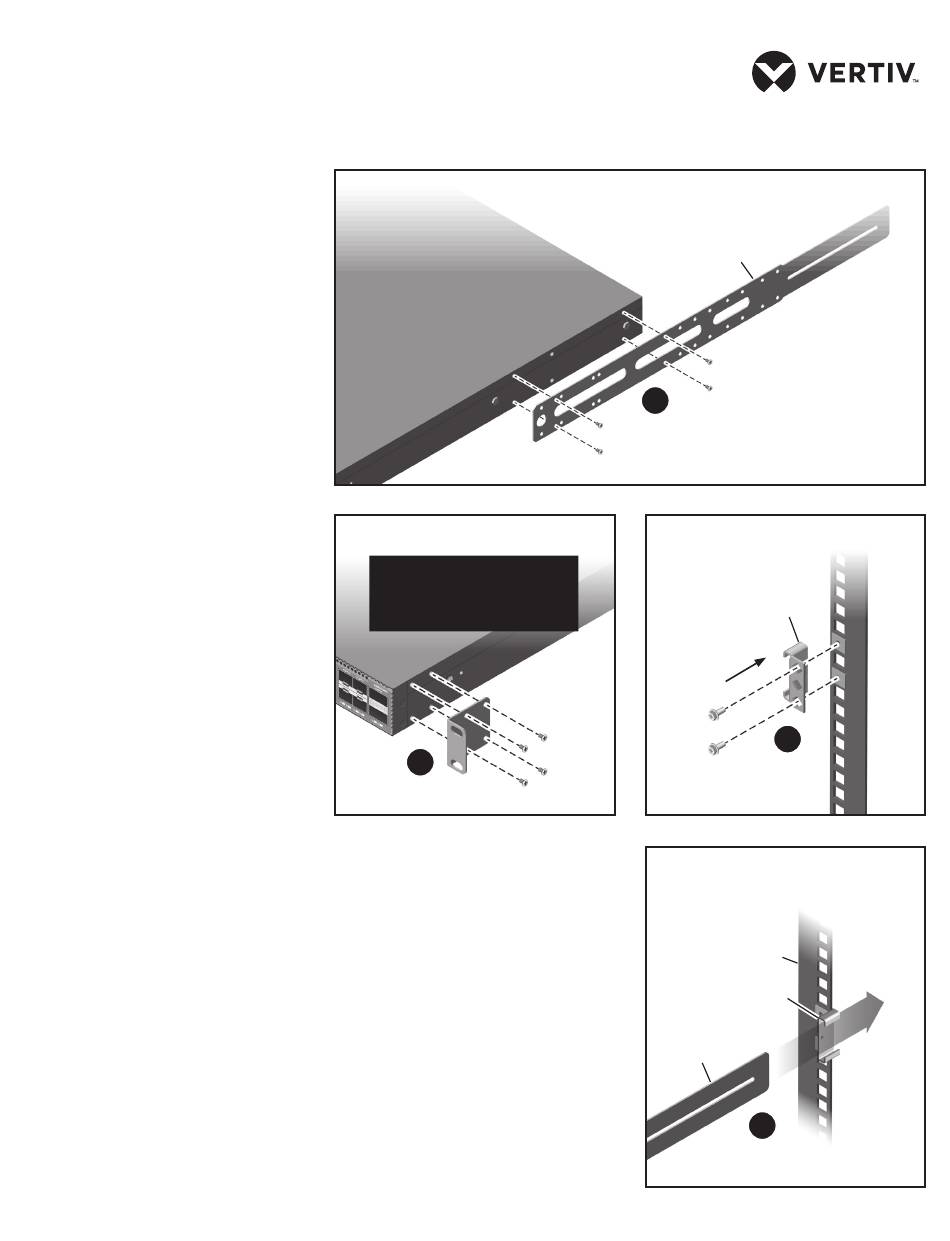

Attaching the Rear Bracket Plates
Attaching the Front Ear Brackets
NOTE: The short front bracket
is shown. An optional longer
front bracket is also provided
to allow inset mounting.
2
4. Attaching the front brackets to
the uprights
Slide the rack manager/bracket
assembly into the selected 1U space.
Guide the protruding rear bracket
plate ends into the channels of the
rear bracket plate holders attached
to the rear server cabinet uprights.
Using the appropriate hardware,
attach the front brackets to the front
two server cabinet uprights.
5. Securing the
rear bracket plate
Insert a supplied screw through the
rear slot of each rear bracket plate
and into the threaded hole of their
respective rear bracket plate holders.
Rear bracket
plate
1
Attaching the Rear Bracket
Plate Holders
Channel
Into the server
cabinet space
3
Guiding the Rear Bracket Plate
Through the Rear Bracket Plate
Holder
Rear server
cabinet upright
Rear bracket
plate holder
Rear bracket
plate
4
590-2341-501E 1
