KMMLED156 RACK MOUNT 15.6"
CONSOLE TRAY FOR DELL EMC
Quick Installation Guide
The KMMLED156 console tray
assembly is provided with a pair of
slide-rail assemblies, a keyboard,
display, slide tray, Cable
Management Arm (CMA), inner
slide rails on the slide tray and an
installed VGA cable. An uninstalled
DisplayPort cable is also provided.

INSTALLATION

The slide-rail assemblies are
marked L for the left-rail assembly
and R for the right-rail assembly.
The front end of each assembly is
marked FRONT to ensure proper
installation in the rack.
CAUTION: If you are installing
more than one unit concurrently,
keep the outer slides matched with
the inner slides, which are mounted
on the slide tray. Rails and slide
trays that ship together must be
paired together. Mismatched pairs
may result in damage to the slide-
rail assemblies, slide tray or rack
cabinet.
1. Installing the slide-
rail assemblies into a
standard EIA rack
NOTE: The slide-rail mounting
mechanism has two spring-
loaded pins at each end of the
rail assemblies that retract. The
pins fit 10-32 threaded holes or
EIA-standard square- or round-
hole racks. The spring-loaded
pins self-adjust to adapt to the
rack hole configuration. Each
set of spring-loaded sleeves is
equipped with release tabs to
pull and disengage the slide-rail
assembly.
Align the two back spring-
loaded pins of the slide-rail
assembly with corresponding
holes on the rack and pull to
secure.
Extend the rail assembly to the
appropriate length of the rack.

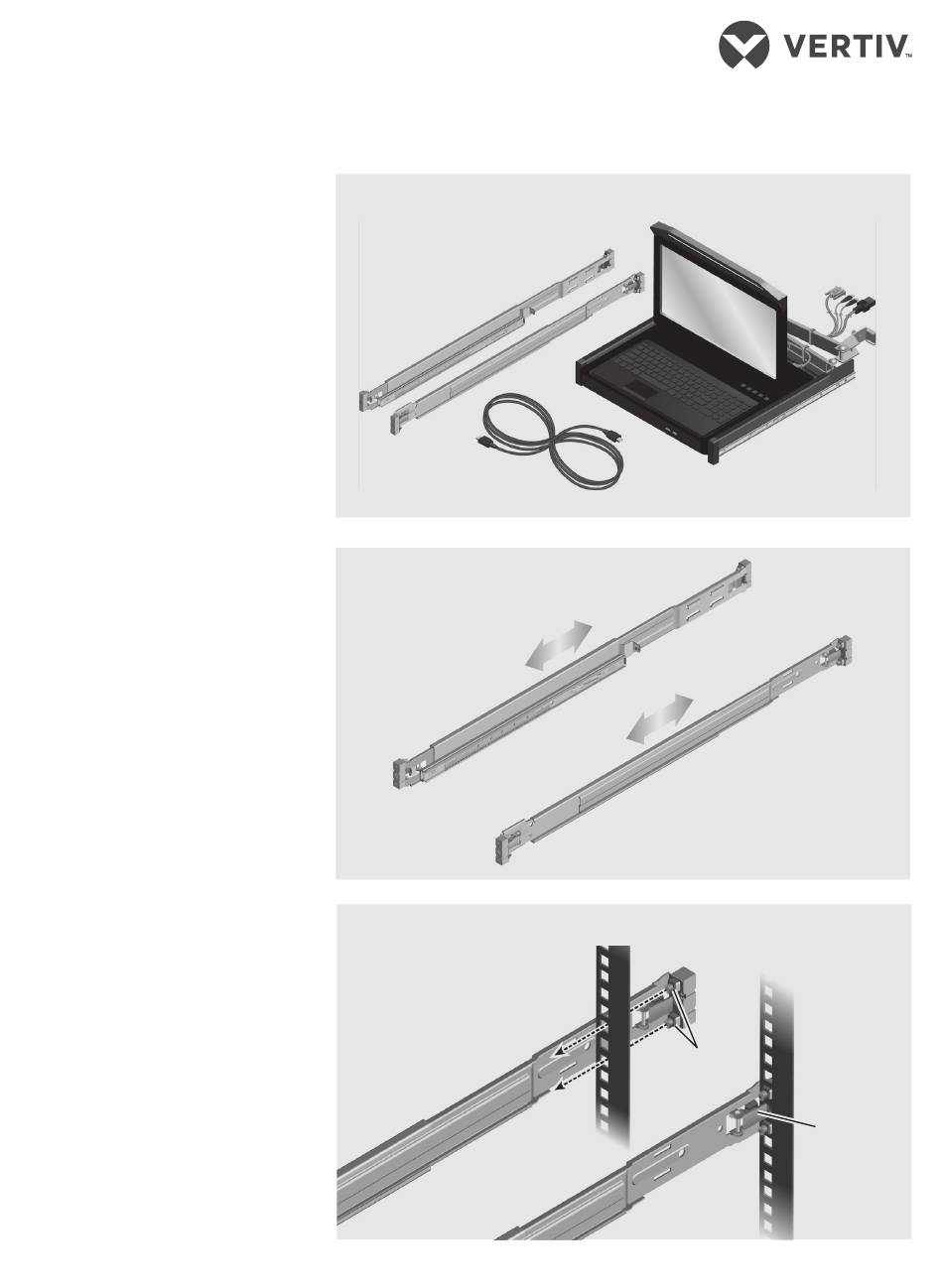

KMMLED156 Rack Mount Console Tray
Expandable Rack Rail Assemblies
Slide-Rail Assembly Installation (Square Hole Configuration Shown)
Spring-loaded
pins
Back of
release tab
590-2130-501A
1
