5.3 Unpacking and transport
NOTE
The module box can be removed for transport
( "Dismantle the module box", page 12).
Notes on safe transport
The heating station and the module box are
heavy ( "Technical data / Scope of supply", from
page 24). There is a risk of injuries or damage to
property if the housing with the unit components falls
or overturns or if the module box falls.
► The heating station and module box must be
transported and installed by several persons.
► Secure the heating station during transport. Carry
the module box by the carrying lugs.
There is a risk of cutting your hands on sharp edges
of the unit.
► Wear cut resistant protective gloves.
The hydraulic connections are not designed for
mechanical loads.
► Do not lift or transport the unit by the hydraulic
connections.
If the module box is tilted by more than 45°, compressor
oil runs into the cooling circuit.
► Do not tilt the unit with installed module box by
more than 45°.
Transport the unit preferably with a pallet truck,
alternatively with a handcart.
Transport with a pallet truck
► Transport the unit to the place of installation
packaged and secured on a wooden pallet.
10
Unpacking
NOTE
If the unit is not transported by a pallet truck:
Do not lift off the pallet until after unpacking
and dismantling the housing panels.
1. Remove plastic films. Ensure that you do not
damage the unit.
2. Dispose of the mounting bracket, transport and
packaging material in an environmentally friendly
way according to local regulations.
3. Remove the film from the plastic element of the
front panel in the place of installation.

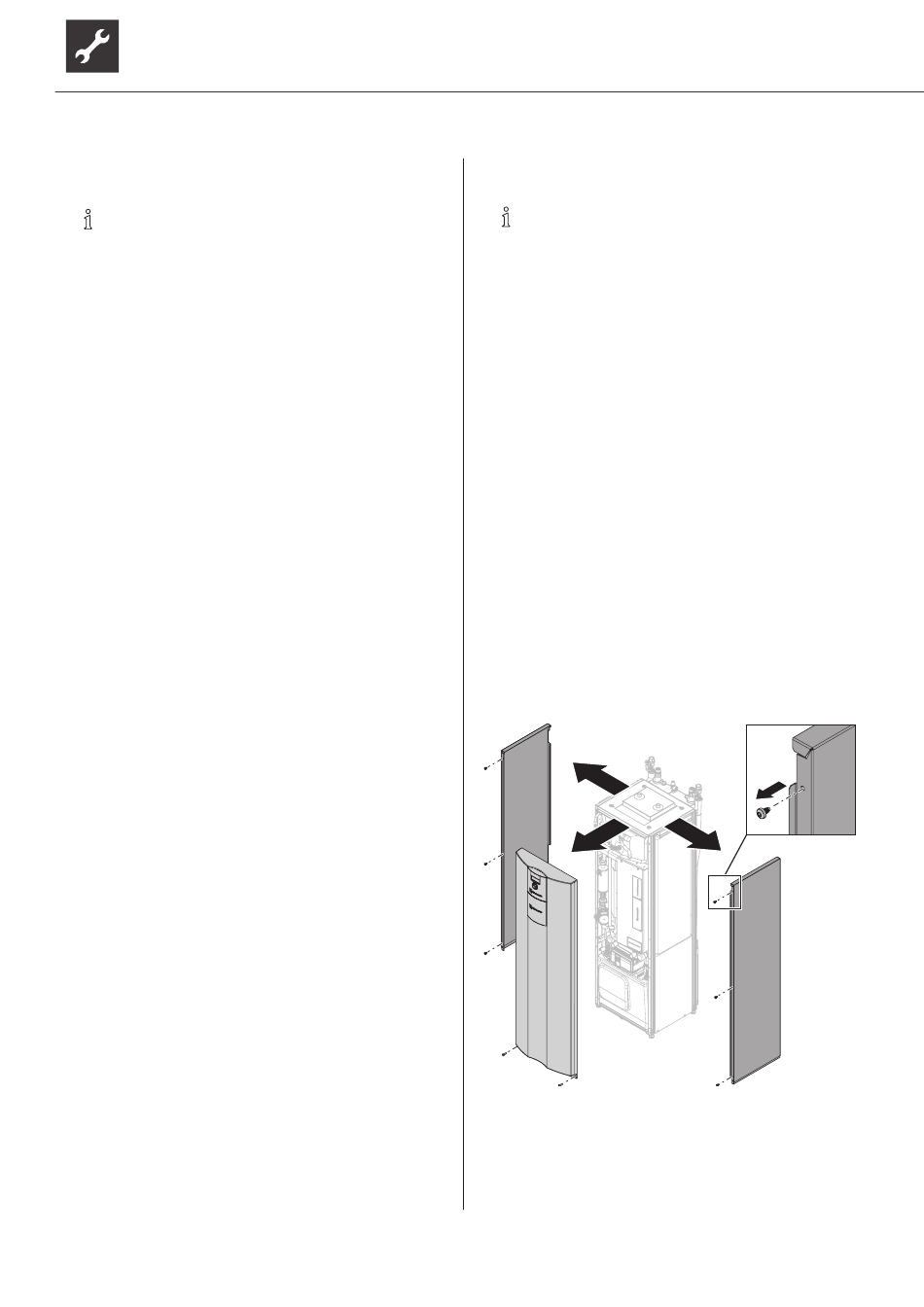

Dismantle housing panels for transport with
handcart or carrying the unit
Unit is unpacked ( "Unpacking", page 10).

To avoid damage to the housing panels:
1. Undo 2 screws at the bottom of the front panel.
Lift up the front panel and put it down in safe
place.
2. Undo 3 screws at the right panel.
Lift up the side panel and put it down in safe place.
3. Undo 3 screws at the left panel.
Lift up the side panel and put it down in safe place.
2.
1.
Subject to change without notice | 83057400aUK | ait-deutschland GmbH
8x
3
