Pull in the cables and conductors and make
the connections
1. Strip the sheathing of all cables to the external loads
before laying in the cable duct of the control box.

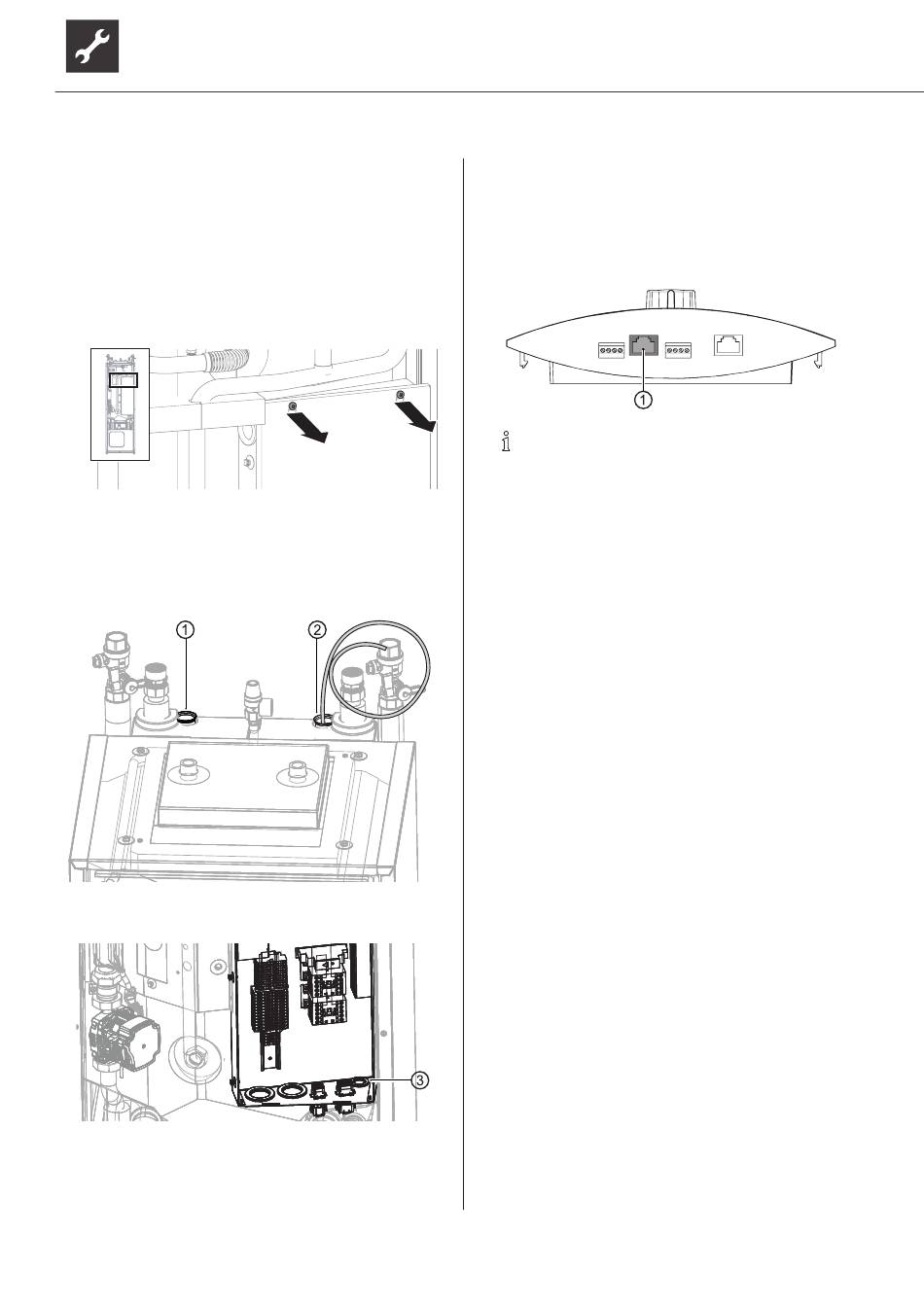

2. Open electrical switchbox:
● Undo 2 screws at the top of the cover panel of
the electrical control box
● Unhook cover panel
3. Lay the control / sensor cables and unit supply
cable and connect:
● Route cables through the reserve conduits (①)
and (②) only, from above into the inside of the
unit
● Route cables from underneath through the ca-
ble openings in the control box (③)
● Connect cables to the respective terminals
( "Terminal diagrams", page 38).
16
Operate the controller via a PC /network
1. During installation lay a shielded network cable
(category 6) through the unit.
2. Plug the RJ-45 connector of the network cable
into the socket of the control unit (①).
NOTE
The network cable can be retrofitted at any
time.
