- Page 1 Parking Guidance LED Screen User Manual...
-
Page 2: Legal Information
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS. - Page 3 Parking Guidance LED Screen User Manual PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER PREVAILS.
-
Page 4: Symbol Conventions
Parking Guidance LED Screen User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, Caution could result in equipment damage, data loss, performance... -
Page 5: Table Of Contents
Parking Guidance LED Screen User Manual Contents Chapter 1 Introduction ........................1 1.1 Product Introduction ......................1 1.2 LED Screen Type ........................ 1 Chapter 2 Installation ........................2 2.1 Installation ........................2 Chapter 3 configuration........................4 3.1 Search Screen IP ........................ 4 3.2 Change Screen IP....................... -
Page 6: Chapter 1 Introduction

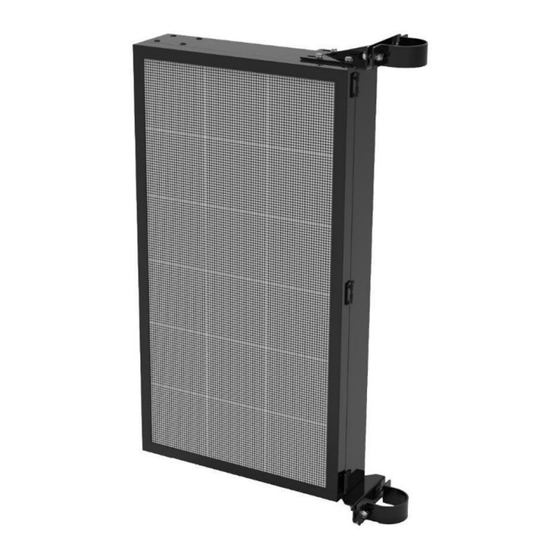

1.1 Product Introduction This document is a guide for Parking Guidance LED Screen installation and configuration. The Parking Guidance LED screen is mainly used in the parking lots scenario. Display dynamic arrows and remaining parking space number. 1.2 LED Screen Type DS-TVL236-3-5P... -
Page 7: Chapter 2 Installation
Parking Guidance LED Screen User Manual Chapter 2 Installation 2.1 Installation Pole-mounted: 1. Fix the bracket to screen first 2．Install the hoop to the vertical pole. 2. Fix the device with the hoop via screws. 3. Connect the power and RJ45 of the device. - Page 8 Parking Guidance LED Screen User Manual Wall-mounted： 1. Fix the bracket to screen first 2. Fix the device to the wall. 3. Connect the power and RJ45 of the device.
-
Page 9: Chapter 3 Configuration
Parking Guidance LED Screen User Manual Chapter 3 configuration After the installation completes, power on the LED screen, starting to configure the LED screen 3.1 Search Screen IP Opening the PlayerMaster，search the LED screen first... -
Page 10: Change Screen Ip
Parking Guidance LED Screen User Manual 3.2 Change Screen IP Select the screen and find the Network, enable the LAN and set the IP Address for screen. 3.3 Test Go to Program, you can create a program for test. Click New to create new... - Page 11 Parking Guidance LED Screen User Manual program and set the width and Height of program. Add a Single-Line Text and input the content.
- Page 12 Parking Guidance LED Screen User Manual Publish program Publish success and check what’s showing on the screen.
