  • Page 1 Full-Color LED Display Unit User Manual...

  • Page 2: Legal Information

    SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

  • Page 3: Applicable Models

    Full-Color LED Display Unit User Manual Preface Applicable Models This manual is applicable to the models listed below. Series Model Name DS-D42XXFI-GW DS-D4212FI-GW Full-Color LED Display Unit DS-D4215FI-GW DS-D4219FI-GW DS-D42XXFI-CW DS-D4225FI-CW DS-D42XXFI-GWF DS-D4212FI-GWF DS-D4214FI-GWF DS-D4225FI-CWF Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could...

  • Page 4: Table Of Contents

    Full-Color LED Display Unit User Manual Contents Chapter 1 Product Introduction ....................1 1.1 Overview ..........................1 1.2 Main Feature .......................... 1 Chapter 2 Device Activation and Login ..................2 2.1 Activate the Device ........................ 2 2.2 Add Power Distribution Cabinet .................... 4 2.3 Login ............................
  • Page 5 Full-Color LED Display Unit User Manual 4.2 Test Screen Color ......................... 19 4.3 Configure Dehumidification ....................20 4.4 Detect Screen Status ......................21 4.5 View Device Information ...................... 21 4.6 View Receiving Card Information ..................22 4.7 Upgrade ..........................22 4.7.1 Upgrade Receiving Card/Multi-functional Card ............

  • Page 6: Chapter 1 Product Introduction

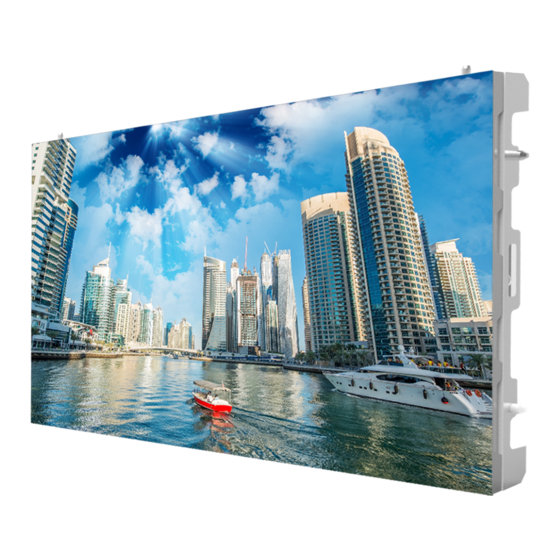

    Full-Color LED Display Unit User Manual Chapter 1 Product Introduction 1.1 Overview Full-color LED display unit (hereinafter referred to as the device, the product, or the LED) is a high- precision product delivering clear and vivid images. It is featured by wide color gamut, stable performance, long service life, strong environmental adaption, cost effective and little cost to use.

  • Page 7: Chapter 2 Device Activation And Login

    Full-Color LED Display Unit User Manual Chapter 2 Device Activation and Login 2.1 Activate the Device In order to protect personal account privacy and reinforce system/data security, you need to set login password and activate the device for your first login. Before You Start •...
  • Page 8 Full-Color LED Display Unit User Manual Figure 2-2 Activate Online Device 3. Select the device to be activated and click Activate. 4. Enter Password and Confirm Password in the popup window. Figure 2-3 Activation Caution We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

  • Page 9: Add Power Distribution Cabinet

    Full-Color LED Display Unit User Manual Note If the network segment which device connected has DHCP function, it will allocate IP by default, please skip step 6, 7 and 8. 2.2 Add Power Distribution Cabinet You can add a power distribution cabinet as needed. The client can turn on/off the screen remotely after adding the power distribution cabinet.

  • Page 10: Chapter 3 Client Configuration And Operation

    Full-Color LED Display Unit User Manual Chapter 3 Client Configuration and Operation 3.1 Wizard For the first login, the client will pop up a wizard, including display attribute configuration and signal cable configuration. Set the parameters as needed, and the client can recognize the screen parameters automatically when you log in the next time.

  • Page 11: Configure Signal Cable

    Full-Color LED Display Unit User Manual Configure Screen Resolution After configuring the screen resolution, the display image can match the actual screen resolution. It can reduce the image loss and partial black screen caused by resolution. Steps 1. Enter Display Attribute interface. 2.

  • Page 12: Other Operation

    Full-Color LED Display Unit User Manual Figure 3-2 Signal Cable Configuration 4. Connect signal line. - Click the screen on the right side of the interface to connect signal line. - Select Line Type, and select starting port and end port on the right side of the interface. 5.

  • Page 13: Signal Input Type Configuration

    Full-Color LED Display Unit User Manual 3.2 Signal Input Type Configuration Select the signal source type in the upper right corner of Display Status. You should select the signal source according to the sending card resolution. Note Different signal source may result in different resolution. 3.3 Display Adjustment Screen can get best display effects by configuring image parameters, brightness and enhancement, screen display parameters, etc.
  • Page 14 Full-Color LED Display Unit User Manual 2. Select Enable Correction. 3. Select Screen in Correction. 4. Select area to correct. - Check Show Module and select the module to correct. - Uncheck Show Module and select the screen to correct. 5.
  • Page 15 Full-Color LED Display Unit User Manual Figure 3-4 Correct Seam Manually 2. Select Enable Correction. 3. Select Seam in Correction. 4. Select Calibration Range. Correct all seams. Vertical Line Correct all vertical seams. Horizontal Line Correct all horizontal seams. 5. Select area to correct. - Check Show Module and select the module to correct.

  • Page 16: Configure Screen Color

    Full-Color LED Display Unit User Manual Batch Correct Screen You can correct screen display in a batch by importing correction file. Before You Start • The correction file has been obtained from the supplier. • Select a screen as the start of the batch correction in the Manual Correction . Steps 1.

  • Page 17: Configure Brightness

    Full-Color LED Display Unit User Manual Figure 3-6 Image Adjustment 2. Select Color Temperature . 3. Select Color Standard. BT.2020 Applicable to UHD (Ultra High Definition) devices. DCI.P3 Applicable to digital cinemas and high-end displays. BT.709 Applicable to HDTV(High Definition Television) and other common video devices. sRGB Applicable to general displays.

  • Page 18: Configure Image Enhancement

    Full-Color LED Display Unit User Manual Figure 3-7 Brightness Adjustment 2. Adjust the brightness. Brightness ranges from 1 to 8. Brightness of energy saving mode ranges from 1 to 2. Brightness of balanced mode ranges from 3 to 4. Brightness of high light mode ranges from 5 to 6.

  • Page 19: Input Capability

    Full-Color LED Display Unit User Manual Figure 3-8 Image Enhancement 2. Slide the slider to adjust Clarity, Contrast and Saturation. 3. Optional: Check Test to view the image effect on the screen. Screen on the left side shows the image before enhancement, while the screen on the right side shows the image after enhancement.

  • Page 20: Add Device Alias

    Full-Color LED Display Unit User Manual Note Before enabling 3D function, you need to install mulch-functional card first. 3. Click OK. 3.4 Add Device Alias Device alias is used to distinguish devices from each other. Steps 1. Click on the Display Status. 2.

  • Page 21: Configure Osd

    Full-Color LED Display Unit User Manual 2. Enable Show Message. 3. Enter message in the text box. 4. Configure text style, including font color, font size, position and rolling speed. Note Background color is black by default and is not adjustable. 5.

  • Page 22: Configure No-Signal Screensaver

    Full-Color LED Display Unit User Manual Before You Start The network segment connected by the device has DHCP (Dynamic Host Configuration Protocol) function. Steps 1. Click Screen Adjustment → Advanced Operation → Network Configuration . 2. Click Obtain IP Address Automatically. Note This function is enabled by default.

  • Page 23: Configure Multicast Control

    Full-Color LED Display Unit User Manual Note • The picture format only can be JPG and resolution should be between 320 * 240 and 3840 * 3840. • If you upload more than one picture, the pictures will be auto switches automatically when the screensaver displays.

  • Page 24: Chapter 4 Device Maintenance

    Full-Color LED Display Unit User Manual Chapter 4 Device Maintenance 4.1 Screen Defective Pixel Detection You can check the defective pixels of the screen. You can hover over the virtual screen on Display Status to check the number of defective pixels on the screen.

  • Page 25: Configure Dehumidification

    Full-Color LED Display Unit User Manual Figure 4-1 Screen Detection 2. Select Enable Detection. 3. Select the image you want to test. - Click the image you want to test. - Click the white box beside Custom Color to customize colors, and click OK. - Click Enable Auto Detection, and the system will display default images to test.

  • Page 26: Detect Screen Status

    Full-Color LED Display Unit User Manual Figure 4-2 Dehumidification Configuration 2. Select Auto Dehumidification. 3. Select Area. High Humidity Area, Medium Humidity Area, Low Humidity Area are selectable. 4. Click OK. Operation Description Enable Dehumidification Enable dehumidification manually. Disable Dehumidification Disable dehumidification manually.

  • Page 27: View Receiving Card Information

    Full-Color LED Display Unit User Manual Select Display Status to check device version information, including Controller Version, FPGA Version, Card Type, and so on. 4.6 View Receiving Card Information View receiving card information, including network interface, number of connected devices, whether the version is matched, and version number.

  • Page 28: Upgrade Receiving Card/Multi-Functional Card

    Full-Color LED Display Unit User Manual Note Do not disconnect the power supply during updating. 4.7.1 Upgrade Receiving Card/Multi-functional Card You can upload upgrade patch to upgrade receiving card or multi-functional card. Steps 1. Click System Settings → System Maintenance → Upgrade 2.

  • Page 29: Chapter 5 System Maintenance

    Full-Color LED Display Unit User Manual Chapter 5 System Maintenance This chapter mainly introduces importing/exporting configuration file, searching logs, restoring parameters, restoring default settings, and time synchronization. 5.1 Import/Export Configuration File Configuration file can be imported to configure the system easily. Steps 1.

  • Page 30: Sync Time

    Full-Color LED Display Unit User Manual 4. Optional: Click Export to export all the search results. Note Logs can be exported in CSV or XML file format. A prompt window will pop up when the logs are exported successfully. 5.4 Sync Time Steps 1.

  • Page 31: Chapter 6 Local Configuration And Operation

    Full-Color LED Display Unit User Manual Chapter 6 Local Configuration and Operation Use a combination of multi-functional card and remote control to operate the LED screen OSD menu. Ensure the device is connected and activated before using the remote control. Press Menu button to go to Local Operation.
  • Page 32 Full-Color LED Display Unit User Manual Description Menu Enter the menu. Shortcut Press the shortcut key and press the number key to enable function quickly. Press the back key to disable the function. • 0: Enable 3D function. • 1: Enable dehumidification. •...

  • Page 33: Chapter 7 Faq

    Full-Color LED Display Unit User Manual Chapter 7 FAQ 7.1 Full Screen is Unlit Reason • No power supply for screen or control device. • No input signal. • The controlling computer is sleeping or the graphics card settings are incorrect. •...

  • Page 34: Full-Screen Image Flashes Or Vibrates

    Full-Color LED Display Unit User Manual 7.3 Full-screen Image Flashes or Vibrates Reason • DVI output of graphics card or other device fails. • Receiving card number loaded by single network interface is larger than its load capacity. • Signal cable is too long. Solution •...

  • Page 35: Certain Module Or Row Of Modules Are Unlit In Unit

    Full-Color LED Display Unit User Manual Solution • Check if the power supply output of the unit is 5 VDC. • Check if power supply indicator of the receiving card in the unit is solid red, or if the receiving card is operating normally.
  • Page 36 UD14409B...
