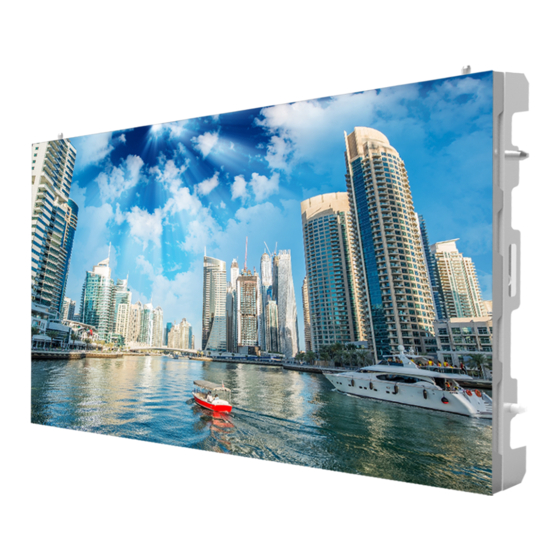

Full-color led display unit
Hide thumbs Also See for DS-D42 FI-GW Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Full-Color LED Display Unit Installation Manual
Full-Color LED Display Unit
Installation Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-D42 FI-GW Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-D42 FI-GW Series

Summary of Contents for HIKVISION DS-D42 FI-GW Series

  • Page 1 Full-Color LED Display Unit Installation Manual Full-Color LED Display Unit Installation Manual...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 Full-Color LED Display Unit Installation Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 Full-Color LED Display Unit Installation Manual Applicable Models This manual is applicable to the models listed in the following table. Series Model DS-D4212FI-GW DS-D42XXFI-GW DS-D4215FI-GW DS-D4219FI-GW DS-D42XXFI-CW DS-D4225FI-CW Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement...
  • Page 5 Full-Color LED Display Unit Installation Manual  To ensure safety, the installation parts and the wall should support four times the weight of the device.  Install the device no more than 5 mm away from the wall or other metal racks in case of lamp board drop resulting in electric shock.

  • Page 6: Table Of Contents

    Full-Color LED Display Unit Installation Manual TABLE OF CONTENTS Chapter 1 Overview .......................... 6 Introduction ........................6 Product Components ......................6 Chapter 2 Rack Installation ......................7 About Rack ......................... 7 Install the Rack ........................7 Precautions........................ 7 Install the All-in-One Rack ..................7 Install the Wall Mount Rack ..................

  • Page 7: Chapter 1 Overview

    Full-Color LED Display Unit Installation Manual Chapter 1 Overview Introduction A full-color LED display unit (hereafter referred to as “device” or “product”) is a large display panel that uses an array of light-emitting diodes as dot matrix modules or pixels for information display. It has a very small pixel pitch, which indicates the shortest distance between the centers of two pixels, helping to realize the nearly seamless stitching of screens.

  • Page 8: Chapter 2 Rack Installation

    Full-Color LED Display Unit Installation Manual Chapter 2 Rack Installation About Rack There are two types of racks for installing our full-color LED products: all-in-one rack and wall mount rack. The wall mount rack is used for installing front-maintenance cabinets only. The rack models vary depending on the project scale and installation environment, so the rack illustrations in this manual are for reference only.
  • Page 9 Full-Color LED Display Unit Installation Manual Use a gradienter to adjust the bottom plates and then tighten the screws. Leveled Bottom Plate Install Rack Frames and Lower Rails Position the rack frames on the bottom plate and secure the rack frames. Use the gradienter to measure each vertical component and ensure they are vertical and on the same plane.
  • Page 10 Full-Color LED Display Unit Installation Manual Install the Upper Rails Side View of Rail Installation Install the Lower Filler Strips Connect the lower filler strips to the rack frames and fix them with screws. Align the filler strips and tighten the screws.
  • Page 11 Full-Color LED Display Unit Installation Manual Install the Lower Filler Strips Install the Connectors The following three types of connectors are used for connecting the rack frames. Type A is used for connecting the rack frames on the two sides. Type B is used for the inner parts of the two middle rack frames, while type C is used for the outer parts located on the top and bottom sides.
  • Page 12 Full-Color LED Display Unit Installation Manual Install the Connectors Secure the connectors to the rack frames with screws. Install the Cabinets Install the cabinets from bottom up, from the middle to the sides. Cabinets must be carefully installed, see Chapter 3 Cabinet Installation for the instructions. Cabinet Screens Installed...
  • Page 13 Full-Color LED Display Unit Installation Manual Install the Upper Filler Strips Connect the upper filler strips to the rack frames and fix them with screws. Align the filler strips and tighten the screws. Install the Upper Filler Strips Install the Scaffold Planks (for Large-scale Project) Use screws to connect the scaffold planks to the rack frames and tighten the screws.

  • Page 14: Install The Wall Mount Rack

    Full-Color LED Display Unit Installation Manual Install the Cover Plates Install the left, right, front, rear, and top cover plates respectively. Install the Cover Plates The following figure shows a LED display unit that is well installed. Screen Installation Finished Install the Wall Mount Rack The wall mount rack is used for installing front-maintenance cabinet LED screens only.
  • Page 15 Full-Color LED Display Unit Installation Manual Install the Base Rails Install the rack frames. Position a rack frame on the base rail and secure the rack frame to the base rail and then to the wall. Then repeat the steps to install all the other rack frames. Keep the rack frame vertical after installation.
  • Page 16 Full-Color LED Display Unit Installation Manual  Do not screw too tight for future adjustment.  During installation, always pay attention to the flatness. Ensure that the frame racks are flat, and adjust slightly the lamp boards on the front as well so that lamp boards are all flat with even and standard seams.

  • Page 17: Chapter 3 Cabinet Installation

    Full-Color LED Display Unit Installation Manual Chapter 3 Cabinet Installation Introduction About the Cabinet A cabinet is a basic unit for LED engineering installation in which LED modules are neatly mounted on a metal sheet (cast aluminum) box, with a built-in independent receiving card and switching power supply, an engineering installation structure, and independent display.

  • Page 18: Load Capability

    Full-Color LED Display Unit Installation Manual Load Capability The following table lists the load capability of a single network interface of the sending card for different screen types. Cabinet Load Capability Screen Type Number of Cabinet Connections for an Max Load of a Single Input of 220 V Power Supply Network Interface P1.2...
  • Page 19 Full-Color LED Display Unit Installation Manual Fix the Screen with Joint Pieces Fix the Screen in the Middle of Rack Frames  Install the cabinets from the bottom to the top, from the middle to the sides.  Sink the screen into the lower filler strips by 3 mm. ...
  • Page 20 Full-Color LED Display Unit Installation Manual Install Screens from Middle to Sides Use the gradienter to measure and ensure that the cabinets are flat and vertical. Installation of the Lowest Row Finished...
  • Page 21 Full-Color LED Display Unit Installation Manual Fix the Screens When there is a deviation in height, simply place a thin iron sheet under the bottom. Do not try to resolve the deviation by hitting the cabinets on the top because it will result in larger deviation later.

  • Page 22: Stitch Cabinets

    Full-Color LED Display Unit Installation Manual Screen Installation Finished Stitch Cabinets Align two cabinets with the locating studs and locating holes. Locating Studs and Locating Holes on Cabinets...
  • Page 23 Full-Color LED Display Unit Installation Manual Initial Cabinet Locating After aligning the locking parts, rotate the lock sleeves anticlockwise to the end. Rotate Lock Sleeves Anticlockwise Push the locking shaft from the bottom up to go through the two cabinets.
  • Page 24 Full-Color LED Display Unit Installation Manual Push the Locking Shafts Slide the slip sheet and lock it into the groove of the locking shaft. Slide the Slip Sheets Fix the two adjacent cabinets by rotating the locking sleeves clockwise with an instrument. You can control the tightness by increasing or decreasing the rotation turns.

  • Page 25: Adjust Lamp Boards On The Cabinets Horizontally

    Full-Color LED Display Unit Installation Manual Rotate the Locking Sleeves Clockwise Adjust Lamp Boards on the Cabinets Horizontally Each LED lamp board has six adjustable points that can be used to adjust the flatness of the cabinet. In the following figure, all the circled points are adjusting points. Points Adjustable on the Cabinet Adjustment method: Rotate the screws with a word screwdriver to push the adjusting points and lamp boards out until the cabinet is level with others.

  • Page 26: Configuration Example

    Full-Color LED Display Unit Installation Manual Through Holes in the Four Corners of the Cabinet  To remove lamp boards inside a cabinet, firstly remove the back case and then use an instrument to penetrate the through holes as circled in the following figure to push the lamp boards out.
  • Page 27 Full-Color LED Display Unit Installation Manual If the power consumption of the cabinet is 300 W, the parameter of the one-to-one power cable is 100-240V, 10A, and then cabinets can be divided into groups by six. If one-to-two power cable is provided on site, assign one power cable to each two columns (with standard six or seven rows).
  • Page 28 Full-Color LED Display Unit Installation Manual Cabling Diagram for Eight Output Interfaces on the Client Cabling Diagram for Four-Interface Sending Card If the sending card provides four output interfaces, the cabling is shown in the following figure. Cabling Diagram for Four Output Interfaces The following figure shows the related cabling diagram on the client.
  • Page 29 Full-Color LED Display Unit Installation Manual Cabling Diagram for Four Output Interfaces on the Client Signal Redundancy The whole project adopts redundancy mode. Use the 8-interface sending card as an example. Client enables redundancy mode, and then system automatically set even network interfaces (LAN) to be standby.
  • Page 30 Full-Color LED Display Unit Installation Manual Cabling Diagram in Signal Redundancy Mode on the Client...

  • Page 31: Chapter 4 Software Debugging

    Full-Color LED Display Unit Installation Manual Chapter 4 Software Debugging Log Into the Device Install and open the LED client. Click Online Device to search for online devices. Activate the desired online device.  If the device is not activated, activate the device and set a password. ...

  • Page 32: Configure Signal Cables

    Full-Color LED Display Unit Installation Manual  Ensure that the device resides on the same network segment with your PC client.  Change your PC’s IP address to the device’s IP address which is displayed on the LED display controller at intervals. Click Refresh.
  • Page 33 Full-Color LED Display Unit Installation Manual The engineer password is Soft12345. 0104081081024...
  • Page 34 Full-Color LED Display Unit UD12230B...
