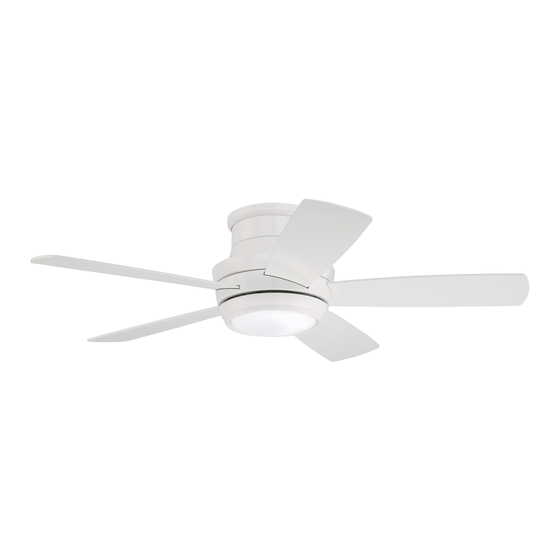

Tempo Hugger 44in.
Installation Guide
For Model:
TMPH44
E192641
net weight of fan: 18.58 lb (8.43 kg)
READ THESE INSTRUCTIONS
AND SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Mounting Plate Installation. pg. 4
Preparation for Wiring. pg. 5
Wiring. pgs. 5 - 6
Fan Assembly. pg. 6
Blade Assembly. pg. 7
Remote Control Operation. pg. 10
Testing Your Fan. pg. 10
Troubleshooting. pg. 11
Warranty. pg. 11
Parts Replacement. pg. 11
page 1
PRINTED IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Craftmade Tempo Hugger TMPH44
Summary of Contents for Craftmade Tempo Hugger TMPH44
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Tempo Hugger 44in. Installation Guide Table of Contents: For Model: Safety Tips. pg. 2 TMPH44 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Mounting Plate Installation. pg. 4 Preparation for Wiring. -
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that the hanging location allows the blades a inches 7 feet (76cm) clearance of 7ft. (2.13m) from the floor and 30in. (2.13m) (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 225 square 12 ft. -
Page 5: Preparation For Wiring
5. Preparation for Wiring. safety wood With wider opening facing up, place housing ring cable joist over top of motor housing. Then, push housing ring loop wood screw down past top edge of motor housing. and washer Lift motor housing to mounting plate and then hang motor housing on j-hook on underside of mounting plate. -
Page 6: Fan Assembly
6. Wiring. (cont.) Modifications not approved by the party responsible for compliance could void the user's authority to operate the equipment. [PLEASE NOTE: Wall and/or handheld remote *NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 7: Blade Assembly
8. Blade Assembly. WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to motor housing assemble the blades. If screws are overtightened, blades may crack and break. Time Saver: Washers for blade attachment screws can be set on each screw prior to installing blades. - Page 8 9. Light Kit Assembly (Optional). (cont.) Remove 1 screw from post on underside of fitter plate and partially loosen the other 2 motor screws. housing Connect WHITE wire from motor housing to WHITE wire from LED light kit. Connect BLACK fitter plate (or BLUE) wire from motor housing to BLACK wire from LED light kit.
-
Page 9: Assembly Of Handheld Remote Control
10. Assembly of Handheld Remote Control. IN ORDER TO USE THE HANDHELD REMOTE CONTROL, remote control PLEASE CONTINUE WITH SECTION 10 for remote control cover assembly instructions. If you have already installed the wall control but do not wish to use the handheld remote control, please proceed to Section 11. -
Page 10: Automated Learning Process./Activating Code
11. Automated Learning Process./Activating Code. CAUTION: The wall and/or handheld remote control can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other programmable receiver or fan. Restore electrical power and then, if using wall control, set slider switch on wall control to the ON position. -
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan/wall control. Return fan, shipping prepaid, to Craftmade. We will repair 2. Check to be sure wall control (optional use) is wired or ship you a replacement fan, and we will pay the return properly.
