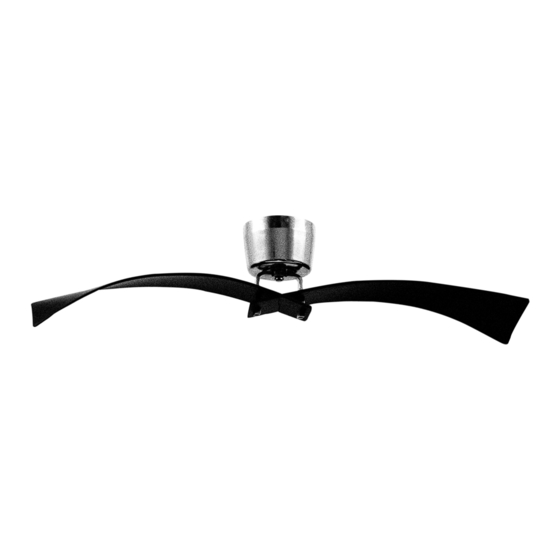

Tern
Installation Guide
For Model:
TRN52
WARNING:
DC Motor will not
operate until blades
are installed
net weight of fan: 12.35 lb (5.6 kg)
READ THESE INSTRUCTIONS
AND SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 6
Warranty. pg. 13
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tern TRN52 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade Tern TRN52

Summary of Contents for Craftmade Tern TRN52

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Tern Installation Guide For Model: Table of Contents: TRN52 Safety Tips. pg. 3 Unpacking Your Fan. pg. 4 Parts Inventory. pg. 4 Installation Preparation. pg. 5 WARNING: Mounting Plate Installation. pg. 5 DC Motor will not Preparation for Wiring.
  • Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house by supply using the remote control to turn the fan and light ON and OFF.

  • Page 3: Safety Tips

    Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning. Distributed by: Craftmade, 3901 S 20 Avenue, DFW Airport, TX, 75261; 800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.

  • Page 4: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.

  • Page 5: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) (2.13m) clearance of 7ft. (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.

  • Page 6: Preparation For Wiring

    5. Preparation for Wiring. safety cable wood joist loop wood screw To prepare fan for wiring, lift motor assembly to and washer mounting plate and then hang motor assembly on j-hook on underside of mounting plate. (Use one of the holes on the rim of the motor assembly or the short preassembled safety cable to do so.) This will allow motor assembly to hang out of the way while wiring.

  • Page 7: Fan Assembly

    7. Fan Assembly. Remove motor assembly from j-hook on mounting plate mounting plate. Then, raise motor assembly to mounting plate again, aligning holes in top plate of motor assembly with screws in mounting plate. flat washers IMPORTANT: Gap on top of motor lock nuts assembly must align with j-hook for the proper fit.

  • Page 8: Blade Assembly

    8. Blade Assembly. small blade large blade support support WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and blade blade break. Locate blade base and place on flat surface, with arms facing up.

  • Page 9: Automated Learning Process./Activating Code

    9. Automated Learning Process./Activating Code. CAUTION: The remote control can be REMOTE CONTROL programmed to multiple receivers or fans. If this is not (back) desired, turn wall switch off to any other programmable receiver or fan. Remove battery cover on back side of remote control transmitter.

  • Page 10: Remote Control Operation

    10. Remote Control Operation. REMOTE CONTROL I I I Fan SPEED buttons--1: Use to control ceiling fan speeds 1-6 Fan OFF button--2: Use to turn the fan off REVERSE function button--3: Use to control fan direction IMPORTANT : The Automated Learning Process takes approximately 5 minutes to complete. Please leave the fan “ON”...

  • Page 11: Activating Your Ceiling Fan Smart Features. Pgs

    11. Activating Your Ceiling Fan Smart Features. (Optional) To enjoy all your ceiling fan smart features (such as Breeze speed setting, Schedules, Voice Activation, and more) you must connect it to your Wi-Fi network. Please follow these steps: 1. Download the Bond Home App, available on the Google Play Store and Apple App Store, or use the QR code to download the app.

  • Page 12: Testing Your Fan

    12. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control. If the remote control operates all of the functions of the fan, battery has been installed correctly.

  • Page 13: Troubleshooting

    WARNING: Failure to disconnect power supply CRAFTMADE™ LIFETIME LIMITED WARRANTY: prior to troubleshooting any wiring issues may CRAFTMADE warrants this fan for use as intended under result in serious injury. the following provision: CRAFTMADE will replace any fan which has faulty performance due to a defect in material or workmanship or fails to operate satisfactorily when Problem: Fan fails to operate.
