Ethernet Cable Assembly and Pinouts
Ethernet Cable Assembly and Pinouts
This section describes the pinouts for an Ethernet AUI cable.

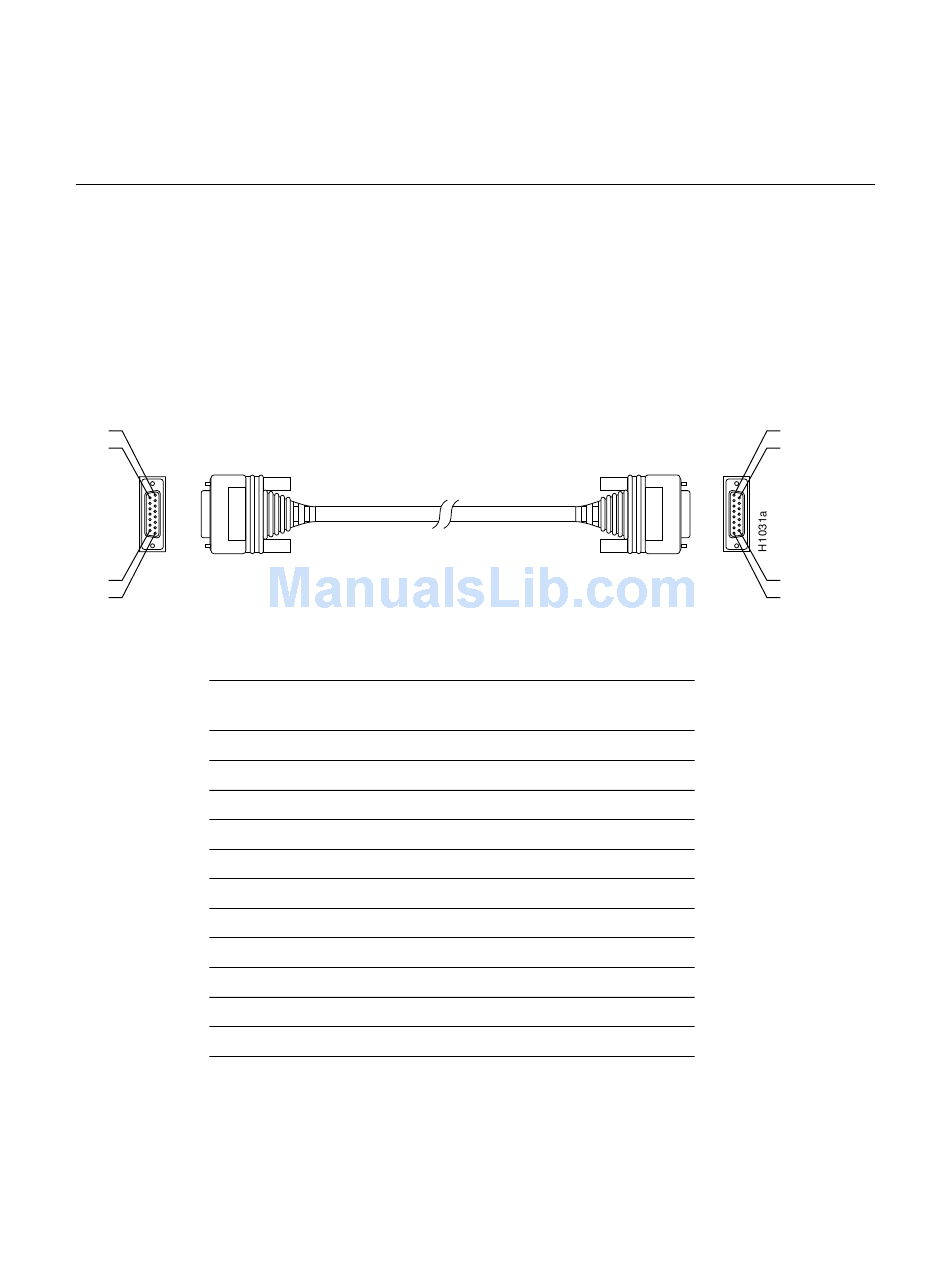

Figure C-5 shows an Ethernet AUI cable assembly, and Table C-4 lists the cable pinouts.
Figure C-5
J1-1
J1-9
J1
-15
J1-8
Table C-4
Pin
3
10
11
5
12
4
2
9
1
6
13
C-6 Router Installation and Configuration Guide
Ethernet AUI Cable Assembly
Ethernet AUI Cable Pinouts (DB-15)
Ethernet
Circuit Signal
DO-A Data Out Circuit A
DO-B Data Out Circuit B
DO-S Data Out Circuit Shield
DI-A Data In Circuit A
DI-B Data In Circuit B
DI-S Data In Circuit Shield
CI-A Control In Circuit A
CI-B Control In Circuit B
CI-S Control In Circuit Shield
VC Voltage Common
VP Voltage Plus
J2-1
J2-9
J2
J2-15
J2-8
