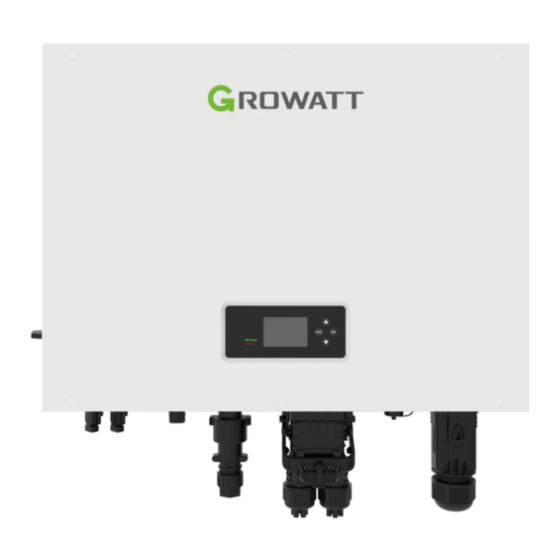

- Page 1 SPH 3000-6000 TL-HU Quick Guide Shenzhen Growatt New Energy Co.,Ltd.
- Page 2 Note: 1. The content of this document is continually reviewed and amended, where necessary. Growatt reserves the right to make changes to the material at any time and without notice. Unless otherwise agreed, this document is for quick installation guidance only. All information and suggestions in this document do not constitute a warranty of any kind, express or implied.
-
Page 3: Installation
2. Installation 1- 1 System overview Hybrid Inverter PV Array Battery Grid Breaker Breaker Electrical Grid Breaker Breaker Breaker Breaker Sensor Load Load Line Electric Meter Note: 1. When installing the hybrid inverter, you need to consider the position of the battery and the distribution panel. - Page 4 1- 1 Installation requirements ≥300mm ≥300mm ≥300mm ≥300mm 1- 1 Wall-mounted Step1: Determine the hole positions based on the position of the wall mount bracket and mark them with a marker. Step2: Dill holes with an electric drill to a depth of 55mm (hole diameter: 8mm). Step3: Install the expansion screws into the holes.
-
Page 5: Cable Connections
1- 1 Connecting the communication module The Inverter The Inverter Side Side Follow the installation steps: 1. Remove the waterproof cover from the USB port. 2. Plug in the communication module. 3. Secure the communication module. 3. Cable connections Please prepare the cables listed below before electrical connections. Recommended Cable name Type... - Page 6 1- 1 Grounding terminal Ground point 1- 1 Connecting and remove the EPS connector Connection termimal Locking Seal ring Anti-tamper cover Threadedsleeve Push the threaded sleeve into Secure the cables to the terminals the socket, then tightened the according to the correct polarity cap on the terminal The Inverter The Inverter...
- Page 7 1- 1 Connecting and remove the AC grid connector Connection Locking Seal ring and termimal Threaded sleeve Secure the cables to the terminals Insert the terminal into the according to the correct polarity sleeve Connect the Grid connector Rotate to tighten the nut to the inverter The Inverter Side Lock the housing...
- Page 8 1- 1 Connecting the DC input cables 3.4.1 Assembling the PV input connectors Positive connector Positive metal contact 8-10 mm Negative connector 8-10 mm Ensure that the cable cannot be Give the wire and crimp a slight Negative metal contact pulled out after being crimped.
- Page 9 3.4.3 Connecting the battery power cables Battery cable Sealing ring Waterproof cover BAT- BAT+ OT terminal Locking nut Threaded sleeve Installation steps are as follows: 1. Thread the battery power cables through the locking nut, waterproof rubber plug and the waterproof cover. 2.
- Page 10 3.4.4 Install the communication cables Meter1/CT1 DRMS Inbuilt Meter1 485-1/485-3 -COM+ 485-2 Meter1/CT1 Remove the two rotary nuts from the waterproof cover by turning them counterclockwise. Pull out the anti-tamper clip. Loosen the screws on the snap handle. Move the handle toward the inverter and remove the waterproof cover. Pass the external communication cable through the rotary nut, cable support sleeve and waterproof cover body in sequence.
- Page 11 Connect the RJ45 connector to the communication cable, and then insert it into the corresponding communication port on the inverter. Connect all communication cables that following steps 4-5. Align the waterproof cover with the positioning post, insert it into the base, and turn the buckle handle in the opposite direction of the inverter to tighten Tighten the screw on the handle.
-
Page 12: Post-Installation Check
4. Post-installation check Acceptance criteria Acceptance criteria The communication module The hybrid inverter is installed (ShineWiFi-X, ShineLink-X or correctly and reliably. Shine4G-X) is installed correctly and securely. Cable routing is proper and The ground cable is properly meets all requirements. No connected. -
Page 13: System Wiring Diagram
LOAD 6000TL-HU Inbuilt Meter GRID GRID Main Meter Australia Wiring Diagram 7. Service and contact Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao’an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com en.growatt.com... - Page 14 Download Manual Shenzhen Growatt New Energy Co., Ltd. 4-13/F, Building A, Sino-German (Europe) Industrial Park, Hangcheng Blvd, Bao’an District, Shenzhen, China +86 755 2747 1942 service@ginverter.com en.growatt.com.com GR-UM-436-A-00 (PN: 044.0123000)
