DAIHAN-Sci.com or ALL for LAB.com Shopping Mall
Certifications by
- - -
CE Marked Products.
ISO 9001 Certified.
PL Insurance.
Patented( No. 10-0554098) Jog Shuttle Control System.
Sales & Basic A/S :
By the Nearest Official Distributors.

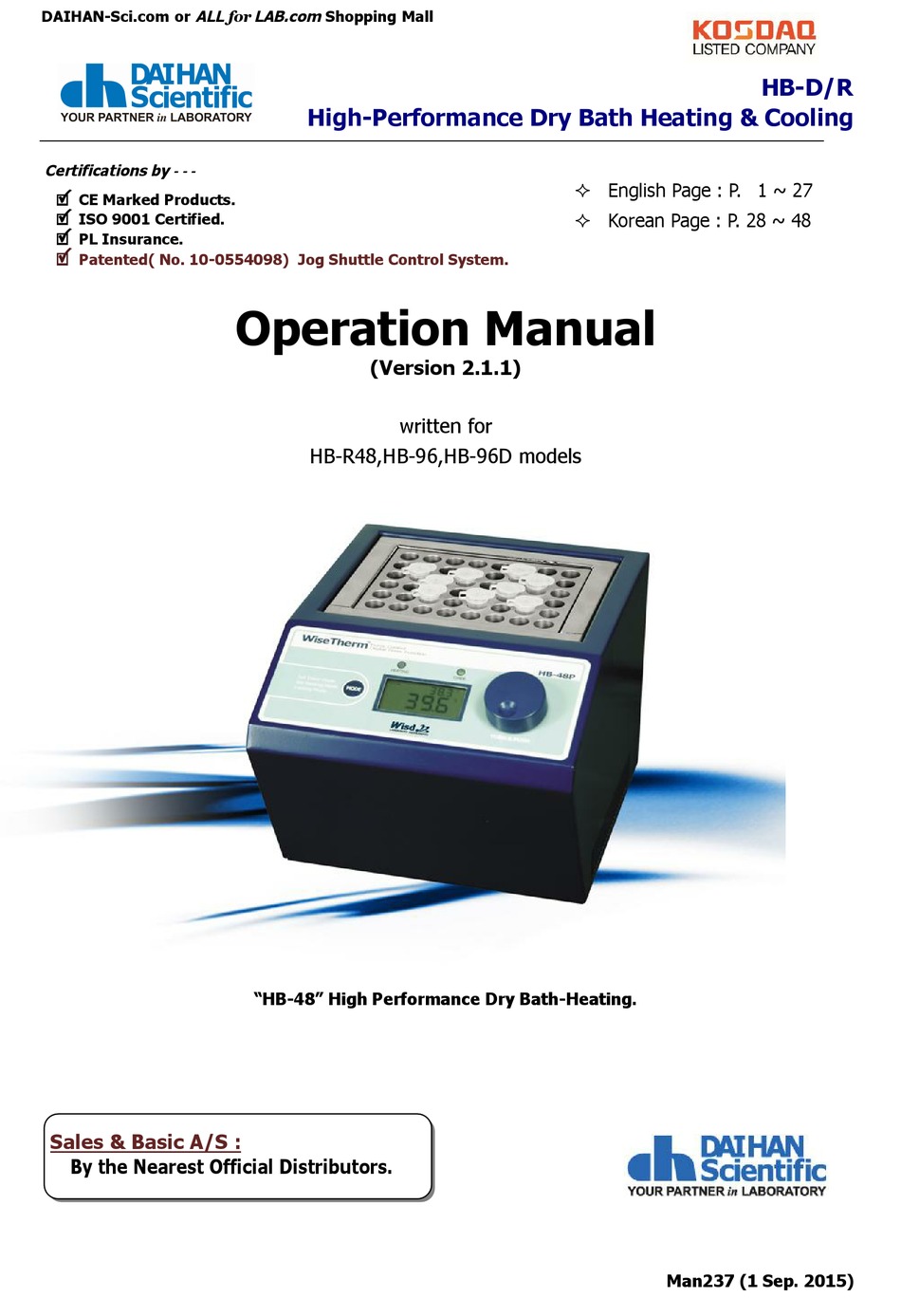

High-Performance Dry Bath Heating & Cooling
Operation Manual
(Version 2.1.1)
written for
HB-R48,HB-96,HB-96D models
"HB-48" High Performance Dry Bath-Heating.
² English Page : P. 11 ~ 27
² Korean Page : P. 28 ~ 48
Man237 (1 Sep. 2015)
HB-D/R
Advertisement
Table of Contents
Related Manuals for Daihan Scientific HB-R48
Summary of Contents for Daihan Scientific HB-R48
- Page 1 ² Korean Page : P. 28 ~ 48 PL Insurance. Patented( No. 10-0554098) Jog Shuttle Control System. Operation Manual (Version 2.1.1) written for HB-R48,HB-96,HB-96D models “HB-48” High Performance Dry Bath-Heating. Sales & Basic A/S : By the Nearest Official Distributors. Man237 (1 Sep. 2015)
- Page 2 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall European Declaration of Conformity We, DAIHAN Scientific Co., Ltd., 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea Tel: 82-2-967-5235, Fax: 82-2-967-5258 declare under our sole responsibility that the product Heating Block HB-96D to which this declaration relates is in conformity...
- Page 3 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall European Declaration of Conformity We, DAIHAN Scientific Co., Ltd., 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonju-si, Gangwon-do, Korea Tel: 82-2-967-5235, Fax: 82-2-967-5258 declare under our sole responsibility that the product Dry Bath - Heating & Cooling...
-
Page 4: Table Of Contents
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Contents Page 1. Safety Instructions ..............……..….. 2. Before Use ….................…..3. Introduction ..................4. Package Contents ..................11 5. Appearance and Naming ................12 6. Installation ....………………............13 7. Cautions in Use ………………............... 15 8. -
Page 5: Safety Instructions
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Safety Instructions Please read this carefully for the safety before using the unit. The indicated cautions are related to the safety and you should observe all safety and warning instructions. Symbols (Pictograms) and the meaning This symbol indicates caution This symbol indicates inhibition. - Page 6 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Do not handle the power cord harshly. Disconnection or short may cause if you bend or put a heavy thing on the unit. When you take a plug out in a wall socket, turn the power off and then take the plug out carefully.
- Page 7 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Do not operate the unit outside. Avoid areas where the sun shines or rain directly on the unit. It is very dangerous as cause over-heat or a short circuit. Do not install the unit where it can get damp or dust. It may be caused overheating, a short circuit or a fire by damp or dust inside of the unit.
- Page 8 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Do not put any objects insides. When an object that is easy to be combustible like a stone, a metal or paper goes inside, it may cause a fire, an electric shock or a break down. If do, pull out the mains plug from a socket and contact a manufacturer or a supplier.
-
Page 9: Before Use
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Before Use Thank you very much for purchase of HB-R48/96D High Performance Dry bath Heating and/or High Performance Dry Bath Heating & cooling. This operation manual describes performance, usage, cautions and notices for use of the purchased product. -
Page 10: Introduction
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Introduction Thank you for purchase of HB-R48/96D High Performance Dry bath Heating and/or High Performance Dry Bath Heating & cooling. HB-R48/96D High Performance Dry bath Heating and/or High Performance Dry Bath Heating &... -
Page 11: Package Contents
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Package Contents HB-96D unit ........................[ HB-R48 unit ........................[ 1.5ml Block[48 holes]( HB-R48-Set/ HB-96D-Set) ............[ Acrylic Lid (HB-R48-Set/ HB-96D-Set) ................[ Extraction Tongs[BLE101](HB-R48-Set/96D-Set) .............. [ Power Cord (HB-R48-Set/ HB-96D-Set) ................[ Manual ........................ -
Page 12: Appearance And Naming
Block for 1.5ml X 48tubes Digital LCD MODE Button Jog Shuttle Knob <Figure 1> The appearance of HB-R48-Set with Block for 1.5ml X 48tubes (Heating & Cooling function) <Figure 2> The appearance of HB-96D-Set with Block for 1.5ml X 48tubes X 2ea... -
Page 13: Installation
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Installation 1. After receiving the unit and putting it on the specified place of use, remove the wrapping. 2. Check the unit on eventual transport damages. In case there are some transport damages found please inform the forwarder and your contractor. - Page 14 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Do not use the unit at a place with high temperature. Do not operate the unit near a heater, blowing an air-conditioner. It may be caused an accident by over-heating. The unit should be set at a well ventilated place. Be sure the holes on the side or rear surface of the body are not blocked by a wall or an object.
-
Page 15: Cautions In Use
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Cautions in Use WARNING Be careful to operate the unit. You should read this manual carefully before using. The unit should only be operated by laboratory personnel especially trained for this purpose and familiar with all precautionary measures required for working in a laboratory. - Page 16 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Do not turn on and off frequently. It could damage the compressor by overload. CAUTION This unit must be connected to an earthed power supply. If the operating temperature is lower than the ambient temperature, the body could be hot because of the heat generated by the compressor.
-
Page 17: Controller Details
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Controller Details <Figure 3> Controller for HB-R48 model <Figure 4> Controller for HB-96D Model ① Digital LCD Screen ⑥ Mode Switch : Selection of main operation mode. ② Set Value (Refer to Table 1) ⑦... -
Page 18: Operation
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Operation 1. Preparation for Use l Put tubes on the block and then close the Lid(cover) l Connect the power cord then the Power Switch on. 2. Select Mode High Performance Dry Bath Heating & Cooling Block may be set to 3 individual modes by pushing MODE button(Refer to Figure 5). - Page 19 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Set Mode Upper Reading Lower Reading Timer Set Time Rest Time Set Time before Setting Delay Timer *d-tr Rest Time after Setting Temperature Set Temperature Current(Present Value) Temperature Offset Compensated Temperature Offset Locking Current(Present Value) Temperature Rest Time *d-tr(Delay timer mode) : indicate delay timer mode...
- Page 20 SV can be set in 0.1 ℃. Temperature Range : HB-48 / HB-96 / HB-96D → Ambient +5℃ ~ 150℃ ● HB-R48 → -5℃ ~ 95℃ When you finish Set Value, push Jog shuttle Knob 1 time shortly, the unit will be running ●...
- Page 21 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall First line of LCD indicate present value of temperature and the second line indicates present ● value of Operation Timer If you want to go to next mode(Timer Mode), push MODE button 1 time. ●...
- Page 22 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall If Reservation is set with timer mode together, the heater will not running in reservation time but the heater will be running when timer is running If Reservation is set without timer mode together, the heater will not running in reservation time, after finish reservation time, the heater will be running continuously.
-
Page 23: Accessories
DH.WHB30148 Validation Service(IQ,OQ), DBV148 for HB-48 model Optional DH.WHB30196 Validation Service(IQ,OQ), DBV196 for HB-96 model Optional DH.WHB30198 Validation Service(IQ,OQ), DBV198 for HB-96D model Optional DH.WHB30248 Validation Service(IQ,OQ), DBV248 for HB-R48 model Optional 23/48 High Performance Dry Bath Heating & Cooling... -
Page 24: Specifications
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Specifications 24/48 High Performance Dry Bath Heating & Cooling... - Page 25 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall 25/48 High Performance Dry Bath Heating & Cooling...
-
Page 26: Maintenance
DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Maintenance 1. Be sure to operate the unit only with the specified power supply (AC 120, 60Hz or AC 230V, 50/60Hz, Single phase) 2. Do not use this unit when temperature fall below 5°C and rise above 40°C. 3. -
Page 27: Certificate
4. This certification is only for international customers. Item High Performance dry bath Heating & Cooling Model No. Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea Tel : +82 2 967 5235 Fax : +82 963 5231 email : info@daihansci.co.kr -Sci.com www.DAIHAN...
