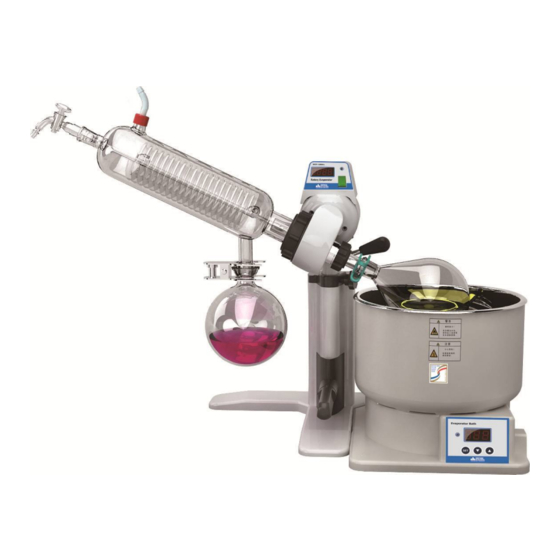

Digital Rotary Evaporator, Diagonal-type
" WEV-1001L"
Sales & Basic A/S :
By the Nearest Official Distributors.
User Manual
(Version 2.2.1)
written for
WEV-1001V/-1001L Models
Digital Rotary Evaporator
English Page : P. 11 ~ 27
Korean Page : P. 28 ~ 55
Digital Rotary Evaporator, Vertical-type
" WEV-1001V"
Man. 227 (20 Jun. 2016)
Advertisement
Table of Contents
Related Manuals for Daihan Scientific WEV-1001V
Summary of Contents for Daihan Scientific WEV-1001V

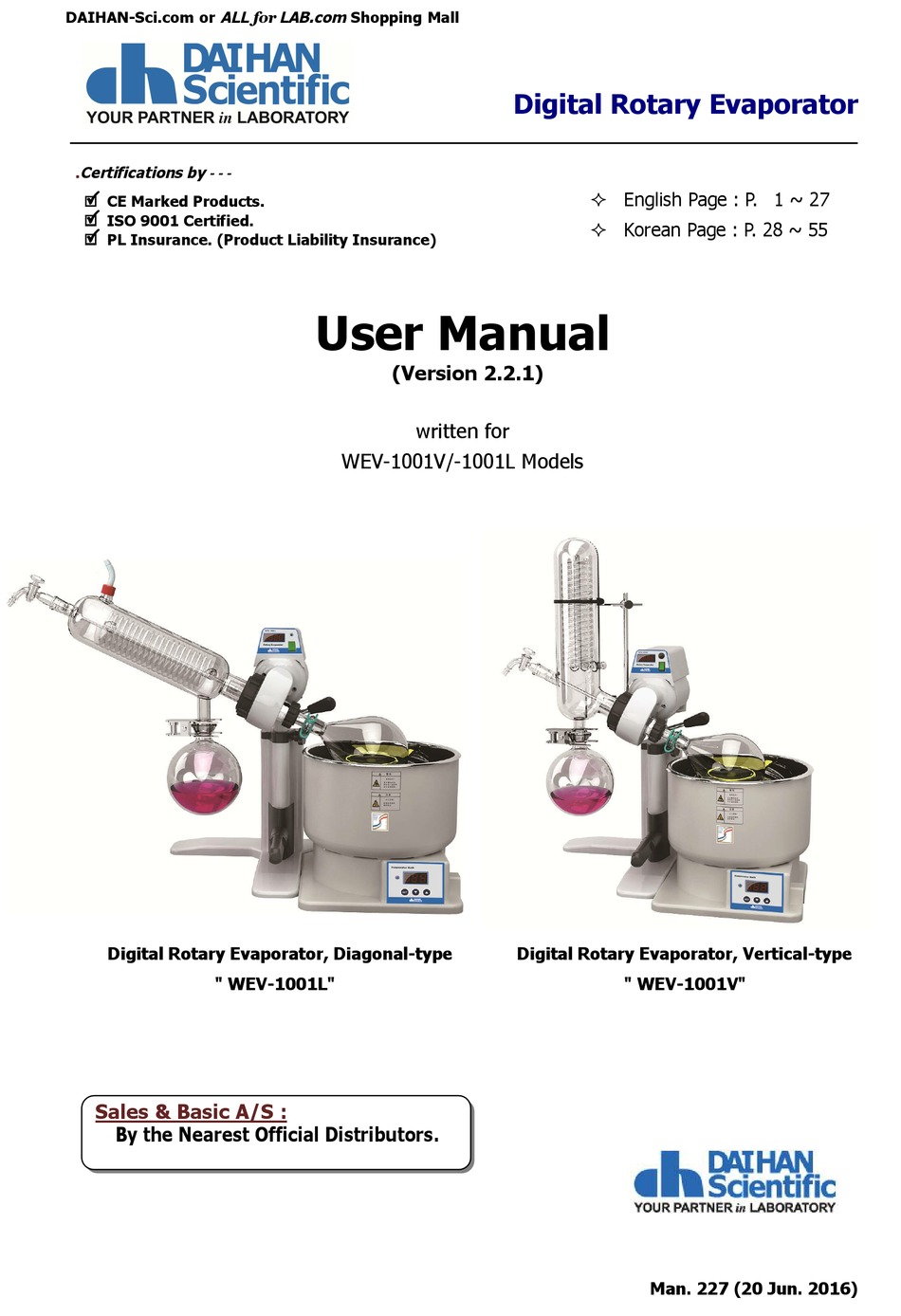

- Page 1 ISO 9001 Certified. Korean Page : P. 28 ~ 55 PL Insurance. (Product Liability Insurance) User Manual (Version 2.2.1) written for WEV-1001V/-1001L Models Digital Rotary Evaporator, Diagonal-type Digital Rotary Evaporator, Vertical-type " WEV-1001L" " WEV-1001V" Sales & Basic A/S : By the Nearest Official Distributors.
-
Page 2: Table Of Contents
3.2 Names of Each Part ................. 22 3.3 Usage Instructions .................. 24 4. Products Management Methods 4.1 Maintenance and Management ..............25 4.2 Troubleshooting ..................26 5. Product Assurance 5.1 Quality Assurance ..................27 DAIHAN Scientific, Digital Rotary Evaporator 2/55... -
Page 3: General
This symbol indicates power “OFF” on the power on/off switch. This symbol indicates power “ON” on the power on/off switch. This symbol indicates the connection point of the neutral conductor on the installed unit. This symbol indicates alternating current Voltage. DAIHAN Scientific, Digital Rotary Evaporator 3/55... -
Page 4: Product Introduction
11. Because the temperature of bath can be set up to 99 , various setting according to the purpose of the experiment is possible. 12. The rotation speed can be adjusted up to 180rpm, and the reduction and acceleration of speed depending on the purpose of use is possible. DAIHAN Scientific, Digital Rotary Evaporator 4/55... -
Page 5: Product Configuration
This is the product which requires assembly. Including a copy of the Operation Manual * Model WEV-1001V : Digital Rotary Evaporator, Vertical-type, 1Lit. WEV-1001L : Digital Rotary Evaporator, Diagonal-type, 1Lit. WEV-1005 : Digital Rotary Evaporator, Large Capa, 5Lit. WEV-1010 : Digital Rotary Evaporator, Large Capa, 10Lit. -
Page 6: Installation
Product Liability (PL) Insurance Admission DAIHAN Scientific (Co., Ltd.) is a member of Product Liability Insurance (PL Insurance), so that its customers can trust our products, (believe and use its products,) by preparing against the accident which can be occurred during using the products by self-production. - Page 7 Assembly of Product (WEV-1001L) (11) (12) (10) Picture Name Main Body & Bath 1 Unit Glass Feeding Valve 1 ea Glass Condenser 1 ea Clamp for Receiving Bottle 1 ea Glass Receiving Bottle 1 ea DAIHAN Scientific, Digital Rotary Evaporator 7/55...
- Page 8 Please be careful, because there is the risk of breakage during opening the package of glass products. Please pay attention to management, because there is the loss risk of the component for assembling after unpacking. DAIHAN Scientific, Digital Rotary Evaporator 8/55...
- Page 9 Bottle opener, fix by inserting a driver into the hole in the axis of rotation of the main body, and then please, insert it while turning the Bottle opener to the right. (Proceed as the direction of the arrow referring to the Figure.) DAIHAN Scientific, Digital Rotary Evaporator 9/55...
- Page 10 Main Vacuum Seal is mounted, after mounting a Main Vacuum Seal entirely up to the inside. Insert Deputy Vacuum Seal in the direction that the adhered tightening part is facing the outside as shown in Figure. DAIHAN Scientific, Digital Rotary Evaporator 10/55...
- Page 11 Main Body by turning the Condenser Locknut so that the entrance part of a previously installed Deputy Vacuum Seal and the Condenser are in contact. At this time, the Collecting portion of Condenser should be facing downward. DAIHAN Scientific, Digital Rotary Evaporator 11/55...
- Page 12 Glass Receiving Bottle, replace the Bottle by loosening the combined adjusting screw of the Clamp, again. 12. Insert the assembly part of Feeding Valve Connecting Tube (14) into the assembly part of Glass Feeding Valve (1). DAIHAN Scientific, Digital Rotary Evaporator 12/55...
- Page 13 When adjusting the bar toward FREE side, since the Main Body is automatically moved upward, be careful so that the accident caused by sudden movement is not occurred, and please hold the top of the main body with your hand very hard and adjust. DAIHAN Scientific, Digital Rotary Evaporator 13/55...
- Page 14 (Slightly highly set up the axis of Main Body before adjusting the tilt, and then please adjust the tilt. If the height of the axis is low adjusted, the engagement of the product can be occurred.) DAIHAN Scientific, Digital Rotary Evaporator 14/55...
- Page 15 Figure. Adjust and install the tightening part at the mounting portion of three places of the Vacuum Nozzle in the Condenser. 18. Check whether all the assembly components are correctly put together. DAIHAN Scientific, Digital Rotary Evaporator 15/55...
- Page 16 DAIHAN-Sci.com or ALL for LAB.com Shopping Mall Assembly of Product (WEV-1001V) Picture Name Glass Condenser Bracket 1 ea Setscrew of Bracket Rod 1 ea * WEV - 1001V Model has vertical type Glass Condenser. In case of contents, are same with WEV-1001L Model and additionally Glass Condenser Bracket is included (Which is marked "*"...
- Page 17 2. After checking the components as shown in above Picture, insert the rod part of Glass Condenser Bracket into the Main Body, and please, tighten the setscrew, after checking that the position of the rubber band wrapping the Condenser is appropriate. DAIHAN Scientific, Digital Rotary Evaporator 17/55...
- Page 18 Manipulate so that the Condenser is wound by the rubber band, and then please, assemble the locking device as shown in the Picture. 4. Check whether all the assembly components are correctly put together. Pump DAIHAN Scientific, Digital Rotary Evaporator 18/55...
-
Page 19: Product Specifications
Bath Heater : 1.05kW Controller & Display PID Controller, Digital display Dimension & Net Weight 750 X 320 Xh540mm / 9.5kg 560 X 320 Xh660mm / 9.5kg Power Supply & Cord Plug 230V, 50/60Hz DAIHAN Scientific, Digital Rotary Evaporator 19/55... -
Page 20: Product Usage
Please do not adjust and move the tilt and the height of axes of the glass product such as Condenser and Bottle during operation. Please do not operate in the condition that explosive or flammable chemicals (alcohol, benzene and other flammable solvent) are put inside the Bath. DAIHAN Scientific, Digital Rotary Evaporator 20/55... - Page 21 ※ All of the circuits, electrical or mechanical parts and configurations used in this product are the technical assets of DAIHAN Scientific (Co., Ltd.). Only technicians of the technical support team at DAIHAN Scientific (Co., Ltd.) or technicians approved through the education from DAIHAN Scientific should be allowed to repair this product.
-
Page 22: Names Of Each Part
Extract collect Flask ⑤ Rotary Bottle Rotary Flask ⑥ Water Bath reactant Heating ⑦ Bath Power Connection Bath Power Cord Apply ⑧ Bath Power Switch Bath Power ON/OFF <Table.3.2.1> Names of each part and description DAIHAN Scientific, Digital Rotary Evaporator 22/55... - Page 23 Display the heating operating temperature of Bath. ⑦ Down Button of Set point Lowers the Value of Heating Temperature. ⑧ Up Button of Set point Raise the Value of Heating Temperature. <Table 3.2.2> Controller for WEV-1001L/V DAIHAN Scientific, Digital Rotary Evaporator 23/55...
-
Page 24: Usage Instructions
"button, the value drops. Adjust the value that you want to heat, and to press SET button, the flashing of Display is stopped and the heating operation is started and indicates the current temperature. DAIHAN Scientific, Digital Rotary Evaporator 24/55... -
Page 25: Products Management Methods
- Cleaning Method of the Exterior Clean the exterior using a neutral detergent and soft cloth. Do not clean the unit aggressively. Otherwise, the coating or painting could be damaged. DAIHAN Scientific, Digital Rotary Evaporator 25/55... -
Page 26: Troubleshooting
If the rotation is disabled Check that there are no problems in the power supplied. Check load capacity. ※ If you have any problem other than the above, please call technical service of manufacturer or an official agent. DAIHAN Scientific, Digital Rotary Evaporator 26/55... -
Page 27: Product Assurance
Model No. Serial No. Date Customer DAIHAN Scientific Co., Ltd. 326, Sinpyeongseokhwa-ro, jijeong-myeon, Wonj-si, Gangwon-do, Korea Tel : +82 2 967 5235 Fax : +82 963 5231 email : info@daihansci.co.kr -Sci.com www.DAIHAN www.ALL for LAB.com DAIHAN Scientific, Digital Rotary Evaporator 27/55...
