QTCR WATER FILTRATION SYSTEMS
INSTALLATION AND OPERATION GUIDE
For QTCR Series Models: QTCR-1, QTCR-2, QTCR-3, QTCR-4, QT1+CR, QTI1+CR (Reduces particulates, chloramines and chlorine
taste and odors.)
QTCR-2
170-52132
PENTAIR® EVERPURE® QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE
QTCR-3
170-52133
QT1+CR
170-52080 (1/2" NPT I/O)
170-52090 (3/4" NPT I/O)
QTCR-4
170-52134
QTI1+CR
170-52081 (1/2" NPT I/O)
170-52091 (3/4" NPT I/O)
foodservice.pentair.com
Advertisement
Related Manuals for Pentair EVERPURE QTCR
Summary of Contents for Pentair EVERPURE QTCR

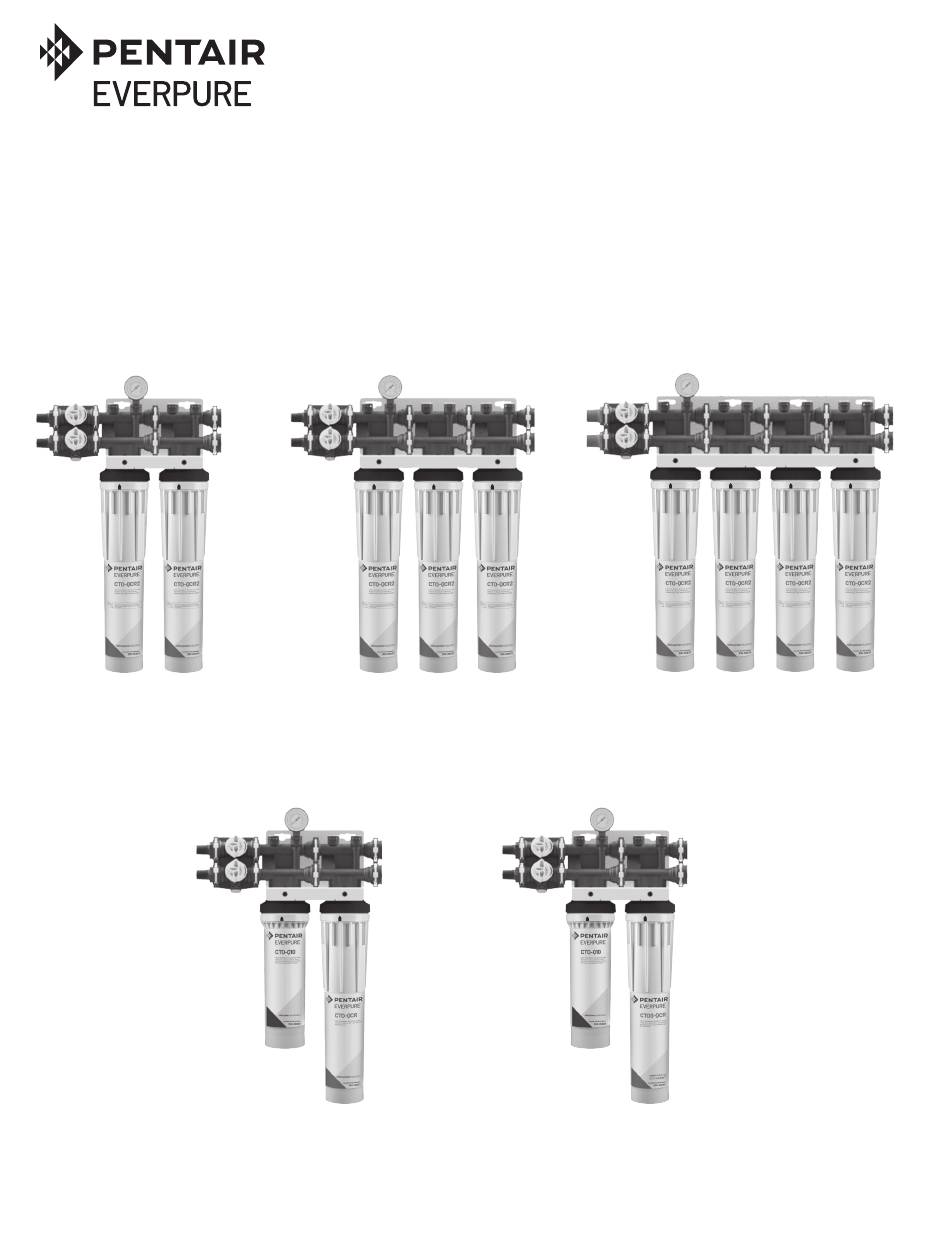

- Page 1 For QTCR Series Models: QTCR-1, QTCR-2, QTCR-3, QTCR-4, QT1+CR, QTI1+CR (Reduces particulates, chloramines and chlorine taste and odors.) QTCR-2 QTCR-3 QTCR-4 170-52132 170-52133 170-52134 QT1+CR QTI1+CR 170-52080 (1/2" NPT I/O) 170-52081 (1/2" NPT I/O) 170-52090 (3/4" NPT I/O) 170-52091 (3/4" NPT I/O) PENTAIR® EVERPURE® QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE foodservice.pentair.com...
-
Page 2: Operating Specifications
30,000 gals. (113,550 L) Flow Rate: 3.4 gpm (12.9 lpm) Flow Rate: 5.1 gpm (19.3 lpm) Model QTCR-4 Capacity: 40,000 gals. (151,400 L) Flow Rate: 6.8 gpm (25.7 lpm) 2 • PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE... -
Page 3: Installation Precautions
33°F. REPLACEMENT FILTER CARTRIDGES Pentair Everpure Filter Systems are designed, tested, and certified with Pentair Everpure filter cartridges with proven performance, size and operating capacities. Use of replacement cartridges other than those specified will void warranties, certifications and may compromise equipment protection, water quality and cartridge life. -
Page 4: Installation Procedure
Improper piping/tubing support can cause undesired stress and fatigue on plastic fittings of Pentair Everpure system causing system failure. 4 • PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE... - Page 5 MULTI-FUNCTION VALVE This Pentair Everpure manifold system includes a multi-function valve that allows the system's water to flow through the system (Operating Position), to be blocked from the system (Off Position), or diverted from the filters (Bypass Position).The white handles on the valve provide a clear indication of the water flow path in each position.
- Page 6 Alternate Outlet Locations: The Pentair Everpure Manifold System can be flexible with treated water outlet locations. The outlet fitting can be relocated to the other end of the Manifold System if the Inlet and Outlet need to be on opposite sides of the system.
-
Page 7: Filter Cartridge Replacement Procedure
If the system sizing recommendations have been followed the Pentair Everpure system is designed to provide a six (6) month filter replacement interval on most tap water. PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE • 7... - Page 8 5. Turn Multi-Function Valve to the Operating position and check for leaks. 6. Open the ball valve on the Flush Valve Assembly to verify water flushing. Turn the ball valve off when flushing is complete. 8 • PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE...
-
Page 9: Performance Data Sheet
* Chlorine reduction claim based on chloramine reduction testing. All contaminant reduction claims are valid only if actual flow rates do not exceed the rated flow. While testing was performed under the standard laboratory conditions, actual performance may vary due to local water conditions. PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE • 9... - Page 10 10 • PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE...
- Page 11 PENTAIR EVERPURE QTCR WATER FILTRATION SYSTEMS INSTRUCTION AND OPERATION GUIDE • 11...
- Page 12 Southeast Asia | 390 Havelock Road, | #04-01 King’s Centre | Singapore 169662 | 65.6768.5800 Tel | cseverpure@pentair.com All indicated Pentair trademarks and logos are property of Pentair. Third party registered and unregistered trademarks and logos are the property of their respective owners.
