INTRODUCTION
The Everpure Conserv 75S System is a pre-engineered, pre-assembled solution designed to provide high purity water for
steam applications. It combines a number of water treatment technologies into one easy-to-install package. The system
provides reduction of sediment. It also limits corrosion* and scale* by reducing TDS, chlorine* and chloramines*.
INSPECTION

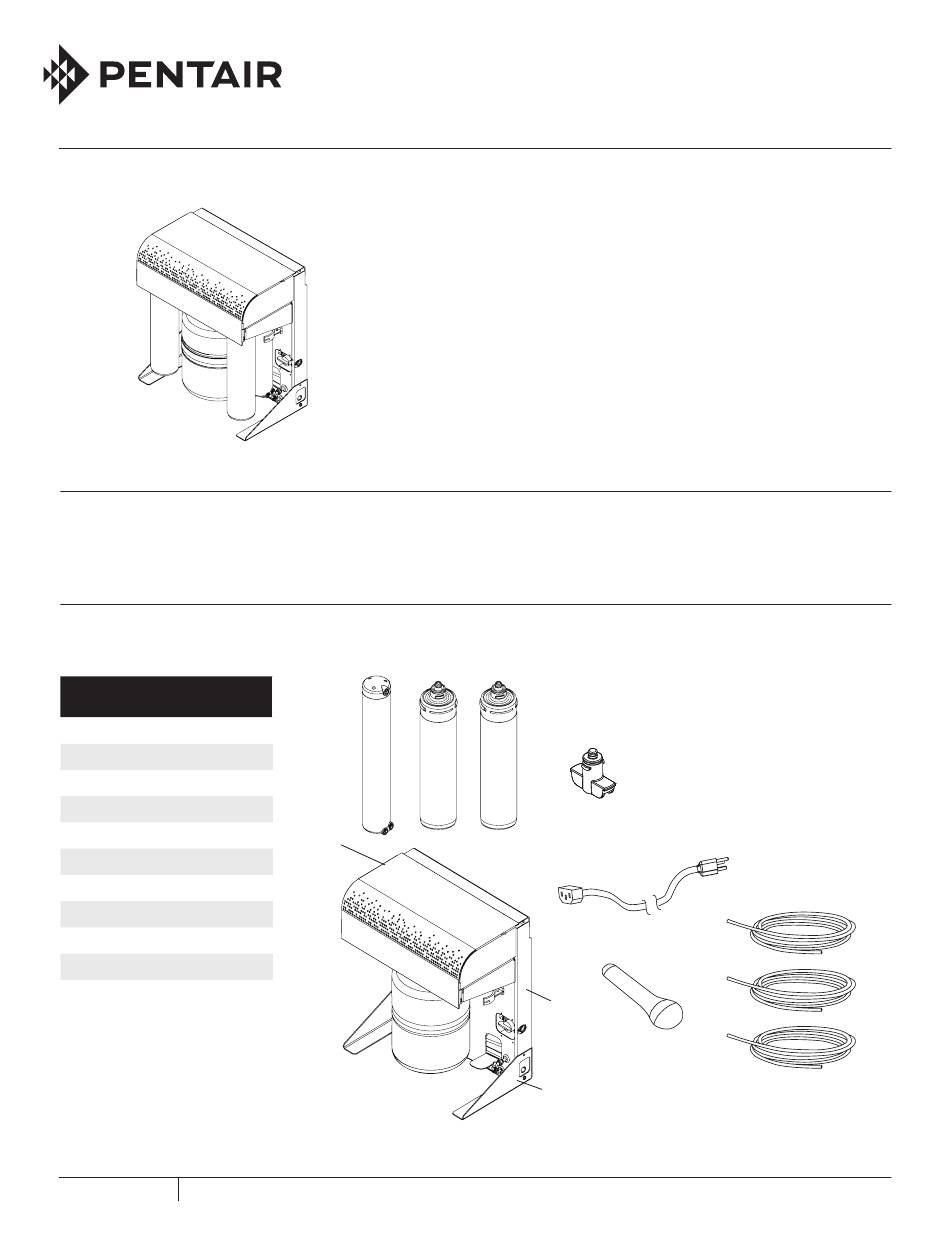

Before mounting the Conserv 75S System, inspect the parts. Use the table and illustration provided to verify the parts and
quantities provided. If any parts are missing, contact Customer Service at 800.942.1153 (US only)/630.307.3000 or by email at
CSeverpure@pentair.com.
Parts
1. Back Panel Assembly
2. GRO-75EN RO Membrane Cartridge
3. 4CC Mineral Cartridge
4. 4FC5 Filter Cartridge
5. Cover
6. Port Plug
7. TDS Meter
8. Support Leg
9. Power Cord
10. Blue, White and Red Tubing
* Not performance tested or certified by NSF
FOODSERVICE
EVERPURE
ORIGINAL INSTRUCTIONS
75S HIGH EFFICIENCY REVERSE OSMOSIS (RO) SYSTEM
®
Conserv 75S
EV9976-00 (US Market)
EV9976-01 (European Market)
EV9976-02 (British Market)
EV9976-03 (Australian Market)
2
3
5
®
CONSERV
75S HIGH EFFICIENCY RO SYSTEM INSTALLATION AND OPERATION GUIDE
®
®
4
6
9
1
7
8
10
Advertisement
Table of Contents
Related Manuals for Pentair EVERPURE CONSERV 75S
Summary of Contents for Pentair EVERPURE CONSERV 75S
- Page 1 EV9976-03 (Australian Market) INTRODUCTION The Everpure Conserv 75S System is a pre-engineered, pre-assembled solution designed to provide high purity water for steam applications. It combines a number of water treatment technologies into one easy-to-install package. The system provides reduction of sediment. It also limits corrosion* and scale* by reducing TDS, chlorine* and chloramines*.
-
Page 2: Selecting A Mounting Location
Tools Required SAFETY INSTRUCTIONS NOTE: This appliance can be used by children aged from eight (8) years and above and persons • Hand or Electric Drill • Phillips Screwdriver with reduced physical, sensory or mental • Air Pressure Gauge • Towel capabilities or lack of experience and •... -
Page 3: Operating Specifications
WARNING: Before installing the system, make certain NOTE: Do not install where system will be exposed to your water supply complies with the direct sunlight. following operating specifications. Failure NOTE: Make certain that installation complies with all to do so may reduce the effectiveness of state and local laws and regulations. - Page 4 EVERPURE CONSERV 75S SYSTEM ® Secure Manifold Wall Mount Tubing Locations Power Cord Product Water 53 lbs 3/8" Tubing to the (24 kgs) Application NOTE: Feet may be removed. Waste Water 1/4" Tubing to Drain Supply Water In 3/8" Tubing EVERPURE CONSERV 75S HIGH EFFICIENCY RO SYSTEM INSTALLATION AND OPERATION GUIDE...
- Page 5 Install Pentair GRO-75EN RO Membrane Cartridge ® White GRO-75EN Blue Install Everpure 4CC Mineral and 4FC5 Filter Cartridges 3/16” 90° EVERPURE CONSERV 75S HIGH EFFICIENCY RO SYSTEM INSTALLATION AND OPERATION GUIDE ® ®...
- Page 6 Connect Tubing and Power Power Cord Blue 3/8" Tubing to Application Valve Red 1/4" White 3/8" Tubing Tubing to from Water Supply Drain PUT SYSTEM INTO OPERATION - QUICK START Flush Everpure 4FC5 Cartridge ® Remove Plug Install Plug Closed Insert 3/8"...
- Page 7 Flush GRO-75EN RO Membrane Cartridge Open Tank Valve Power On Power Off Open Closed Insert 3/8" Tubing Closed Open Flush for 24 Hours Final Flush Power On Close for 30 Minutes When Pump Stops, Open for Five (5) Minutes. Repeat Four (4) Times NOTE: During the final flush, the storage tank and the 4CC Mineral Cartridge are flushed.
- Page 8 Set Blending Valve Power Open Open Blending Valve Closed Press 1/4 Turn Solid Blue Blending Valve 2" Press 1/4 Turn Solid Blue Blending Valve 2" 1/8 Turn Flashing Blue Repeat Until Blending Valve EVERPURE CONSERV 75S HIGH EFFICIENCY RO SYSTEM INSTALLATION AND OPERATION GUIDE ®...
-
Page 9: Installation
HOW REVERSE OSMOSIS (RO) WORKS Secure Manifold Wall Mount The Everpure Conserv 75S System uses a semi-permeable The Conserv 75S System weighs approx. 53 lbs (24 kgs). membrane to reduce scale and corrosion. The RO membrane cartridge contains multiple layers of micron-thin film wound CAUTION: The Conserv 75S System should be mounted on around a hollow center core. -
Page 10: Installing The Cartridges
Remove 4. Connect the appropriate size and type of tubing/piping Cover Screw and associated fittings to the Everpure Conserv 75S System outlet connection. Route the line(s) to the equipment being serviced. CLOSE the inlet and outlet valves on the RO system. Reapply pressure to the plumbing by slowly OPENING the shut-off valve that was closed in the previous step. -
Page 11: Putting The System Into Operation
1. Remove the GRO-75EN RO Membrane Cartridge from its packaging and position it with the single white port at the top. NOTE: The top cover of the Conserv 75S System must be removed. 2. Slide the cartridge into position through the back of the top support. - Page 12 NOTE: The Everpure Conserv 75S System does not ® ® Flush the Pentair GRO-75EN RO Membrane produce a high volume of water on-demand as an ® Cartridge: ordinary filter does. Water is produced at a slow, drop-by-drop rate. The system requires about 30 Tank Valve minutes to fill the storage tank.
-
Page 13: Testing Your Reverse Osmosis System
• If the meter showed any other indicator, then the Set Blending Valve mixing valve will be CLOSED more. The water exiting the Everpure Conserv 75S System should 5. Adjust the mixing valve if needed and run blended water have a TDS reading of 75 ppm. -
Page 14: Changing The Cartridges
Flow Replacement Cartridges: Controller Everpure 4FC5 Filter Cartridge - EV9693-21 Everpure 4CC Mineral Cartridge - EV9627-45 Pentair GRO-75EN RO Membrane Cartridge - 4002575 ® The 4FC5 and 4CC Cartridges need to be changed when the Figure 10 water pressure at the application equipment valve begins to drop noticeably or if there are changes in the flow of the 8. - Page 15 EVERPURE CONSERV 75S SANITIZING PROCEDURE - 5. Lubricate o-ring with a high quality silicone lubricant. Replace the central plug assembly and insert the flushing CONTAMINATED WATER SUPPLY/BOIL ALERTS cartridge into the right side head for the Everpure 4FC5 When the water system has been contaminated or a boil Cartridge.
-
Page 16: Troubleshooting
26. CLOSE the water supply valve and OPEN the application 8. Allow system to pressurize for several hours and check valve to remove pressure. for leaks. 27. Remove the tubing that connects the Pentair GRO-75EN 9. Check for leaks after tank is fully pressurized [one (1) to ®... -
Page 17: Replacement Parts
This will REPLACEMENT PARTS force the water out of the storage tank through the valve. Contact your local Pentair Everpure Dealer for filter ® Continue to slowly add air until water stops coming out cartridges or system replacement parts. - Page 18 EVERPURE CONSERV 75S HIGH EFFICIENCY RO SYSTEM INSTALLATION AND OPERATION GUIDE ® ®...
-
