Summary of Contents for Bartscher BW10

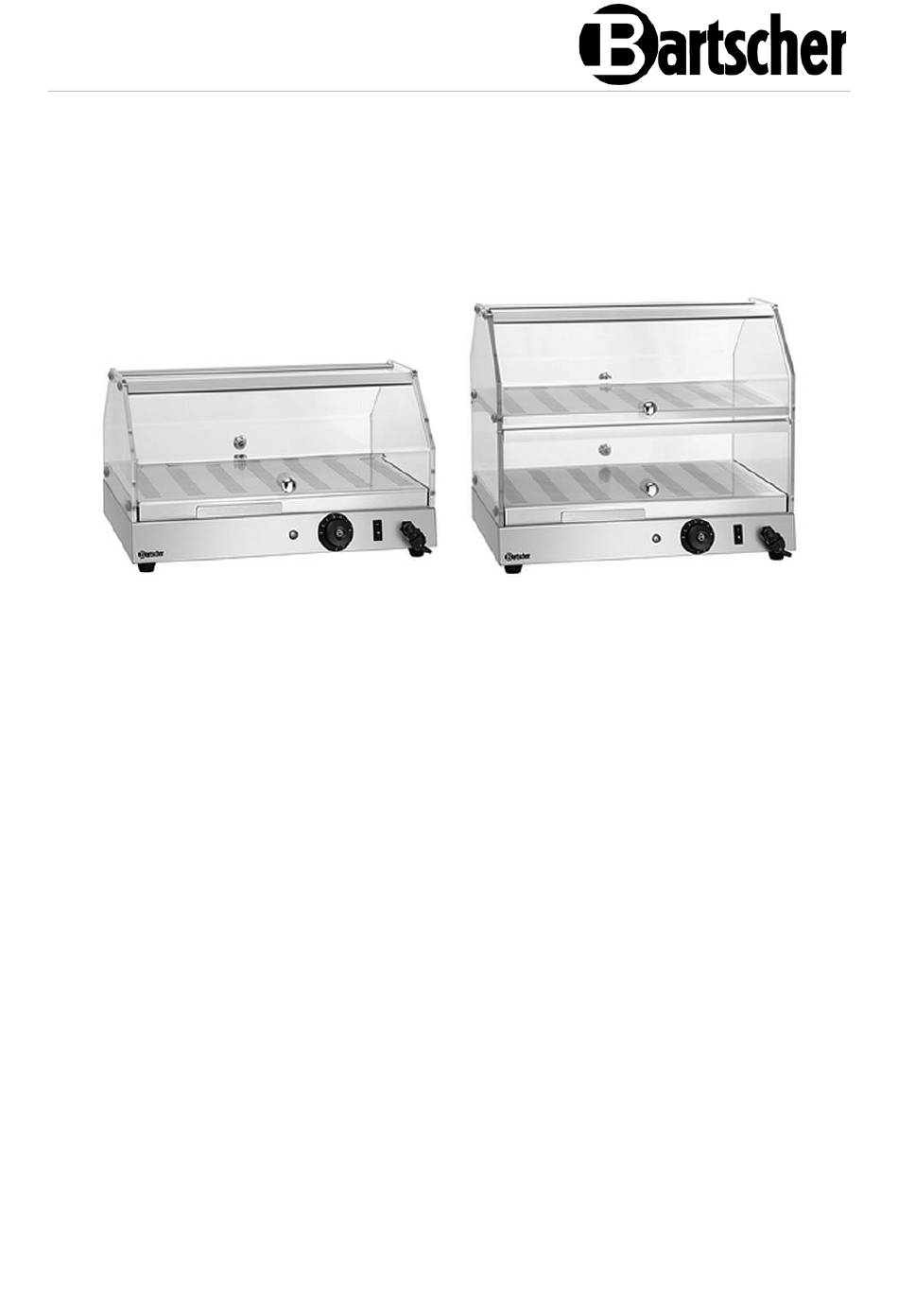

- Page 1 BW10 - BW20 A203112 - A203113...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-06-18...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle un d N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Keeping the baked goods warm. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
• ON/OFF switch • Indicator lights: heating-up, ON/OFF • Characteristics: heating of the lower level Name: Heated display unit BW10 A203112 Art. No.: Material: CNS 18/10 | perspex Display area material: 475 x 335 Display area dimensions (W x D), in mm:... -
Page 12: Functions Of The Appliance
Technical Data Name: Heated display unit BW20 A203113 Art. No.: Material: CNS 18/10 | perspex Display area material: 475 x 335 Display area dimensions (W x D), in mm: CNS 18/10 Number of levels: Shelves dimensions (W x D), in mm: 475 x 335 Internal height, bottom in mm: Internal height, top in mm:... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Hinged door with a handle from the 2. Power cord service side 3. ON/OFF switch with integrated 4. Temperature controller power indicator light (red) 5. Heating-up indicator light (green) 6. - Page 14 Technical Data Fig. 2 1. Hinged door with a handle from the 2. Power cord service side (2x) 3. ON/OFF switch with integrated 4. Temperature controller power indicator light (red) 5. Heating-up indicator light (green) 6. Water tray for air humidification 7.
-
Page 15: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 16: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 17 Installation and operation • Reinigen Sie das Ger ät und Zubehörteile vor dem Gebrauch gründlic h nac h den Anweis ungen im Absc hnitt 6 „R einigung“. Uw aż ać, aby do ins tal acji elek trycz nej i skrzy nki rozdzi elcz ej ni e dostała się w oda. Trocknen Sie das Ger ät und Zubehörteil e gründlic h ab! •...
- Page 18 Installation and operation Keeping the baked goods warm. Fig. 4 4. Open the the hinged door on the service side. 5. Place the required products in the display area or on the display unit shelf. 6. Close the hinged door. The baked goods will be kept warm, at the set temperature, and for the required period.
-
Page 19: Cleaning
Cleaning Switching the appliance off 1. Remove all dishes if the appliance is no longer to be used. 2. Rotate the temperature controller to '0' position (OFF). 3. Switch the appliance off with the ON/OFF switch (by switching it to 'O' position). 4. -
Page 20: Cleaning
Disposal Cleaning 1. Clean the appliance regularly at the end of a working day, and, if necessary, also in the meantime or when the appliance is not to be used for a longer time. 2. Remove food from the appliance. 3.
