Summary of Contents for Bartscher BF 16E

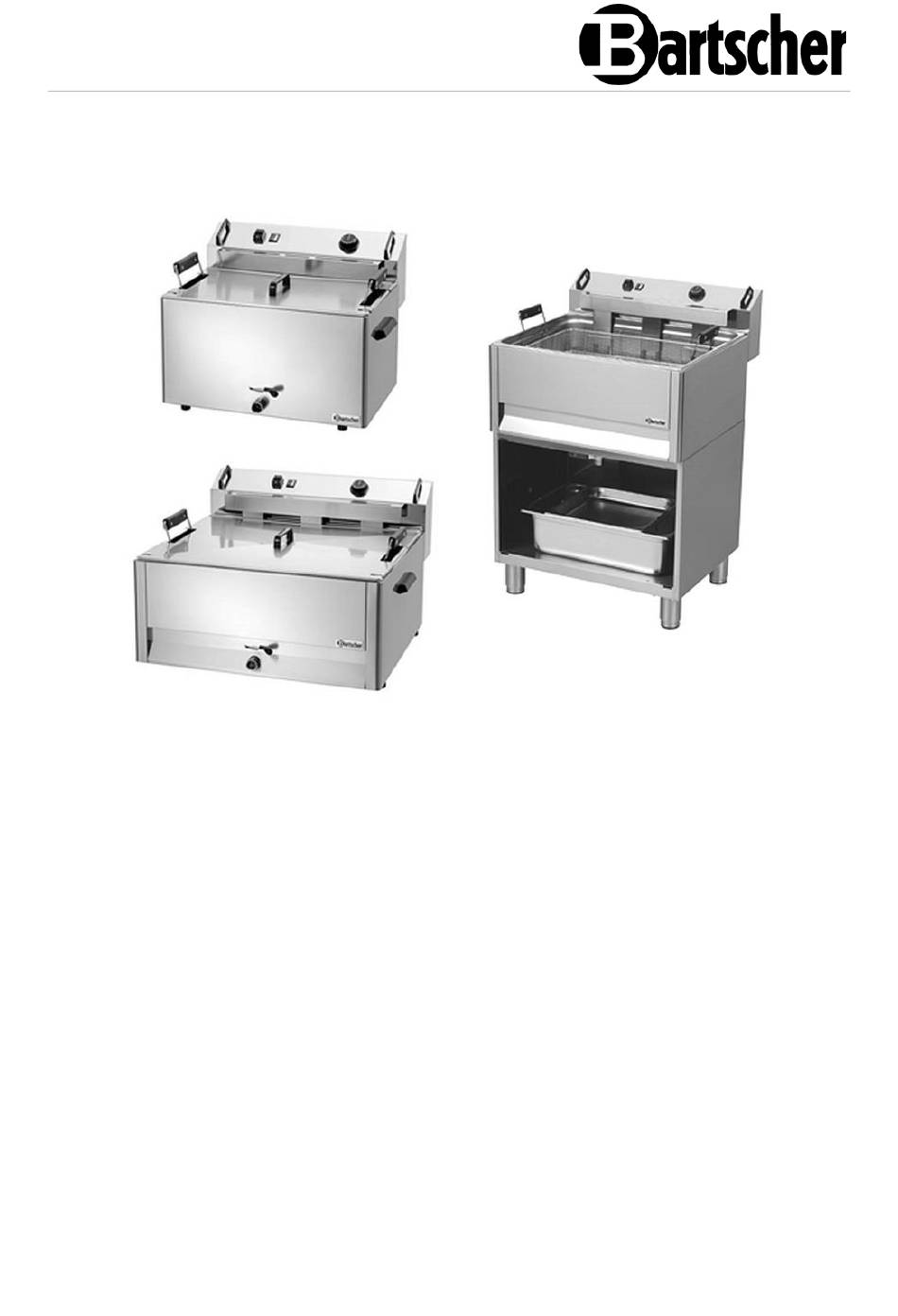

- Page 1 BF 16E - BF 30E - BF 30E-OU 101530 - 101560 - 101535...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 3.0 Date of preparation: 2025-03-07...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Do not bend, pinch nor knot the power cord. • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. •...
- Page 7 Safety • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
- Page 8 Safety Operator’s responsibility The operator is responsible for complying with the currently applicable laws, regulations, ordinances and existing national regulations on accident prevention, environmental protection, as well as the internal operation, operating and safety instructions that apply at the respective installation site. Obligations of the operator: •...
-
Page 9: Intended Use
Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator. -
Page 10: General Information
General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets. -
Page 11: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 12: Technical Data
Technical Data Technical Data Version / Characteristics 101530 / 101560 / 101535 • Type: – 101530, 101560 — table-top appliance – 101535 — free-standing appliance; type of base frame: open • Operating mode: electric • Equipment connection: 3 NAC • Heating element: –... -
Page 13: Technical Specifications
Technical Data Technical Specifications Name: Pastries deep fat fryer BF 16E 101530 Art. No.: Material: CNS 18/10 Number of basins: Basin volume, in litres: Basin dimensions (W x D x H), in mm: 515 x 305 x 130 Number of baskets:... - Page 14 Technical Data Name: Pastries deep fat fryer BF 30E 101560 Art. No.: Material: CNS 18/10 Number of basins: Basin volume, in litres: Basin dimensions (W x D x H), in mm: 615 x 490 x 130 Number of baskets: Basket volume, in l: 19,2 Basket dimensions (W x D x H), in mm: 570 x 440 x 80...
- Page 15 Technical Data Name: Pastries deep fat fryer BF 30E OU 101535 Art. No.: Material: CNS 18/10 Number of basins: Basin volume, in litres: Basin dimensions (W x D x H), in mm: 615 x 490 x 130 Number of baskets: Basket volume, in l: 19,2 Basket dimensions (W x D x H), in mm:...
-
Page 16: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 101530 Fig. 1 1. Control panel 2. Control box handle (2 pcs) 3. Fixture for hanging the deep fat frying 4. Control box basket 5. Base unit handle (2 pcs) 6. Feet (4 pcs) 7. - Page 17 Technical Data 101560 Fig. 2 1. Control panel 2. Control box handle (2 pcs) 3. Fixture for hanging the deep fat frying 4. Control box basket 5. Base unit handle (2 pcs) 6. Feet (4 pcs) 7. Lever for deep fat frying oil drain 8.
- Page 18 Technical Data 101535 Fig. 3 1. Control panel 2. Control box handle (2 pcs) 3. Fixture for hanging the deep fat 4. Control box frying basket 5. Deep fat frying basket handle (2 pcs) 6. Deep fat frying basket 7. Deep fat frying basket hook (2 pcs) 8.
- Page 19 Technical Data Additional equipment (not included in the delivery!) Deep frying basket BF 16E Material: steel, chrome-plated Basket size: W 475 x D 235 x H 80 mm Content: 8,9 litres Dimensions: W 560 x D 245 x H 190 mm Weight: 1,3 kg Code-No.: 101533...
-
Page 20: Functions Of The Appliance
Installation and operation Functions of the Appliance In the pastries deep fat fryer, the pastries are fried in hot oil at a correct temperature setting. Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 21 Installation and operation • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • When selecting the installation site, please consider the following items: – The mounting surface must be even, sufficiently load-bearing, waterproof, dry and resistant to high temperatures.
-
Page 22: Operation
Installation and operation Operation • Setzen Sie di e Boden-Abdeckung in das Beck en ei n. T he c ov er acts as a spac er betw een the heating elem ent and l eft- ov er food tray. Ostrożni e osadzić skrzy nkę roz dzi elczą z elem entem grzewcz ym na tylnej kr awędzi urz ądz enia. Sw orz eń w dol nej częś ci skrzy nki r ozdzielcz ej m usi wc hodzić w otw ór w urządz eni u głów nym. W taki s posób s krzynk a r oz dzielcz a j est pr awidł owo us tawi ona. WARNING! Fire hazard! Operation of the appliance with the oil level below MIN mark may lead to... - Page 23 Installation and operation When pouring hot frying oil / fat in cubes (blocks) be aware of the risk of burns. Cool the frying oil / fat in cubes (blocks) before pouring. CAUTION! The deep fat fryer can only be used by individuals who have been instructed in the proper use of the appliance and hazards that may arise during the frying process.
- Page 24 Installation and operation Filling the Basin with Frying Oil or Fat in Cubes (Blocks) WARNING! Prior to filling with the frying oil or liquid fat in cubes (blocks), the basin must be clean and dry. The deep frying oil drain in 101530 and 101560 appliance must be closed and locked.
- Page 25 Installation and operation Instructions for using frying oil or fat in cubes (blocks) • Always use oil suitable for frying (e.g. vegetable oil, sunflower oil, peanut oil, etc.) or fat in cubes/blocks only. NOTE! Melt (dissolve) the fat in cubes (blocks) beforehand in a separate dish! •...
- Page 26 Installation and operation 4. For best results wait until the appliance reaches the desired temperature and then place pastry products in the deep fat fryer. WARNING! Do not use frying oil / fat in cubes (blocks) for an extended period of time in too low a temperature, as they cease to be suitable for use.
- Page 27 Installation and operation Exchange and removal of frying oil / liquid fat in cubes (blocks) 1. The frying oil / liquid fat in cubes (blocks) should be replaced regularly when it no longer fulfils legal requirements. 2. After cooling, the frying oil / fat in cubes (blocks) should be drained from the basin via fat drain tap into a suitable container.
- Page 28 Installation and operation Pastries Deep Fat Fryer 101535 1. Place the supplied oil/fat collection container on the bottom of the base frame under the fat drain tap. 2. Place a sieve on the edge of the oil/fat collection container. 3. Open the fat drain tap by rotating the lever (14) at the front.
-
Page 29: Cleaning
Cleaning Cleaning The operator must ensure that the device and its safety components are kept in good condition. Control and safety systems should be checked for their effectiveness. Maintenance, cleaning and repairs must only be carried out by suitably trained and specialised personnel. -
Page 30: Possible Malfunctions
Possible Malfunctions 6. Clean the basin with hot water and a mild cleaning agent. Use a soft cloth or sponge. After cleaning drain water to an appropriate container using the fat drain tap (tube). Then rinse the basin with fresh water and drain it using the fat drain tap (tube) again. - Page 31 Possible Malfunctions Error Possible Cause Solution Appliance is connected Interrupted power supply Check the power supply to the power supply, and the cord for damage switched on, but the or faults ON/OFF switch indicator Power supply protection Check the fuse, and check light is not lit.
-
Page 32: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
