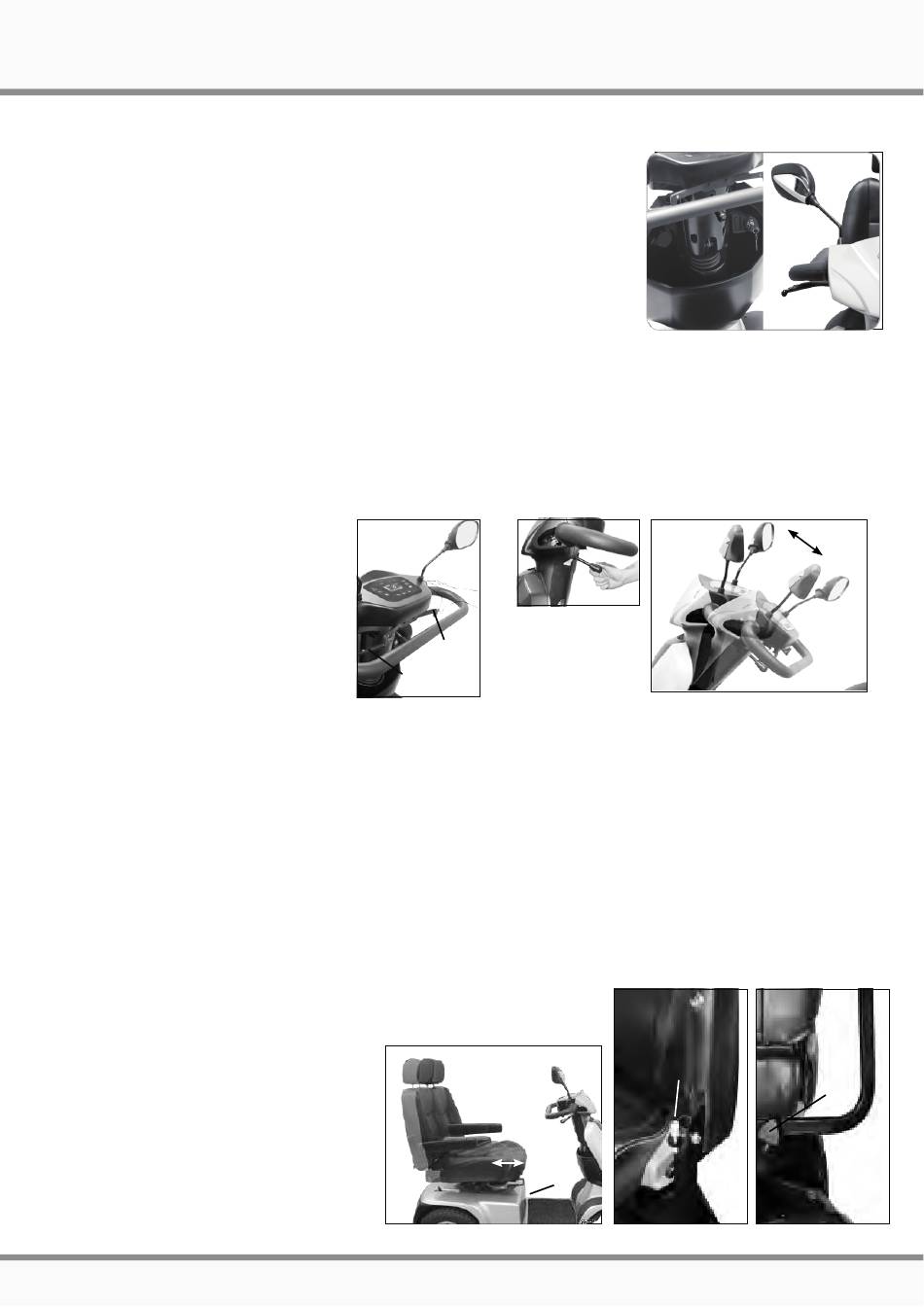

Abilize ranger Instruction Booklet page 8

Tiller Storage Compartment (K):
Provides you spacious room for storage.
Hand Brake (L). Hold brake (L), when immediate stop is required.
CAUTION: If you have to brake in an emergency, simply release
the Throttle and hold the hand brake which will bring you to a halt!
(K)
Wigwag Lever Operation:
(L)
Pull the right-hand drive lever (N) carefully to travel forwards.
Pull the left-hand drive lever (M) carefully to travel in reverse.
(This can be reversed if required by local dealer.) Releasing both, engages automatic brake.
These are also your accelerators - The further you depress them, the faster you go. (Subject to the
position of the Rabbit / Turtle control).
CAUTION: Keep LCD display panel and Wigwag Lever dry. If panel and Wigwag Lever get
wet, allow to dry out before using.
Steering Adjustment:
Press angle adjustment (N)
down to achieve a comfortable
steering angle.
O
CAUTION: Do not make
N
adjustments whilst driving.
Ensure steering is at optimum
M
angle before and after use.
Seat Adjustment (P):
Pull the Seat Adjustment Lever (Q) to disengage the seat (P). Slide the seat forwards or
backwards into the required position. Let go of the lever (Q) again to lock the seat into its required
position.
CAUTION: Seat position should be set as far forward as is comfortable to prevent the
scooter tipping over.
CAUTION: Once on the scooter, sit firmly on the seat, do not stand on the foot rest as this
could cause the scooter to tip over causing damage.
Angle Armrest Adjustment (R):
Pull the lever (S) and adjust the armrest to the required angle.
CAUTION: Pull the armrest up
S
when getting on or off the scooter.
R
Do not hang heavy items on the
armrests as this could cause the
scooter to tip over. Basket
assembling and disassembling:
P
Q
