Summary of Contents for Abilize ranger

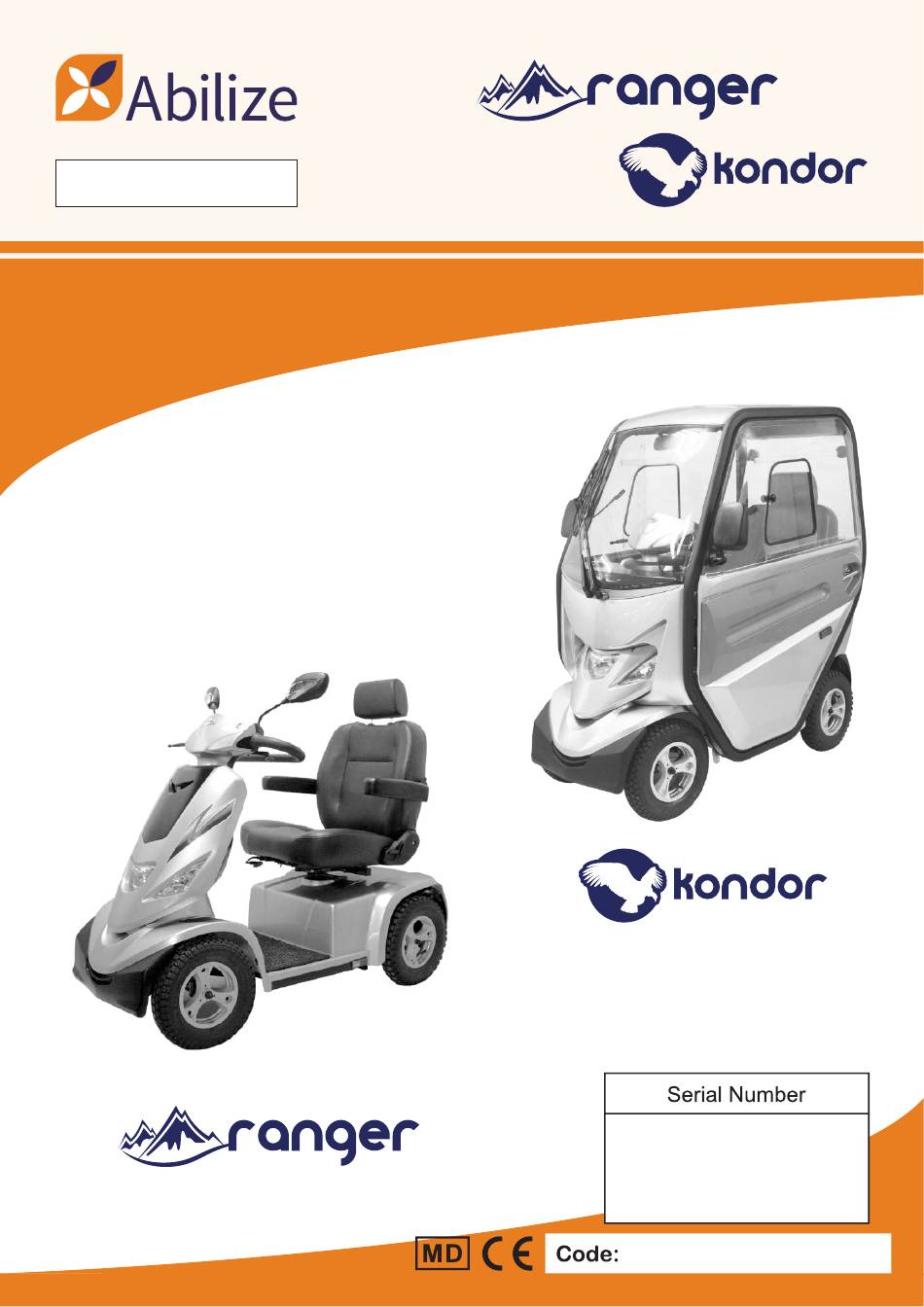

- Page 1 & Instruction Booklet MS03010008 / MS05010001...
-
Page 2: Table Of Contents
Table of Contents Introduction Important Precautions Safety Warnings & Instruction Labels Identification of Parts Charging the Batteries Troubleshooting Disassembling your Scooter Functions Kondor Cabin Variation Safety Information and Electromagnetic Interference (EMI) Specifications Warranty... -
Page 3: Introduction
Thank you and congratulations on purchasing your new Abilize Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction. We sincerely hope you enjoy your Abilize Mobility Scooter. -
Page 4: Important Precautions
Important Precautions: • Only one person at a time can ride the Scooter. • Maximum load is 181KG / 400 lbs (Ranger), 200KG / 440lbs (Kondor). • Turn key off before getting on or off. • Always drive carefully and be aware of others using the same area. -
Page 5: Safety Warnings & Instruction Labels
Safety Warnings & Instruction Labels The following labels are positioned on your scooter, they communicate important warnings or instructions regarding the safe operation of your scooter. Please carefully read all labels before driving. Please read the instruction booklet carefully before using your scooter. Do not drive the scooter on slippery surfaces or on slopes over 8 degrees. -
Page 6: Identification Of Parts
Before attempting to drive this scooter on your own, it is important that you familiarise yourself with the controls and how to operate them. (Please refer to page 21 for Kondor Cabin Scooter’s parts) Wig Wag Captain Seat Hand Brake Angle Armrest Adjustment Tiller Angle Adjustment... - Page 7 HS-828 Function of parts: Main key switch (A) •Turn the key to the right to turn the scooter on. •Turn the key to the left to turn the scooter off. CAUTION: Always ensure that the scooter is switched off before getting on or off the scooter and before removing any items from the scooter.
- Page 8 Tiller Storage Compartment (K): Provides you spacious room for storage. Hand Brake (L). Hold brake (L), when immediate stop is required. CAUTION: If you have to brake in an emergency, simply release the Throttle and hold the hand brake which will bring you to a halt! Wigwag Lever Operation: Pull the right-hand drive lever (N) carefully to travel forwards.
- Page 9 Seat Swivel Adjustment: Pull the lever (T) upwards to disengage and rotate seat (P) to required angle, Let go of the lever (T) to lock the seat into its required position. Seat Back Angle Adjustment: Pull the lever (U) upwards to adjust Pull the lever (U) upwards to adjust backrest’s angle, then release the lever when adjusted to required...
- Page 10 Proportion Speed Reduction: 1. The scooter is equipped with proportional speed reduction. It will automatically reduce speed when encountering a corner, reducing speed corresponding to the angle of turn. 2. For safety reasons, when pushing the scooter by hand, if the pre-determined speed is exceeded, the controller automatically switches on and brakes the scooter.
-
Page 11: Charging The Batteries
Each country may supply different charger. The charging procedure may be different from below. If you require more details, please contact your authorized de aler. Be sure the scooter key is in the OFF position before charging. 8A/12A Charger for Ranger/Kondor : Figure 5 Operating Instruction 1. - Page 12 LED Indication ◎Power on : On/off LED - Yellow light on ◎Charge on : Charge LED - Yellow light on =Normal charging - Green light flashing = 80% fully charged. - Green light on = Fully charged - Yellow light flashing = No batteries or incorrect batteries fitted - Red light on / flashing = Faulty ◎Power on : On/off LED - Yellow light on...
- Page 13 Instruction Booklet Error Code Error Description Initial check points code The batteries have run out of charge. Low Battery Fault •Recharge the batteries. •Check the battery and associated connections and wiring. Battery voltage is too high. This may occur if overcharged and/or traveling down a long slope.
-
Page 14: Troubleshooting
Troubleshooting: • Check AC input. If it works normally, the battery charger may be defective. • Check if the battery is connected correctly. • Check if the output connection is short or open. • If the battery connection is correct, the battery charger may be defective. •... - Page 15 Obstacle climbing: • Your scooter can climb obstacles and curbs of up to 60mm (Ranger) and 100mm (Kondor) in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient. •...
-
Page 16: Operation & Set Up
Function Buttons and Indicators: Main Key Switch : •Turn the key to the right - Turn scooter on. •Turn the key to the left - Turn scooter off. •Turn on the scooter, control panel will be in standby mode. •Always ensure that the scooter is switched off before getting on or off the scooter and before removing any items of the scooter. -
Page 17: Status Display
HS-828 Instruction Booklet Turning light and Parking Light : •To activate the hazard lights (left and right turning lights blink simultaneously), press the【Hazard light】key. Pressing this key again will turn off the light. •To activate the left turn light, press the【Left Turn】key. Pressing this key again will turn off the light. -
Page 18: Mode Selection
HS-828 Instruction Booklet [MODE] SELECTION •Press [MODE] to change display mode: TIME, TEMP, ODO, and TRIP. Figure 11 Figure 12 [ TIME ] [ TEMP ] Figure 13 Figure 14 [ ODO ] [ TRIP ] Exit / Save : •Setup mode will automatically quit after 15secs without pressing [left turn] and [right turn], and scooter will save the setting and return to operation mode. - Page 19 HS-828 Instruction Booklet SETTING- USER DEFINE 1.Make sure the scooter (key) is off. 2.Press and hold both [ ] then turn on the key. Keep holding the buttons until the LCD screen is on. MODE 3.Press [ MODE ] button to select the Save/Exit/ modes you want to set up.
-
Page 20: Maintenance Reminder
Instruction Booklet Function Buttons and Indicators: Here are some suggestions about solving problems you may have with your scooter. There is a self-diagnostic warning light on the control panel. To check the self-diagnostic warning light, turn on the key and count the number of blinks on the warning light. Check point Solution Check if the power is off... -

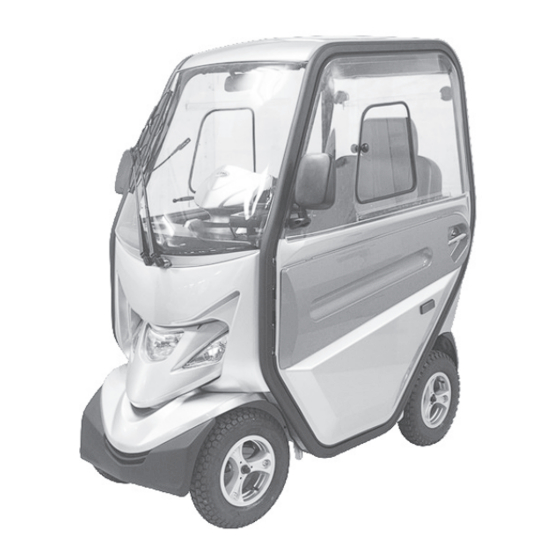

Page 21: Kondor Cabin Variation
Kondor Cabin Variation Before you take your first trip, you should familiarize yourself well with the operation of the scooter and with all operating elements. Take your time to test all functions and driving modes. Interior Rearview Mirror 22” Captain Seat Windshield Wiper Hand Brake Rear Mirror... - Page 22 Interior Rear View Mirror / with Reversing Camera (Optional) The mirror allows the driver observes the rearview and eliminate rearview blind spot. You can also upgrade your rear view mirror with reversing camera (please contact your dealer). This camera is designed to be waterproof, crash-proof and avoid sun damage. For safety only use the camera when reversing and not whilst driving.
-
Page 23: Safety Information And
CAUTION: It is very important that you read this information regarding the possible effects of electromagnetic interference on your motorised scooter. Powered wheelchairs and motorised scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and mobile phones. -
Page 24: Electromagnetic Interference (Emi)
Motorised scooter electromagnetic interference: Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorised scooter control system while using these devices. -
Page 25: Specifications
Mechanism & Back Angle Adjustment Seat width 559mm / 22” Motor size 800W, 3650rpm (Ranger) 1000W, 3200rpm (Kondor) Battery size 2 x 12V. 75Ah (Ranger) 2 x 12V. 100Ah Battery weight 68.5kg / 151lbs Travel range 50km/31miles (Ranger) 44km/27miles (Kondor) Battery charger 8A Off... -
Page 26: Warranty Conditions
There is a comprehensive twelve-month warranty from the date on which your new scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more details, please see the warranty conditions below. Warranty conditions: • Any work or replacement part installation must be carried out by an authorised service agent.
