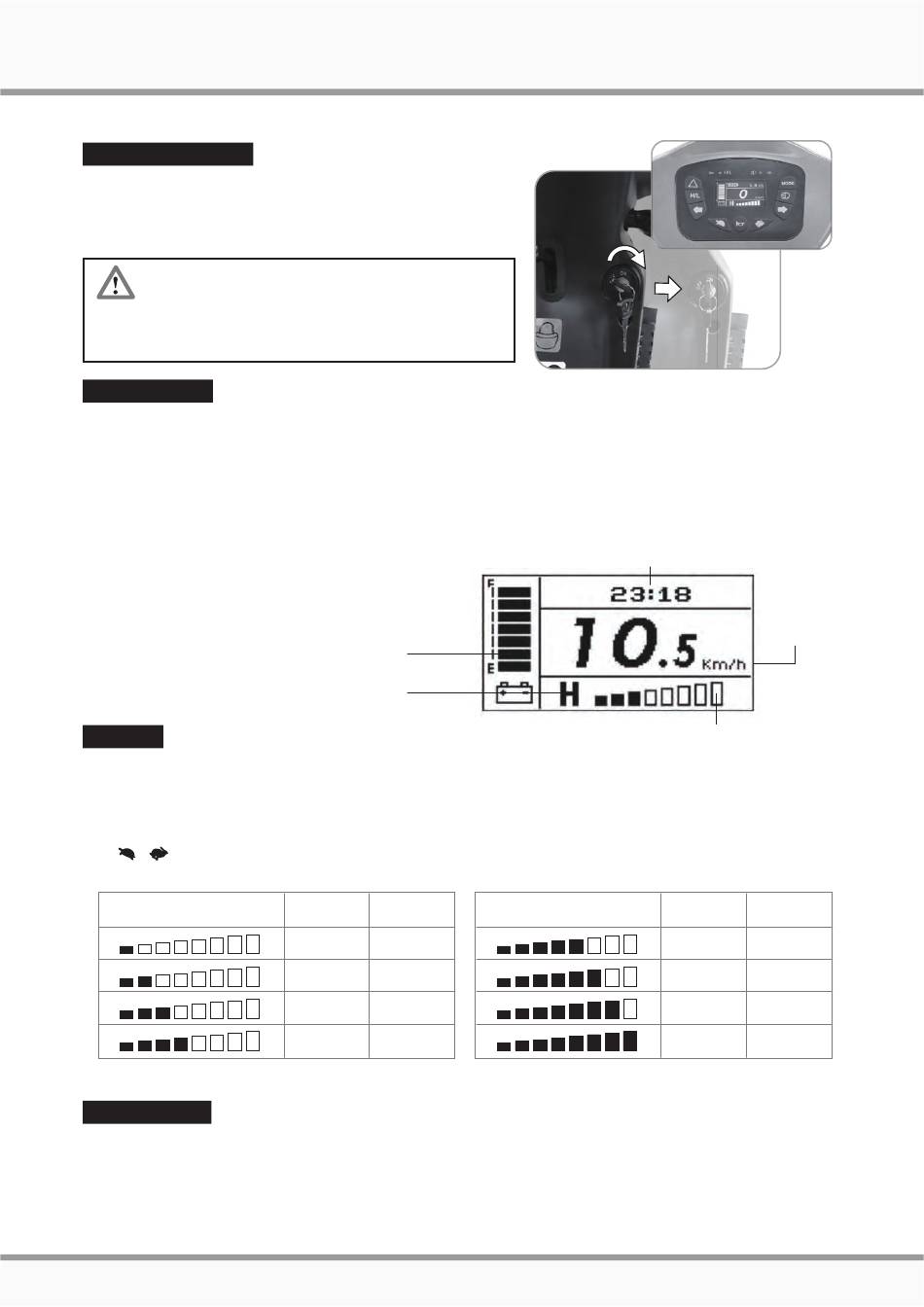

Function Buttons and Indicators:
Main Key Switch :
•Turn the key to the right - Turn scooter on.
•Turn the key to the left - Turn scooter off.
•Turn on the scooter, control panel will be in
standby mode.
•Always ensure that the scooter is switched
off before getting on or off the scooter and
before removing any items of the scooter.
•Turning the scooter OFF whilst driving will bring
the scooter to an abrupt stop and danger.
Sleep Mode :
•Scooter will go into Sleep Mode with one long beep warning sound if no throttle activity
is detected for programmable time period. (Default programmable time is 30 mins.)
•When scooter is in Sleep Mode, the LCD display will be off automatically and the scooter
will not respond to commands.
•To wake up the scooter, turn the power (key) off and then on again.
OPERATION & SET UP
•When starting the scooter, the LCD control
panel will be in display main page.
Speed :
•[H/L] switch : Press H/L Speed button once, the High/Low Speed Indicator will light on,
means driving in high speed mode; Press again, the indicator will extinguish, means
driving in low speed mode. (Hi/Lo speed will vary which depends on your current speed
settings)
•[ ] [ ] Press acceleration / deceleration button to increase / decrease speed. There
are 8 different speeds of adjustment.
Speed Display
Figure 8
H / L Switch :
•The max speed can be 100% (Max) if [H/L] is set to "H"
•The Low Speed LED indicator will be on if [H/L] is set to "L", the max speed in low speed
mode can be up to 60% of max speed of scooter.
•Press [H] / [L] to reduce /increase max speed.
16
Battery Gauge
Hi /Lo Speed
H
L
Max %
Max %
25
15
35
21
45
27
55
34
Figure 6
Figure 7
Speed Display
Speed
Per Hour
Speed Indicator
H
L
Max %
Max %
65
42
75
50
88
55
100
60
