Function of parts:
Main key switch (A)
•Turn the key to the right to turn the scooter on.
•Turn the key to the left to turn the scooter off.
CAUTION: Always ensure that the scooter is switched off before getting
on or off the scooter and before removing any items from the scooter.
CAUTION: Turning the scooter OFF whilst driving will bring the scooter to an abrupt stop.
Top Control Panel Symbols and meanings:
Left Turn
Indicator
B
C
D
Icon No.
Button Name
B
Hazard Light
C
Hi/Lo Switch
D
Left Turn Signal
H
Right Turn Signal
E Deceleration
G Acceleration
F
Horn
I
Headlight Switch
J Mode Setting
H/L Speed Indicator Headlight Indicator
E
F

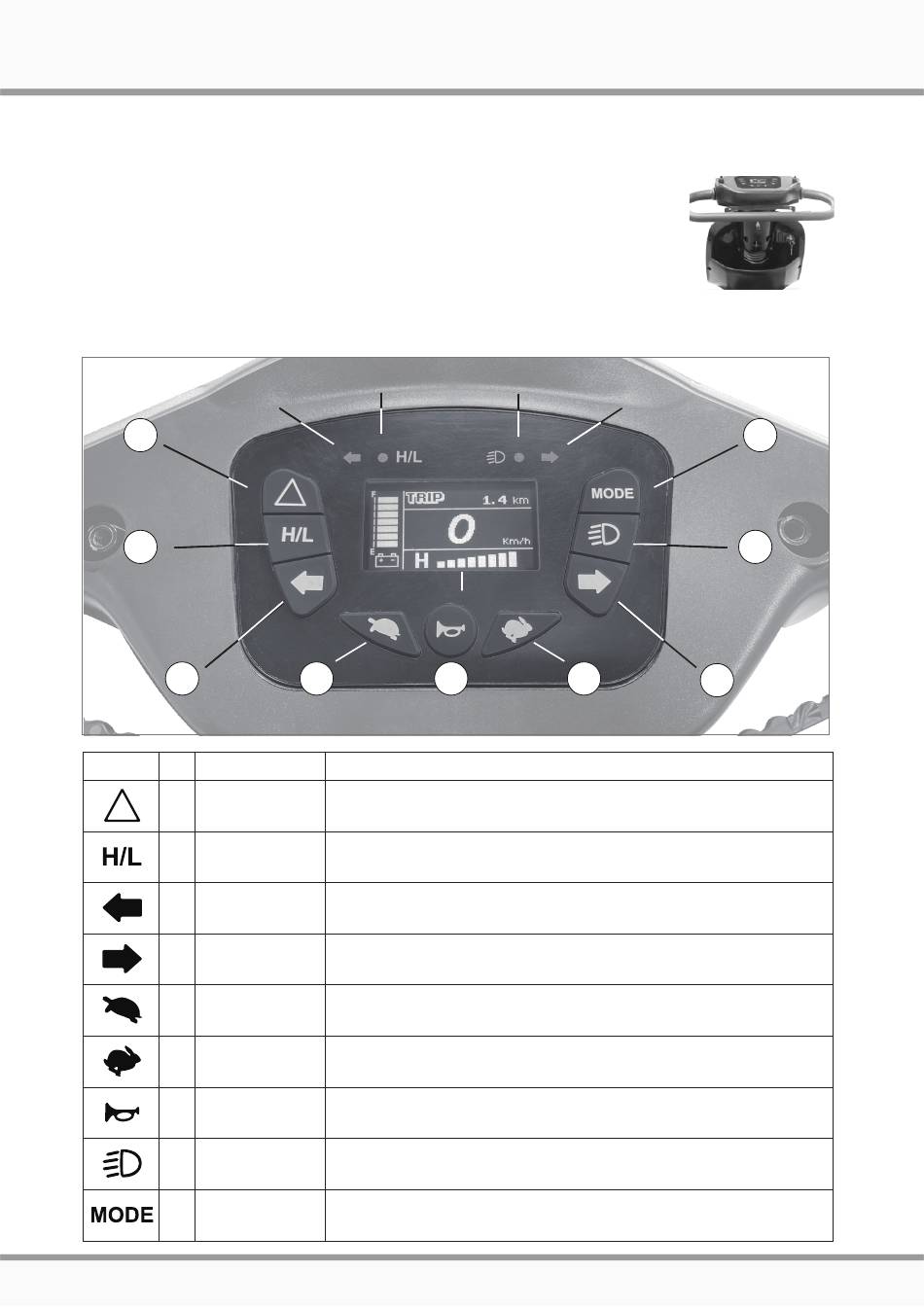

Figure 4 - Top Control Panel
Press the Hazard lights button once to switch on, press again to switch
off.
High / Low mode.
Press the turn signal button once to switch on, press again to switch off
(switches itself off automatically after 30 seconds)
Press the turn signal button once to switch on, press again to switch off
(switches itself off automatically after 30 seconds)
Press low speed button once to decrease speed, the minimum speed
is 1.
Press acceleration button once to increase speed, the maximum speed
is 8.
Press horn button once to sound warning tone when necessary.
Press headlight button once to switch on, switch off by pressing again.
Press mode setting button to set different mode.
Right Turn
Indicator
G
H
Operation
A
J
I
