- Page 1 & Instruction Booklet MS03010008 / MS05010001...
-
Page 2: Table Of Contents
Table of Contents Introduction Important Precautions Safety Warnings & Instruction Labels Charging the Batteries Troubleshooting Disassembling your Scooter Functions Kondor Cabin Variation Safety Information and Electromagnetic Interference (EMI) Warranty... - Page 3 Thank you and congratulations on purchasing your new Abilize Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction. We sincerely hope you enjoy your Abilize Mobility Scooter.
-
Page 4: Important Precautions
Important Precautions: • Only one person at a time can ride the Scooter. • Maximum load is 181KG / 400 lbs (Ranger), 200KG / 440lbs (Kondor). • • Always drive carefully and be aware of others using the same area. -
Page 5: Safety Warnings & Instruction Labels
Safety Warnings & Instruction Labels The following labels are positioned on your scooter, they communicate important warnings or instructions regarding the safe operation of your scooter. Please carefully read all labels before driving. Please read the instruction booklet carefully before using your scooter. Do not drive the scooter on slippery surfaces or on slopes over 8 degrees. - Page 6 Before attempting to drive this scooter on your own, it is important that you familiarise yourself with the controls and how to operate them. (Please refer to page 20 for Kondor Cabin Scooter’s parts) Wig Wag Captain Seat Hand Brake Angle Armrest Adjustment Tiller Angle Adjustment...
- Page 7 Function of parts: Main key switch (A) • Turn the key to the right to turn the scooter on. • CAUTION: Always ensure that the scooter is and before removing any items from the scooter. CAUTION: Turning the scooter OFF whilst driving will bring the scooter to an abrupt stop.
- Page 8 Tiller Storage Compartment (K): Provides you spacious room for storage. Hand Brake (L). Hold brake (L), when immediate stop is required. CAUTION: If you have to brake in an emergency, simply release the Throttle and hold the hand brake which will bring you to a halt! Wigwag Lever Operation: Pull the right-hand drive lever (N) carefully to travel forwards.
- Page 9 Seat Swivel Adjustment: Pull the lever (T) upwards to disengage and rotate seat (P) to required angle, Let go of the lever (T) to lock the seat into its required position. Seat Back Angle Adjustment: Pull the lever (U) upwards to adjust Pull the lever (U) upwards to adjust lever when adjusted to required position, then release the lever when...
-
Page 10: Charging The Batteries
Proportion Speed Reduction: 1. The scooter is equipped with proportional speed reduction. It will automatically reduce speed when encountering a corner, reducing speed corresponding to the angle of turn. 2. For safety reasons, when pushing the scooter by hand, if the pre-determined speed is exceeded, the controller automatically switches on and brakes the scooter. - Page 11 Flash Description Meaning Battery low or The batteries are running low. • Recharge the batteries for a minimum of 12 hours. low battery fault Battery voltage is too high. This may occur if overcharged &/or travelling down a long slope. High battery •...
-
Page 12: Troubleshooting
Troubleshooting: • Check AC input. If it works normally, the battery charger may be defective. • Check if the battery is connected correctly. • Check if the output connection is short or open. • If the battery connection is correct, the battery charger may be defective. •... - Page 13 Obstacle climbing: • Your scooter can climb obstacles and curbs of up to 60mm (Ranger) and 100mm (Kondor) in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient. •...
- Page 14 Function Buttons and Indicators: 1. Control Buttons - Hazard Light, Horn, Right Indicator, Headlight, Left Indicator, Turtle(decelerate), H/L Speed, Rabbit(accelerate). 2. LED Indicators - Status Indicator (Green), Headlight Indicator (Green), Left / Right Indicators (Green), High/Low Speed Indicator (Green). 3. Connector - 20PIN. 4.
- Page 15 5. Quit Setup Mode - The user could quit the setup mode with the following conditions. (1) Leave buttons alone for 15 seconds. stored and return to normal clock mode. Thermometer: 1. Operation Feature - Use thermistor (NTC) to detect the signal and transfers to related temperature.
- Page 16 4. Setup Mode (Unit Change) - Press together for 3 seconds to enter setup mode. While The user could quit the setup mode with the following conditions. (1) Leave buttons alone for 15 seconds. stored and return to normal speedometer mode. Odometer: 1.
- Page 17 2. Display II for Routine Maintenance - setup the mileage for next maintenance. (Count down setting) Setup steps: 4. Key on to start the controller. 6. Press button to adjust to the mileage for next maintenance. (Note 2) 8. The display will quit to normal working mode if the user does not press the button within 10 seconds.
- Page 18 Power Indicator 1. Discharge Capacity: 2. Operation Characters - The segments will not increase, only decrease. 3. Low Voltage Warning Tone - When the battery capacity is lower than 30%, the warning tone will sound with 3 short double beeps. Once per two seconds.
- Page 19 Malfunction Messages 1. Operation Feature - Take the connector pin (KEY) of controller as determinant signal, then converts it into digital codes. 2. Usage Condition - Battery needs charging soon. Low voltage, needs charging now Over voltage Over current Park Brake is lost or faulty Accelerator Others Accelerator is broken or faulty Motor is broken or faulty...
-
Page 20: Kondor Cabin Variation

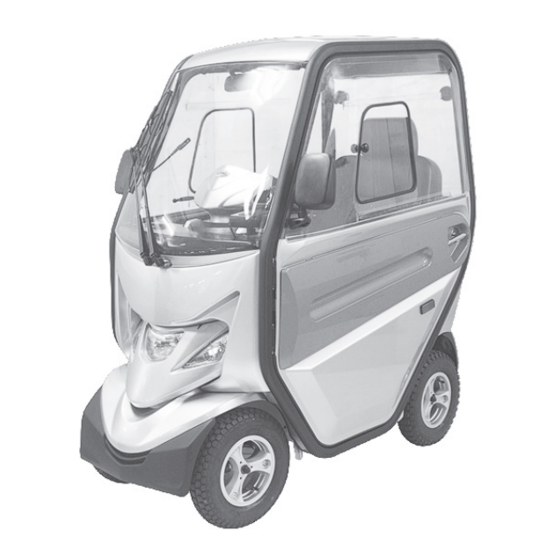

Kondor Cabin Variation and with all operating elements. Take your time to test all functions and driving modes. Interior Rearview Mirror 22” Captain Seat Windshield Wiper Hand Brake Rear Mirror Door Handle Headlight Turn Signal Rear Bumper Front Bumper Cabin Door 1. - Page 21 Interior Rear View Mirror The mirror allows the driver to observe the rearview and eliminate blind spot. Control Windscreen Washer Button (1) Windscreen Wiper Knob (2) Turn the knob towards chosen direction to control the speed of the wiper. Turn the knob towards left for lower / towards right for higher speed.
- Page 22 of electromagnetic interference on your motorised scooter. Powered wheelchairs and motorised scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and mobile phones. The interference (from radio wave sources) can cause the motorised scooter to release its brakes, move by itself, or move in unintended directions.
-
Page 23: Electromagnetic Interference (Emi)
Motorised scooter electromagnetic interference: Because EM energy rapidly becomes more intense as one move closer to the transmitting concern. It is possible to unintentionally bring high levels of EM energy very close to the motorised and braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system of the motorised scooter. - Page 24 Mechanism & Back Angle Adjustment Seat width 559mm / 22” Motor size 800W, 3650rpm (Ranger) 1000W, 3200rpm (Kondor) Battery size 2 x 12V. 75Ah (Ranger) 2 x 12V. 100Ah Battery weight 68.5kg / 151lbs Travel range 50km/31miles (Ranger) 44km/27miles (Kondor) Battery charger...
-
Page 25: Warranty
There is a comprehensive twelve-month warranty from the date on which your new scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more details, please see the warranty conditions below. Warranty conditions: • Any work or replacement part installation must be carried out by an authorised service agent.
