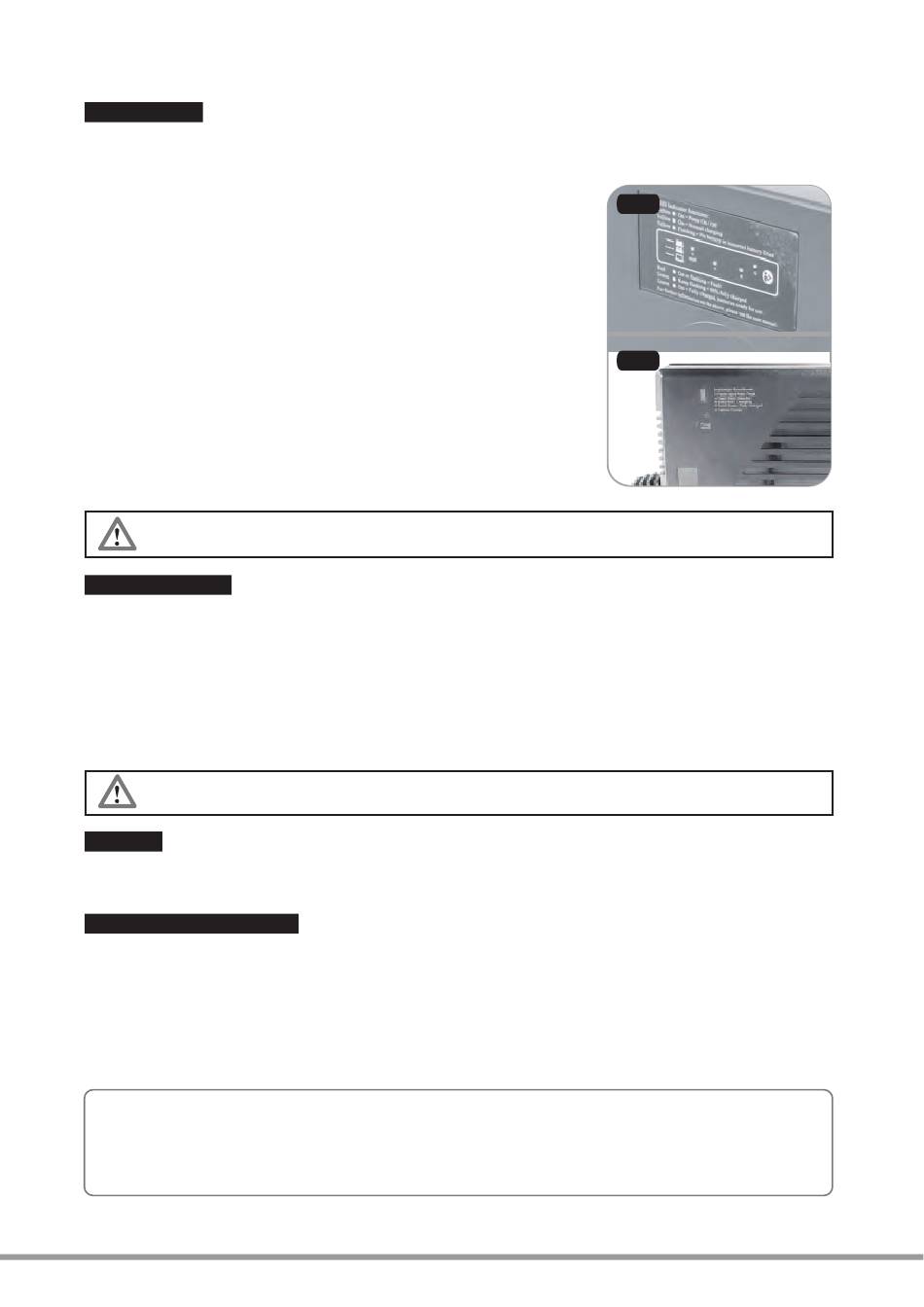

LED Indication
12A
◎Power on : On/off LED - Yellow light on
◎Charge on :
Charge LED - Yellow light on =Normal charging
- Green light flashing = 80% fully charged.
- Green light on = Fully charged
- Yellow light flashing = No batteries or
incorrect batteries fitted
- Red light on / flashing = Faulty
8A
◎Power on : On/off LED - Yellow light on
◎Charge on :
Charge LED - Red light on = Charging
- Green light on = Fully charged
- Red flashed / Red flash-rapid = Standby / Fault
The time needed to recharge will vary depending on the depletion of the
batteries. (Approx. 8 hours). Do not continuous charging for over 15 hours.
Troubles Shooting
1.Charge LED light is off
Check to see if the connectors are well connected.
2.Power LED light is off
Check to see if the input power cord has been connected correctly.
3.If the Red light flash in charging, it means the charger cannot charge normally and enter
into protection mode. Please unplug the power cord, and plug in again when the light
is off.
Maintenance & Repair must only be carried out by a Competent Engineer
or Authorised Dealer or Agent.
Warning
•Only be used for 12V lead-acid battery, and do not used for other type of battery or
other voltage.
Keep in mind these rules：
•Fully charge batteries at least once a month, or more if you use scooter regularly.
Charge after each trip exceeding 3 kilometers.
•If storing your scooter for some time (1 month or more), make sure that batteries are
fully charged, and on returning, charge them again before using scooter.
•Batteries will only give maximum performance after scooter has been used, and batteries
have been recharged up to 10 times. A bit like breaking in a new car.
Please be aware that the travelling range of your mobility scooter is impacted by how fast the batteries
are discharged. This will depend on many circumstances, such as ambient temperature, condition of the
surface of the road, tyre pressure, weight of the driver, driving environment (inclines etc.) and utilisation
of your lighting system if fitted. We recommend that you test your local ride with a family member to
ensure a safe journey.
