www.ti.com
EVM User's Guide: DAC81404EVM

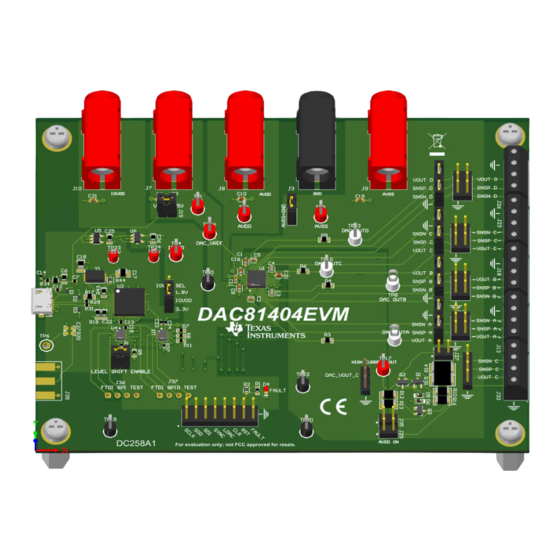

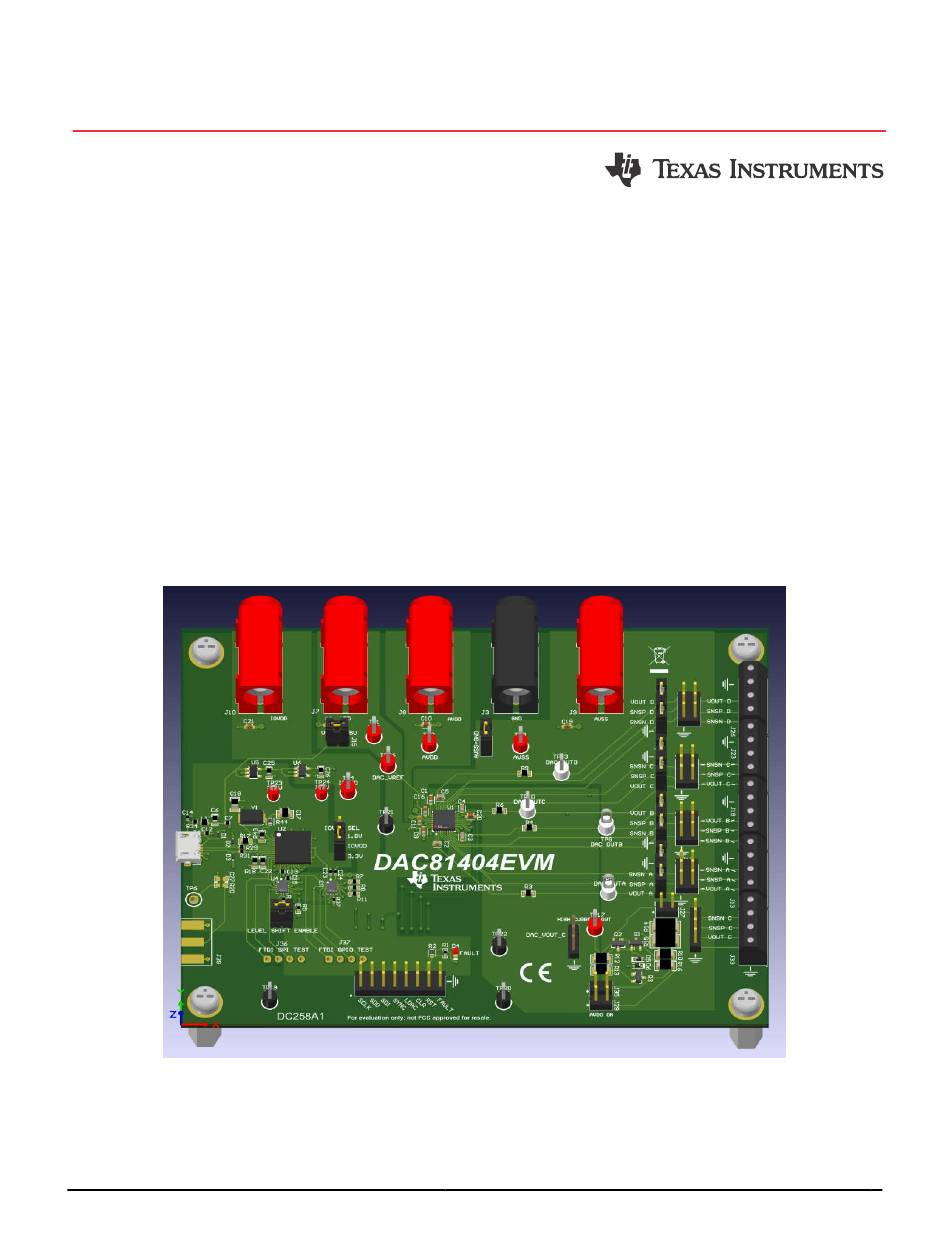

DAC81404 Evaluation Module
Description
The 16-bit, 4-channel DAC81404 and 12-bit, 4-
channel DAC61404 are a pin-compatible family of
quad-channel, buffered, high-voltage-output digital-to-
analog converters (DACs) with an integrated 2.5-
V internal reference. These devices are specified
monotonic and provide exceptional linearity of less
than 1 LSB.
Get Started
1. Order the EVM from the product folder
(DAC81404EVM)
2. Configure EVM jumpers
3. Install DAC814xxEVM GUI from ti.com
(DAC81404EVM tool
4. Connect USB and external power supplies
5. Launch DAC814xxEVM GUI
SLAU912 – JANUARY 2024
Submit Document Feedback
folder)
Copyright © 2024 Texas Instruments Incorporated
Features
•
Configurable circuit to evaluate DAC
•
Onboard VDD and IOVDD (1.8-V or 3.3-V) support
•
Trigger output is available for synchronous
measurement
•
FT4232 used to easily write to DAC using
DAC814xxEVM GUI
•
External SPI connections available
Applications
•
Semiconductor test
•
Lab and field instrumentation
•
Analog output module
•
Data acquisition
•
LCD test
•
Servo drive control module
Description
DAC81404 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DAC81404EVM
Summary of Contents for Texas Instruments DAC81404EVM
- Page 1 3. Install DAC814xxEVM GUI from ti.com • LCD test (DAC81404EVM tool folder) • Servo drive control module 4. Connect USB and external power supplies 5. Launch DAC814xxEVM GUI SLAU912 – JANUARY 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 2: Kit Contents
This user's guide describes the characteristics, operation, and recommended use cases of the DAC81404EVM. This document provides examples and instructions on how to use the DAC81404EVM board and included software. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the DAC81404EVM. -
Page 3: Device Information
Texas Instruments integrated circuits used in the assembly of the DAC81404EVM. This user's guide is available from the TI web site under literature number SLAU912. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document. -
Page 4: Jumper Information
IO supply voltage for setting the digital I/O operating voltage for the DAC81404. Ground connection. 2.2 Jumper Information The jumpers must be connected properly to operate the DAC81404EVM for the intended operation. Table 3-2 provides the details of the configurable jumper settings on the EVM. -
Page 5: Test Points
3-2, and the DAC814xxEVM GUI is fully installed, connect the USB cable from the DAC81404EVM USB port to the local machine. Once all the connection is done, power up the DAC81404EVM hardware as described in the power requirement section 3-1. - Page 6 DAC81404 J31, J33 High-current output DAC SENSEN C AVSS Figure 2-1. DAC81404EVM High-current Output Stage Diagram The power is disconnected to the high-current output stage by default. Refer to Table 2-4 for power connection information. Table 2-4. DAC81404EVM High-Current Stage Headers...
- Page 7 DAC81404EVM tool folder on TI.com. Run the GUI installer to install the DAC81404EVM GUI software on your local machine. When the DAC804xxEVM GUI is launched, an installation dialog window opens and prompts the user to select an installation directory. If left unchanged, then...
-
Page 8: Software Development
To launch the software, locate the DAC814xxEVM icon in the Start Menu, and select the DAC814xxEVM icon as shown in Figure 3-3. Figure 3-3. DAC814xxEVM Software Installation in Start Menu DAC81404 Evaluation Module SLAU912 – JANUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 9 Value or bit field of the GUI. The Register Map page also provides the FTDI GPIO controls for DAC81404EVM. For example, OPE_EN, TRIG and FAULT pins, under the FTDI section.
- Page 10 To store the values of the register map locally, select Save Configuration under the File menu option. The stored configuration files can be recalled and loaded by selecting Open Configuration as shown in Figure 3-7. Figure 3-7. DAC81404EVM Save/Open Configuration DAC81404 Evaluation Module SLAU912 – JANUARY 2024 Submit Document Feedback...
- Page 11 Hardware Design Files 4 Hardware Design Files 4.1 Schematics SLAU912 – JANUARY 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 12: Pcb Layouts
Hardware Design Files www.ti.com 4.2 PCB Layouts Figure 4-1. DAC81404EVM (Top View) Figure 4-2. DAC81404EVM (Bottom View) DAC81404 Evaluation Module SLAU912 – JANUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... -
Page 13: Bill Of Materials (Bom)
J12, J17, J20, J25 Header, 100mil, 3x2, Gold, TH 3x2 Header TSW-103-07-G-D Samtec J13, J18, J23, J26, Terminal Block, 3.5mm Pitch, On-Shore 14x8.2x6.5mm ED555/4DS 4x1, TH Technology SLAU912 – JANUARY 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 14 Panasonic Automotive AEC-Q200 Thick Film SH-J1, SH-J4, SH- J5, SH-J6, SH-J8, Shunt, 2.54mm, Shunt, 2.54mm, Gold, Black 60900213421 Wurth Elektronik SH-J9, SH-J10, Black SH-J11 DAC81404 Evaluation Module SLAU912 – JANUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 15 RC0603JR-070RL Yageo America Red Multipurpose Keystone Test Point, Multipurpose, Red, TH 5010 Testpoint Electronics Crystal, 12 MHz, 30 ppm, 18 pF, ABLS2-12.000MH Abracon 11.4x4.7mm Z-D4Y-T Corporation SLAU912 – JANUARY 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 16: Additional Information
Additional Information www.ti.com 5 Additional Information 5.1 Trademarks Windows ® is a registered trademark of Microsoft. All trademarks are the property of their respective owners. DAC81404 Evaluation Module SLAU912 – JANUARY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 17 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 18 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 19 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 20 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 21 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 22: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
