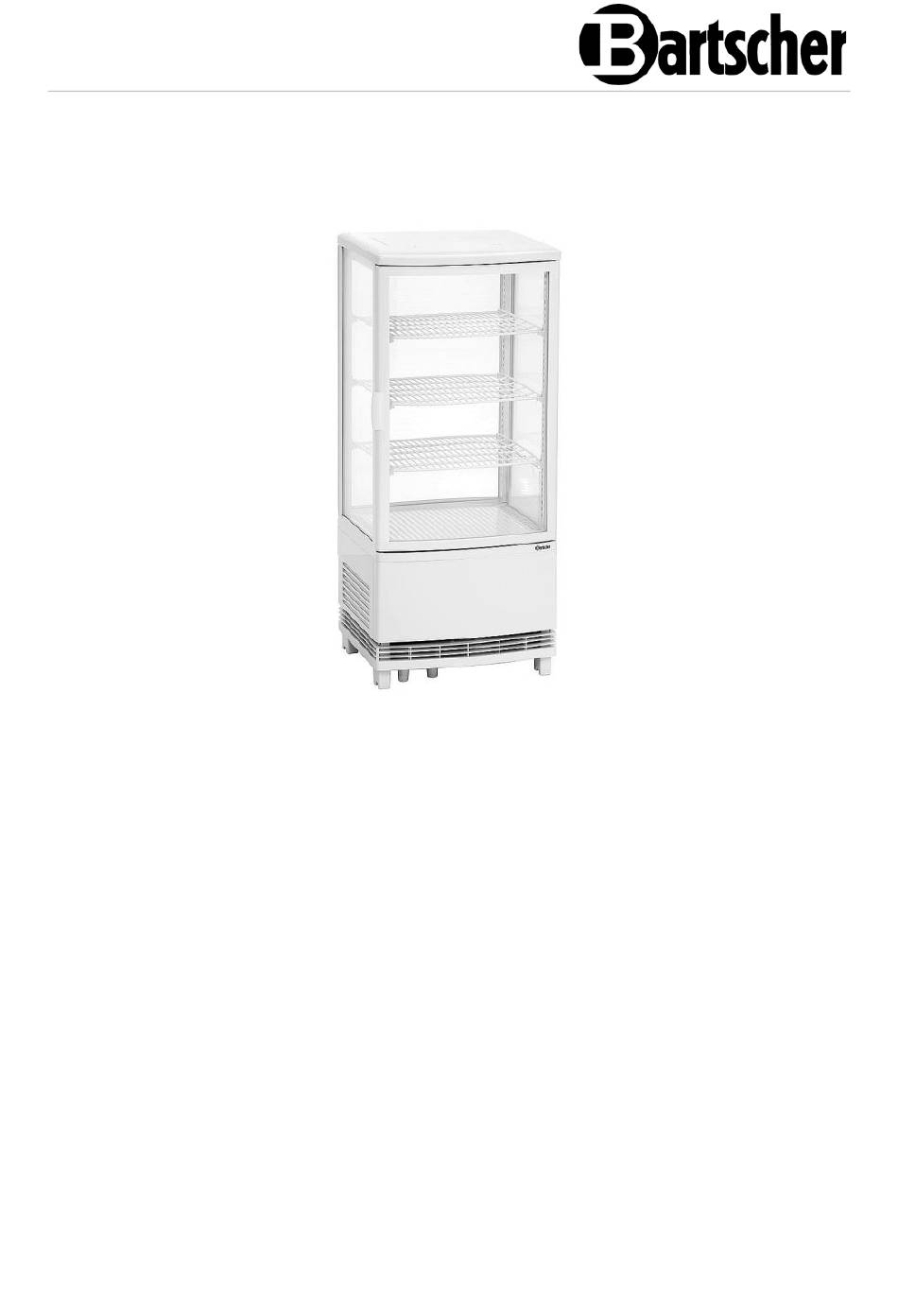

- Page 1 700678G...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 3.0 Date of preparation: 2024-08-29...
-
Page 3: Table Of Contents
List of Components of the Appliance ............. 11 Installation and operation ................12 Installation ....................12 Operation ....................14 Cleaning and Maintenance ................17 Safety Instructions for Cleaning ............. 17 Cleaning ....................18 Maintenance ..................18 Possible Malfunctions .................. 19 Disposal ....................... 22 700678G 1 / 22... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 22 700678G... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 700678G 3 / 22... - Page 6 (candles or heaters) nor with any other means. Vapour produced may cause short-circuit and too high temperatures may damage the appliance. • All ventilation slots should not be obstructed during operation. • Never attempt to damage cooling installation of the appliance. 4 / 22 700678G...
- Page 7 • Do not introduce any changes in the appliance nor modify it. • Do not drill hole in the appliance nor install any objects on it. • Do not place any heavy objects on the appliance. 700678G 5 / 22...
-
Page 8: Intended Use
The following is an unintended use: – Storing flammable or explosive objects and liquids, such as ether, petroleum or adhesives. – Storing explosive materials, like sprays filled with flammable propellants. – Storing pharmaceutical products or preserved blood. – Storing live pets. 6 / 22 700678G... -
Page 9: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 700678G 7 / 22... -
Page 10: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 22 700678G... -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Mini cooler 86L Name: 700678G Art. No.: Material: plastic, glass Display area material: plastic ABS Display area dimensions (W x D), in mm: 345 x 310 Volume in litres: Temperature range, min.–max., in °C:... -

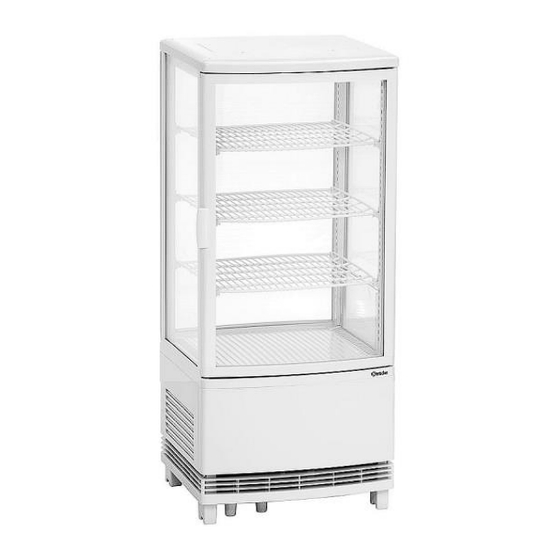

Page 12: Functions Of The Appliance
Thanks to height-adjustable racks, the mini cooler allows flexible use of individual levels. Thanks to circulation of cold air inside the appliance, beverages and food products are chilled to the required temperature and kept cool. LED lighting enables optimum presentation of beverages and food products. 10 / 22 700678G... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 700678G 11 / 22... -
Page 14: Installation And Operation
Never place the appliance in humid or wet environment. • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • When selecting the installation site, please consider the following items: 12 / 22 700678G... - Page 15 2 hours, before it is connected to power supply. • After a power failure or when the plug is removed from the socket, do not reconnect the appliance to power supply for at least 5 minutes. 700678G 13 / 22...
-
Page 16: Operation
7. Beverages and food products should be placed in the appliance only when it reaches the right temperature. 8. If needed, the temperature may be altered with digital temperature control regulator keys. 14 / 22 700678G... - Page 17 LCD defrosting indicator This indicator is lit over defrosting process; goes off when the defrosting process is completed, and flashes during defrost delay. 700678G 15 / 22...
- Page 18 6 seconds, to initiate defrosting or finish this process. The defrosting LCD indicator light is lit. 2. Press the key and hold it pressed for 6 seconds, to finish the defrosting process. The defrosting LCD indicator light goes off. 16 / 22 700678G...
-
Page 19: Cleaning And Maintenance
• For cleaning, do not use any scouring agents that contain solvents nor corrosive cleaning agents. They may damage the surface. 700678G 17 / 22... -
Page 20: Cleaning
10. Leave the doors open for the appliance to dry completely. Maintenance We recommend having the appliance serviced at least twice a year by an authorised service centre, and to conclude a service contract if necessary. 18 / 22 700678G... -
Page 21: Possible Malfunctions
Electric power supply Check the fuse, connect the safety fuse damaged appliance to another socket No power supply Check the electric power supply Loss of coolant Contact the service company Damaged temperature Contact the service company controller 700678G 19 / 22... - Page 22 Appliance operates Appliance is not placed on Place the appliance on an even loudly an even surface surface Appliance touches walls Keep sufficient clearance from or other objects walls or other objects 20 / 22 700678G...
- Page 23 Spare parts for the purpose of repairing this appliance, as stipulated in Annex II to the REGULATION (EU) 2019/2018, are available for at least eight years, counted from the date of introduction of the last appliance of this model to market. 700678G 21 / 22...
-
Page 24: Disposal
Electrical appliances should be returned to designated collection points. Coolant The propellant used in the appliance is flammable. It should be utilised pursuant to national regulations in force. 22 / 22 700678G...
