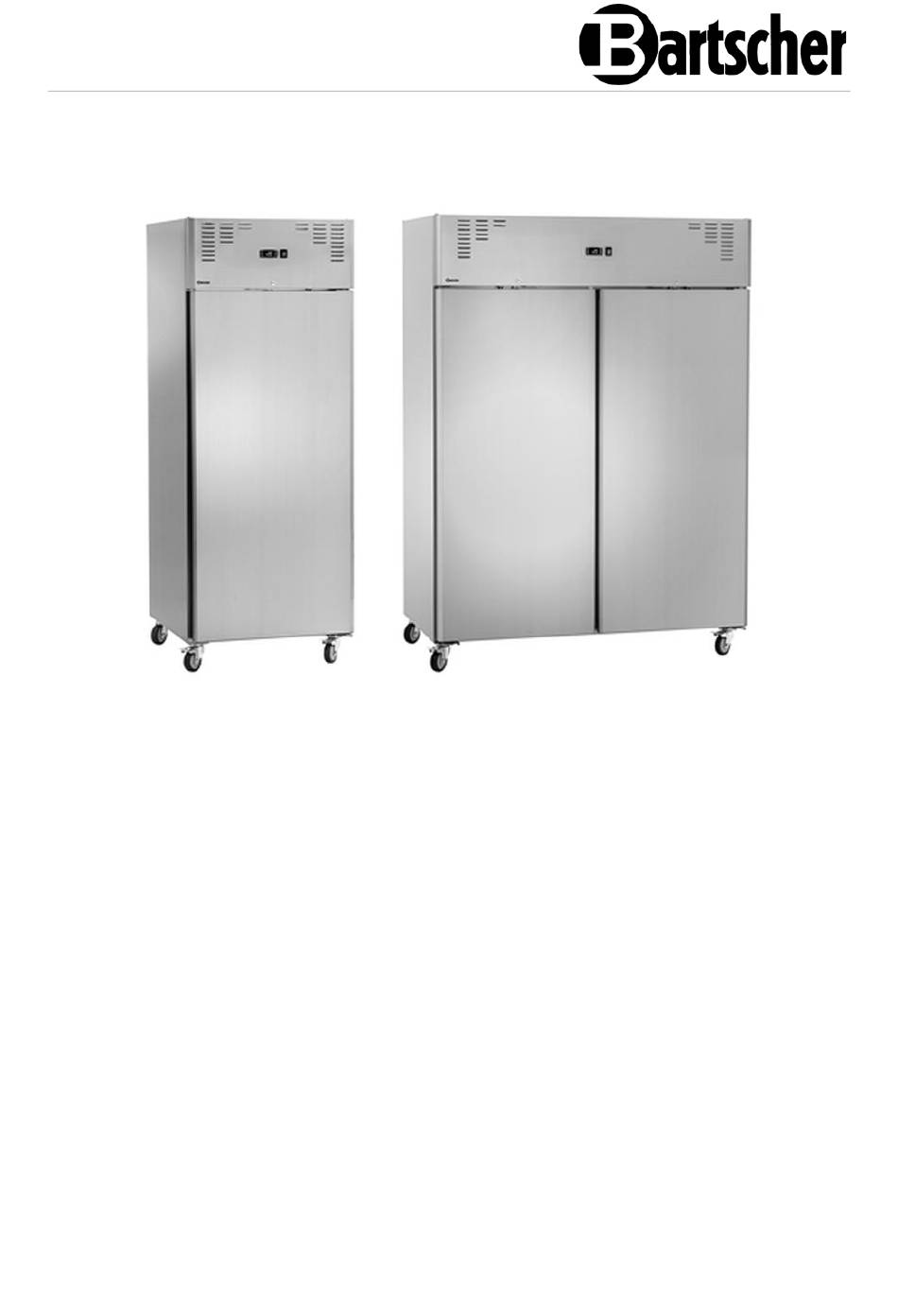

- Page 1 TKGN1-112 - TKGN2-212 700852 - 700847...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-04-22...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle un d N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Freezing and storage of deep-frozen food products. The appliance is intended for operation in maximum ambient temperature of 40 °C and relative humidity of 40%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
4 swivel castors, 2 with brakes • Appliance locked with a key More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2015/1094-IV, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model. 700852... - Page 12 Technical Data Name: Deep freezer TKGN1-112 700852 Art. No.: Material: stainless steel Inner material: stainless steel Volume, in l: Usable volume, in l: Temperature range, min.–max., in °C: -18 - -22 Ambient temperature, max., in °C: Coolant, amount in kg:...
- Page 13 Technical Data Name: Deep freezer TKGN2-212 700847 Art. No.: Material: stainless steel Inner material: stainless steel Volume, in l: 1350 Usable volume, in l: 1045 Temperature range, min.–max., in °C: -18 - -22 Ambient temperature, max., in °C: Coolant, amount in kg: R290 / 0,135 Climate class: Energy efficiency class:...
-
Page 14: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 700852 Fig. 1 1. Lock + key (2x) 2. LED lighting 3. Door contact switch 4. Digital temperature controller 5. ON/OFF switch with integrated 6. Ventilation openings power indicator light (green) 7. Appliance door 8. - Page 15 Technical Data 700847 Fig. 2 1. Lock (2x) + 2 keys for each 2. LED lighting (2x) 3. Door contact switch (2x) 4. Digital temperature controller 5. ON/OFF switch with integrated 6. Ventilation openings power indicator light (green) 7. Appliance door (2x) 8.
-
Page 16: Functions Of The Appliance
Installation and operation Functions of the Appliance Freezer made of stainless steel, equipped with height adjustable shelves in GN 2/1 format, offers exceptionally spacious storage area for cooled products. Efficient circulatory cooling ensures even and stable temperature inside despite the size of the appliance. - Page 17 Installation and operation • Be careful not to damage the rating plate and warning labels fixed on the appliance. • Never place the appliance in humid or wet environment. • Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises.
-
Page 18: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 19 Installation and operation Storage of deep-frozen food products in the deep freezer • Observe instructions for storage of food products indicated on their packages. If there are no indications, a food product should not remain in a frozen state for more than 3 months from the purchase date.
- Page 20 Installation and operation Preparation of the appliance 1. Before the first use, clean the appliance and accessories thoroughly, following indications in section 6 'Cleaning and maintenance'. 2. To end with, dry the appliance and accessories thoroughly. 3. Introduce the shelves into the appliance at the selected height. 4.
- Page 21 Installation and operation LED indicators The LED indicators in the digital display show the status of the active function: Status of the Meaning active function illuminates activated compressor flashes in delay illuminates defrosting in progress flashes defrosting delay illuminates fan activated flashes delay after defrosting illuminates...
- Page 22 Installation and operation Automatic defrosting The appliance defrosts automatically 4 times over 24-hour period. The timer initiates with the first activation. 1. If there is a need for the change of automatic defrosting phases, press the button and hold it for more than 2 seconds. The digital display shows the symbol.
- Page 23 Installation and operation Button combinations Concurrent pressing of two buttons enable activation/deactivation of a number of functions. Button locking or unlocking: – to lock, press both buttons concurrently and hold them pressed for more than 3 seconds, until the digital display shows the "OFF"...
-
Page 24: Cleaning And Maintenance
Cleaning and Maintenance The digital display may show the following error messages Error code Description Effect Solution Damaged thermostat Contact the Temperature is not sensor supplier correctly controlled Contact the The duration of each Damaged evaporator supplier defrosting process is sensor exactly 20 minutes If one or several error codes are displayed, proceed as follows:... -
Page 25: Cleaning
Cleaning and Maintenance Cleaning HINT! Never use hot water to clean the appliance. 1. Clean the appliance regularly. 2. Remove all objects from the appliance and store them temporarily in a cool room. 3. Remove all shelves from the appliance. 4. -
Page 26: Possible Malfunctions
Possible Malfunctions – cleaning the condenser with suitable tools (vacuum cleaner or soft brush); – checking of electrical connections; – checking of the thermostat and the sensor; – checking of door and door seal. Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. - Page 27 Possible Malfunctions Error Possible cause Solution Insufficient Direct sunlight or heat Move the appliance away from cooling efficiency sources in immediate heat sources vicinity Digital temperature Wait until the digital controller in defrosting temperature controller phase completes defrosting process (max. 20 minutes) The appliance door is not Properly close the door and do properly closed or was kept...
-
Page 28: Disposal
Disposal The following phenomena are normal and do not indicate malfunction: – the temperature displayed on the digital display, which rises by 4-5°C above the setpoint at regular intervals and then falls again: this is part of the normal cooling cycle of any type of refrigeration appliance (detailed explanation in the chapter 5 'Operation' / 'Digital temperature control');...
