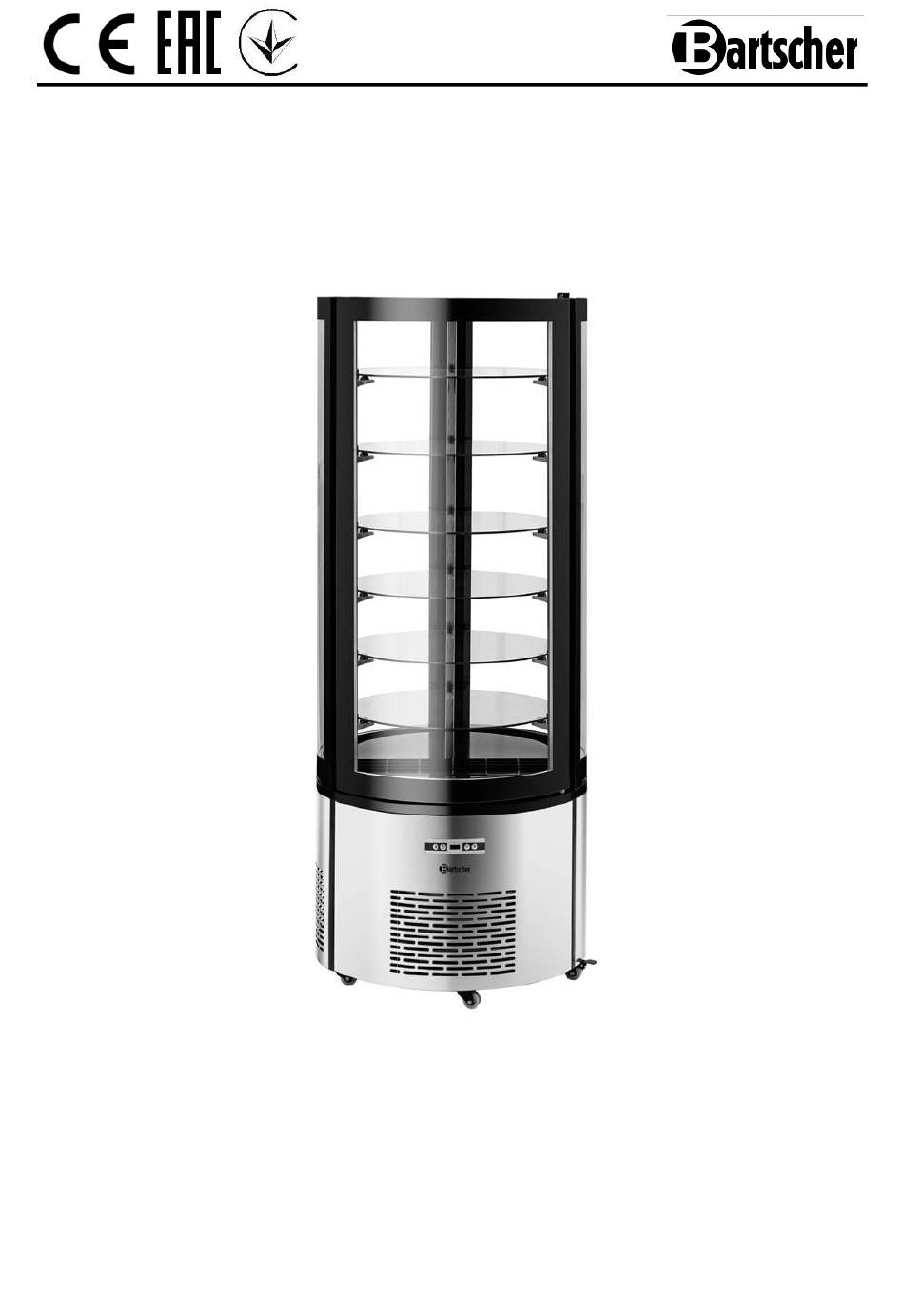

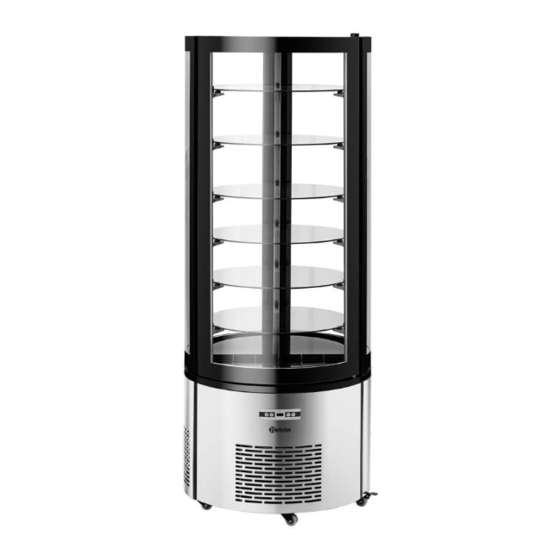

  • Page 1 400L 700314 Original-Gebrauchsanleitung V1/1018...

  • Page 2: Table Of Contents

    5. Installation and operation ..................29 5.1 Installation ......................29 5.2 Operation ......................30 6. Cleaning ........................34 7. Possible Malfunctions .................... 35 8. Waste disposal ......................36 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten...

  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    FIRE HAZARD / FLAMMABLE MATERIALS HAZARD / EXPLOSION HAZARD! This symbol highlights potentially dangerous situations which could lead to injury or death. CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.  Do not use any accessory or spare parts that have not been recommended by the manufacturer.
  • Page 6  Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...

  • Page 7: Proper Use

     Do not store gasoline or other flammable substances in the vicinity of the device. The vapours may cause fire or explosion.  Do not store the explosive objects in the device, like cans with explosive work substances.  Do not allow for the cooling circuit damages. 1.3 Proper use The operational safety of the device is assured only in case of proper use, according to the operation manual.

  • Page 8: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 9: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 10: Technical Data

    4. Technical data 4.1 Overview of parts Housing LED lighting strip (2x) Glass shelf bracket with a pad Control panel Rotating glass shelf (6) Base unit Glass door Ventilation slots Marked adjustment rails Swivel castors (5x, 2 castors with brakes) - 27 -...

  • Page 11: Technical Specification

    4.2 Technical specification Description Cake display show-case 400L 700314 Code-No.: Material: Stainless steel, glass, plastic Colour: Silver, black  Type of glazing: double glazing, all-round glazing, safety glass  Round front glass  Door: - Type: swing door, convex - Position of the door: operator side - right side, door hinge side cannot be changed ...

  • Page 12: Installation And Operation

    5. Installation and operation 5.1 Installation Positioning  Before the operation unpack the device and remove all package material and protective foil from the device and equipment. CAUTION! Never remove the rating plate and any warning signs from the device. ...

  • Page 13: Operation

    Connection DANGER! Electric shock hazard! The device can cause injuries due to improper installation! Before installation and connecting the local power grid specification should be compared with that of the device (see rating plate). Connect the device only in case of compliance! ...
  • Page 14 Control elements and indicators 11 12 LED cooling indicator LED defrost indicator Increase temperature button LED lighting indicator Digital display Change/save settings button Reduce temperature button LED Indicators LED cooling indicator This indicator comes on when the cooling device is active, goes off when the desired internal temperature is reached, and flashes during delays LED defrost indicator...
  • Page 15 Setting the desired temperature (desired value)  The temperature of the device can be regulated between 2 °C and 10 °C  To set or change the desired value:  briefly press the button , the value on the digital display will start flashing; ...
  • Page 16 Glass shelves  The cake display show-case is equipped with 6 glass shelves which can be  Mounted at different heights,  rotated,  removed.  Changing the height at which the glass shelves are mounted enables storing in the device of cakes and layer cakes of different height. Place three brackets with pads for every shelf at the desired height in the existing mounting holes in the housing side rails and place glass shelves on these brackets.

  • Page 17: Cleaning

    6. Cleaning WARNING! Before cleaning disconnect the device it from the power supply (pull the plug out the socket!). Do not use pressurized water jest for cleaning! Protect the device from the water penetration. CAUTION! Never use hot water for cleaning the device! Never use aggressive or coarse cleaning agents such as scouring powder, alcohol, solvents or other substances that could damage the device’s surfaces.

  • Page 18: Possible Malfunctions

    7. Possible Malfunctions In case of malfunction, disconnect the device from its power source. Before contacting the service or sales agent, verify - based on the table below - whether it is possible to eliminate disruption in operation. Malfunction Cause Solution ...

  • Page 19: Waste Disposal

    For that purpose disconnect device from mains supply and remove mains connection cable from the device. The propellant used in the device is flammable. Its utilization should be realized according to the valid regulations. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax:...
