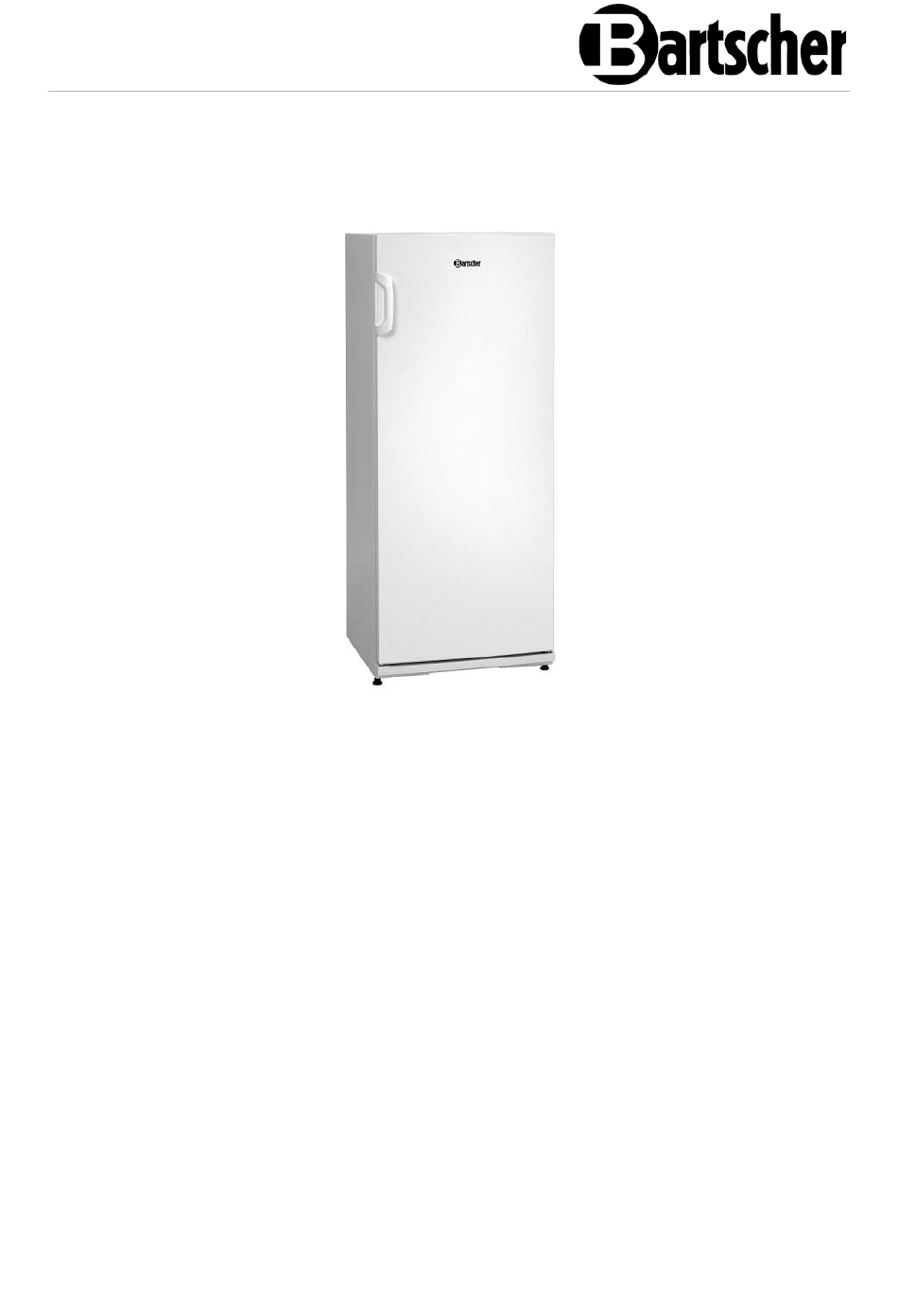

  • Page 1 TK1-111 700341V1...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-10-07...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Z najom ość w szystkich zaw artyc h w ni ej wsk az ówek dotycz ącyc h bezpi ecz eńs twa i obsł ugi stanowi w arunek bez pi ecz nej i prawi dłow ej pr acy z urządz eni em. Ponadto należy przestrzeg ać odpowi ednio do mi ejsca użytk owani a urządz eni a l okal nyc h przepis ów dotycz ącyc h z apobieg ani a wy padk om oraz og ólnyc h zas ad BH P. This ins truc tion m anual is an integral part of the pro duct and m ust be kept i n the imm edi ate vici nity of the devic e for installati on, operation, m aintenanc e and cleani ng pers onnel to acc ess at all times . If the devic e is pass ed on to a thir d pers on, the operating instructions m us t al so be handed over.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety Operator’s responsibility The operator is responsible for complying with the currently applicable laws, regulations, ordinances and existing national regulations on accident prevention, environmental protection, as well as the internal operation, operating and safety instructions that apply at the respective installation site. Obligations of the operator: •...
  • Page 8 Safety • Do not place any electrical appliances such as microwave ovens, hair dryers, irons, electric kettles etc. on the cooler. Plastic parts could catch fire. • Internal walls of the cooler and all its plastic elements should be protected against contact with fats, acids AND sauces.

  • Page 9: Intended Use

    Safety Intended Use This appliance is only intended for use described in the operating instructions, with the supplied and approved components. Any other use is considered against the intended purpose. The manufacturer shall not be liable for any damage due to unintended use. In such cases the responsible party shall only be the user/operator.

  • Page 10: General Information

    General information General information Liability and Warranty The appliance was built in accordance with the current state of the art and recognized technical safety principles. Nevertheless, during its use, there may be a threat to the health and life of the user or bystanders, or the danger of damage to the device or other assets.

  • Page 11: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 12: Technical Data

    Technical Data Technical Data Technical Specifications Name: Deep freezer TK1-111 700341V1 Art. No.: Material: Plastic Inner material: HIPS (high-impact polystyrene) Volume, in L: Usable volume, in L: Temperature range, max., in °C: Temperature control, levels: Ambient temperature, min.–max., in °C:...

  • Page 13: Functions Of The Appliance

    – drawer height: 172 mm The set includes: 1 ice cube tray More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2016, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.

  • Page 14: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance The delivery does not include Fig. 1 decorations! 1. Control elements 2. Door handle 3. Appliance door 4. Ice cube tray 5. Foot (4 pcs) 6. Frozen food products drawers (5 pcs) 7.

  • Page 15: Installation And Operation

    Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law.
  • Page 16 Installation and operation – The mounting surface must be even, sufficiently load-bearing, waterproof, dry and resistant to high temperatures. – Make sure that the designated escape routes are clear. – Ensure a stable position. – Allow sufficient space for work, maintenance and cleaning. –...
  • Page 17 Installation and operation • In order to avoid damage to the compressor, do not tilt the appliance more than 45° when positioning or transporting it. • If the appliance is to be relocated, follow the instructions below: – switch the appliance off; –...
  • Page 18 Installation and operation • If the appliance is to be installed in a corner, maintain a lateral clearance of at least 60 mm (Fig. 4). • Set the appliance on a level surface; it may not lean against a wall. •...
  • Page 19 Installation and operation Changing the Hinge Side (Fig. 5) WARNING! Before carrying out any work on the appliance, disconnect it from the power supply (pull the plug out of the socket). If necessary, the opening direction of the appliance door can be changed. To this end, spanners No.
  • Page 20 Installation and operation ATTENTION! Always note the number of washers on the bearing pivots and screws before starting the adaptation. Always align the door carefully so that it closes tightly. 1. Open the appliance door. 2. Remove four covers (c) from the housing and from the inside of the appliance door.

  • Page 21: Operation

    Installation and operation Operation User instructions for freezing of food products in the deep freezer • Deep-freeze only food products that are suitable to this end and withhold low temperatures well. • Deep-freeze only fresh food products. • A suitable packaging should be selected for each food product and the product should be packed well.
  • Page 22 Installation and operation • Parti ally or fully thaw ed food pr oducts s hould be imm edi ately used. Low tem perature pr eserv es food products, but it does not eradic ate micro- organism s. T hey reac tivate at an acc eler ated pac e and food pr oduc ts turn rapidly . Parti al thawing reduces the nutriti onal v al ue of food products , especi ally the nutriti onal v al ue of frui ts and v egetables, as w ell as r eady-made m eals . •...
  • Page 23 Installation and operation Before First Use 1. Before first use, clean the appliance and equipment (drawers, ice cube tray) following instructions in section 6 'Cleaning'. 2. To end with, thoroughly dry the appliance and accessories. 3. Place drawers in the appliance. 4.
  • Page 24 Installation and operation Temperature rise warning indicator light (red) When the temperature in the appliance rises above -9°C, this indicator light will light up. When the appliance is connected to the electricity supply, the red warning indicator light also lights up. It indicates that: •...
  • Page 25 Installation and operation Freezing Food Products 1. Place food products to be frozen in single or double layers on the upper quick- freeze shelf. The quick-freeze shelf in the appliance is marked with the symbol. 2. Close the appliance door. 3.
  • Page 26 Installation and operation Appliance Defrosting ATTENTION! Before defrosting disconnect the appliance from the power supply (pull the plug out). The appliance should be defrosted at least twice a year so that the thickness of ice layer does not exceed 5 mm. 1.

  • Page 27: Cleaning And Maintenance

    Cleaning and Maintenance Switching Appliance OFF 1. If the appliance is not used, rotate the temperature controller to '0' position. 2. Disconnect the appliance from power supply (pull the plug out). 3. Defrost the appliance as described above. 4. Clean the appliance observing indications in section 6 'Cleaning'. 5.

  • Page 28: Cleaning

    Cleaning and Maintenance Cleaning 1. Clean the appliance regularly. 2. Remove all objects from the appliance. 3. Internal surfaces of the appliance and all plastic elements should be protected against fats, acids, sauces. If, nonetheless, they reach the surface, clean the affected place immediately with warm water and a mild cleaning agent.

  • Page 29: Maintenance

    Cleaning and Maintenance Maintenance We recommend having the appliance serviced at least twice a year by an authorised service centre, and to conclude a service contract if necessary. Regular maintenance is essential to maintain the best performance and ensure the safe operation of the appliance.

  • Page 30: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. The works may only be performed by suitably qualified technical personnel. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model and serial number.
  • Page 31 Possible Malfunctions Malfunction Possible Cause Solution The temperature in Appliance door not tightly Close the appliance door, the appliance is too closed / opened for too observe door open time high, short long interruptions in the Too many food products Remove excess food from the operation of the in the appliance...

  • Page 32: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
