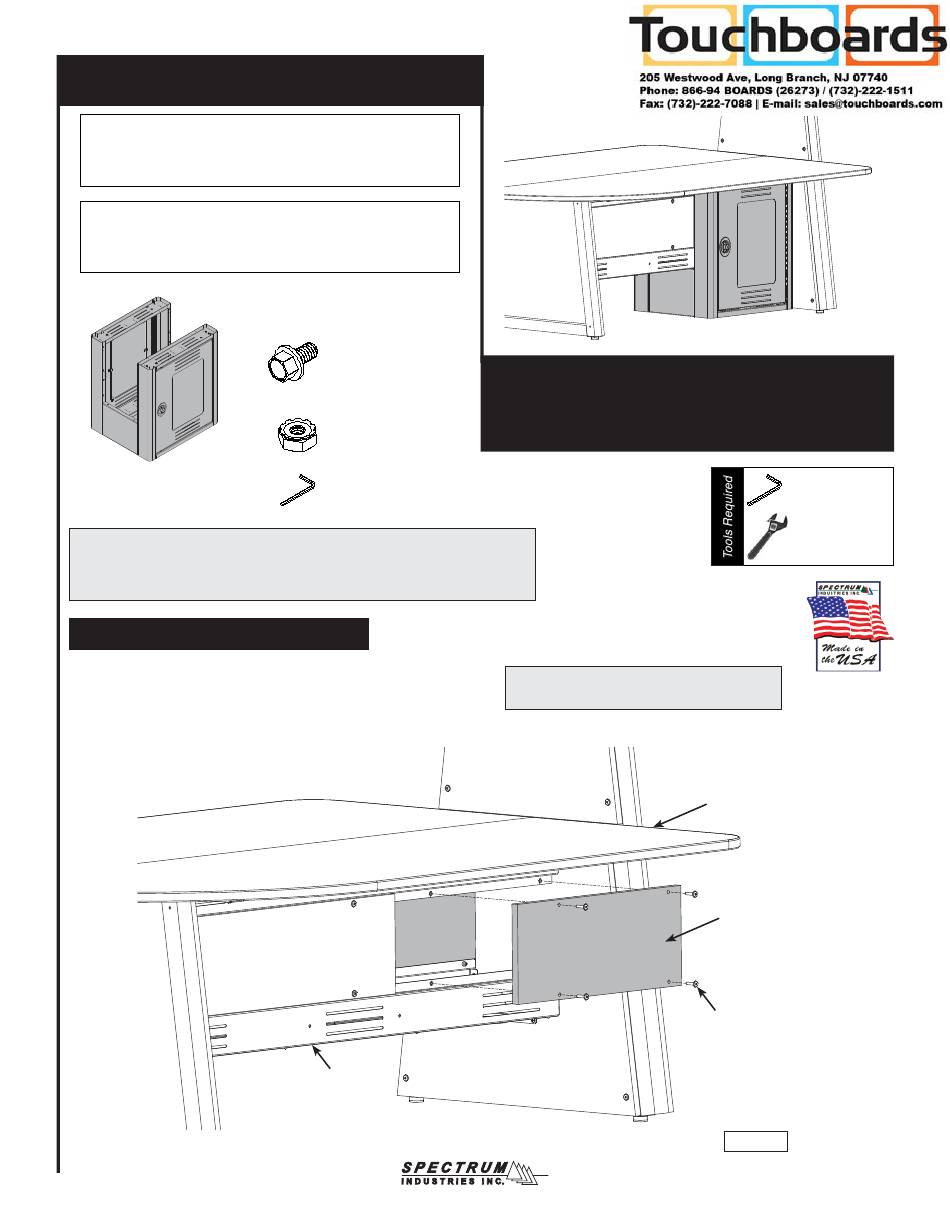

Spectrum InVision 37107 Assembly Instructions

Assembly Instructions Assembly Instructions
To purchase parts or accessories, please contact us at
www.spectrumfurniture.com
1-800-235-1262
Thank you for purchasing Spectrum products!
Before you begin, please make sure all parts and proper quanti-
ties are included. Any parts damaged during shipment must be
reported within 15 days of receipt. To report information regarding
damages or if you have any questions, please call 1-800-235-1262.
(1) 0112530
rack cabinet assembly
Note: If you are attaching this equipment rack to a new InVision table, attach the
equipment rack to the table while the table is still upside-down during the table
assembly (see InVision table assembly instructions). The following instructions
show installation onto an upright table.
1. Remove short side panels 1. Remove short side panels
A. Remove the (4) 1/4-20 x 30mm JC bolts to remove each short side
panel from the existing cord channel. Figure 1.
B. Remove the other short side panel on the opposite side of the cord
channel using the same procedure.
(8) 054544
1/4-20 x 1/2 fl anged
hex head screw
(4) 0106543
1/4-20 keps nut
(1) 025039
4mm hex wrench
cord
channel
Equipment Rack for InVision Equipment Rack for InVision
Media Collaboration Table Media Collaboration Table
#37107 #37107
Note: If the equipment rack will be permanent,
these two panels will no longer be needed.
™ ™
4mm hex wrench
(included)
3/8" or adjustable
wrench
worksurface fl at edge
at rear of table
existing short
side panel
(4) 1/4-20 x 30mm
JC bolts
Figure 1
0112597R1 Page 1 of 4
