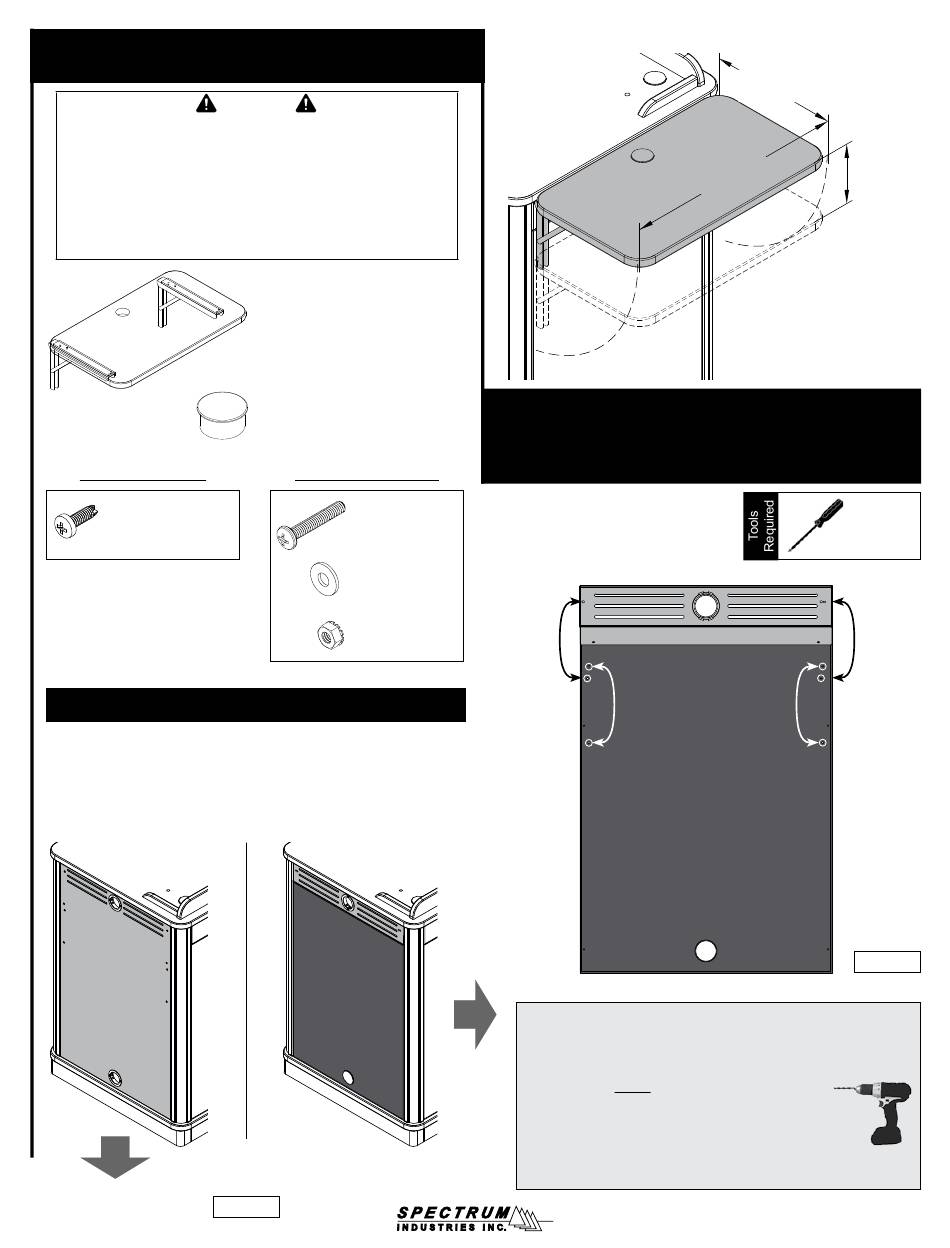

Spectrum Flip-up Shelf for Link Lectern Assembly & Instruction Manual

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
For metal side panels
(4) 0100167
8-32 x 1/2" PH
Thread-cutting screw

1. Before You Begin

Determine:
• Side of the lectern the shelf will be installed. (Left or right-side)
• Upper or lower shelf position
• Type of side panels your lectern has (metal or laminate) Figure 1A
Metal
Proceed to Step 2
Figure 1A
(1) 0120069
Flip-up shelf assembly
(1) 039622
2" Grommet
For laminate side panels
(4) 051696
8-32 x 1" PHMS
(4) 0285
3/16 Flat Steel
Washer
(4) 021588
8-32 Keps Nut
Laminate
Flip-up Shelf
for Link Lectern
55385
Upper shelf
position
holes
Lower shelf position holes
Laminate Side Panel
(interior view)
Attaching to Laminate Side Panels:
1. Open the lectern door and remove the rack cube (if equipped).
2. From inside the lectern, use a drill with a 3/16"
drill bit and slowly drill out the corresponding
pre-drilled pilot holes located on the laminate
side panel. Figure 1B. Masking tape can be
used on the exterior to minimize chip-out.
Note: There are (2) holes needed for the upper
position, and (4) needed for the lower position.
15.25"W
[38.7 cm]
7"D
26"D
[17.8 cm]
[66 cm]
™
Phillips
screwdriver
Upper shelf
position
holes
Figure 1B
Drill with
3/16" drill bit
0120368R2 Page 1 of 2
