Spectrum Evolution 38906 Assembly Instructions

Assembly Instructions Assembly Instructions

Important

Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts
or accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 052510
Worksurface assembly
(15) 026064 (2) 041943
1/4-20 x 5/8" PHMS 1/4-20 Locknut
(2) 050524 (2) 021554
#8 x 3/4" PH TEK 1/4-20 x 50mm
screw JC bolt
1. Attach Brackets & Cord Channel
1. Place the worksurface assembly face-down onto a non-abrasive surface.
2. Attach the two Flip-top support brackets and Cord Channel with
1/4-20 x 5/8" PHM screws as shown in Figure 1.
(1) 044234
Cord channel
Evolution Corner Connector (30"D)
(2) 0102049
Z-bracket
(2) 036281 (2) 036207
Dual unit-to-unit Flip-top support
bracket bracket
(5) 1/4-20 x 5/8"
PHMS
Flip-top
support
brackets
38906
(1) 025039
4mm Hex wrench
Cord channel
Worksurface
assembly

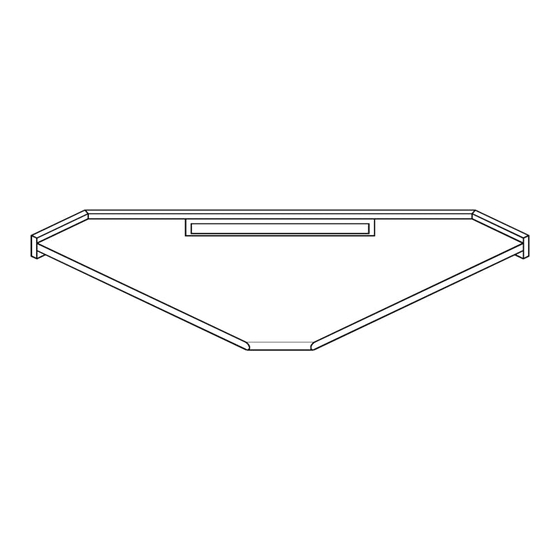

Figure 1
052525R5 Page 1 of 2
Phillips
screwdriver
or
Drill with
Phillips
driver
4mm Hex
wrench
(included)
