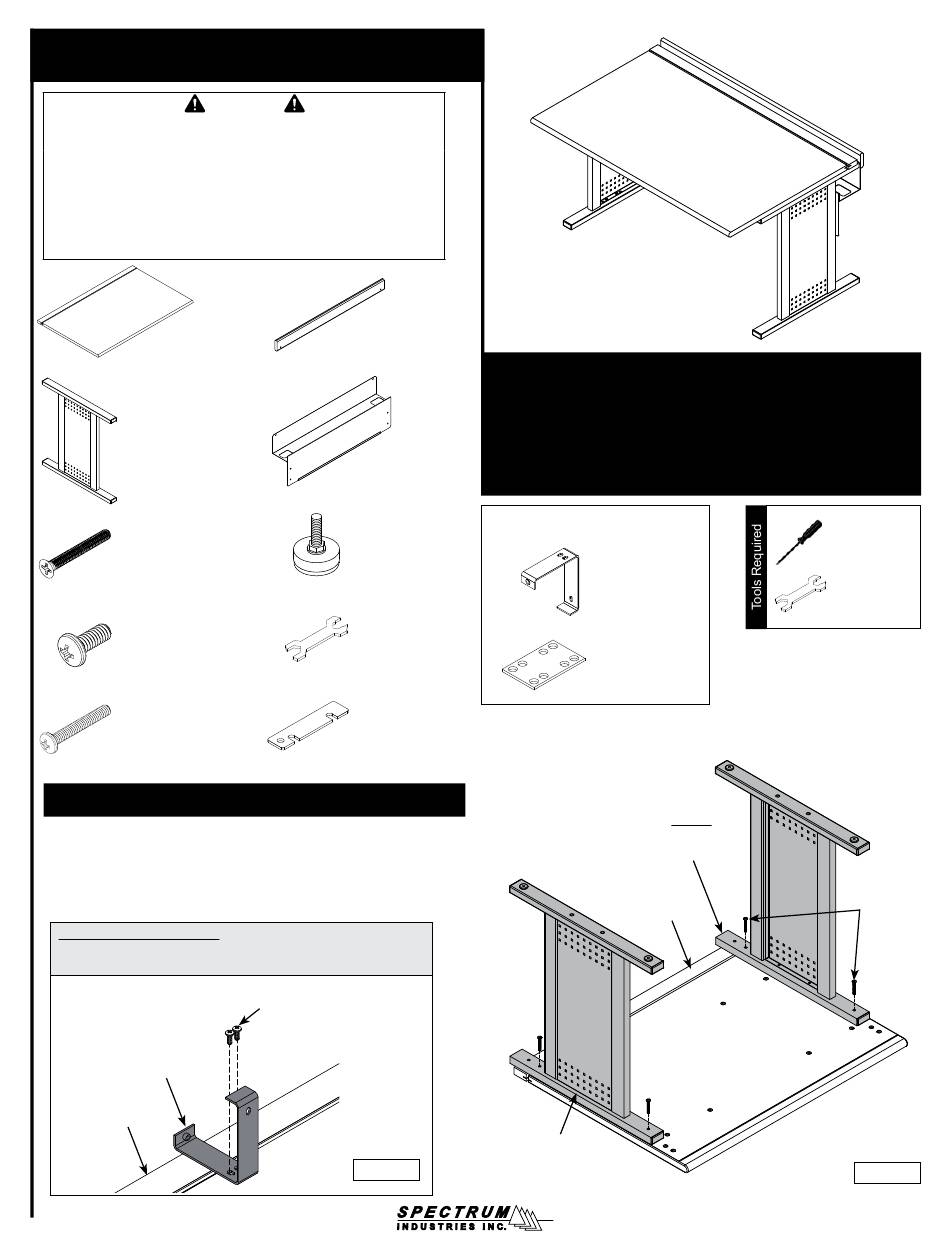

Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) Worksurface
(2) Leg
026011
1/4-20 x 2" FHMS
(2) 36", (3) 60", 72"
026064 (black)
043493 (putty)
1/4-20 x 5/8" PHMS
(10) 36", (12) 60", 72"
(4) 041289
1/4-20 x 1-3/4" PHMS
1. Attach legs to worksurface
1. Place the worksurface face-down onto a non-abrasive surface.
2. Align the legs with the mounting holes, and install 1/4-20 x 1-3/4"
PHM screws into the legs as shown. Figure 1A.
3. Install 1/4-20 x 1-3/4" PHM screws into the legs as shown, but do
not tighten the screws completely yet.
For 60" & 72" desks only:
Orient and attach the chair rail bracket to the center of the worksur-
face as shown in Figure 1B with (2) 1/4-20 x 5/8" PHM screws.
Chair rail bracket
Flip-top
(1) Chair rail
(1) Cord channel /
Modesty panel
(4) 037779
5/16-18 x 1" Glide
(1) 025069
Glide wrench
052463
Unit-to-unit bracket
(2) 36", (1) 60", 72"
1/4-20 x 5/8" PHMS
(2 required)
Worksurface
Figure 1B
Evolution Desk 30"D
38901 - 36"W
38904 - 60"W
38905 - 72"W
38930 - 36"W Stand-up
(for 60", and 72" desks only)
(1) 051024
Chair rail bracket
(1) 036281
Dual unit-to-unit
bracket
The side of the leg without
the end cap should be on the
worksurface flip-top side
Flip-top
The legs should be
attached with the side
panels flush with the legs.
38901ADJ - 36"W
38904ADJ - 60"W
38905ADJ - 72"W
Phillips
screwdriver
Glide wrench
1/4-20 x
1-3/4" PHMS
(4 required)
Worksurface
052519R6 Page 1 of 4
Figure 1A
