Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0152133
44"W x 30"D
Worksurface w/ support
(1) 052547 - Right Leg
(1) 052544 - Left Leg
(2) 026011
1/4-20 x 2" FHMS
(4) 026064
1/4-20 x 5/8" PHMS
(1) 0167153
Unit-to-unit bracket
1
Attach legs to worksurface
1. Place the worksurface face-down onto a non-abrasive surface.
2. Align the legs with the mounting holes, and install (2) #14 x 7/8"
PHSM screws into each leg but do not tighten completely yet.
Figure 1.
(1) 052469
Chair rail
(1) 052468
44" Cord channel /
Modesty panel
(4) 0101382
#14 x 7/8" PHSM
(4) 037779
5/16-18 x 1"
Glide
(1) 025069
Glide wrench
The side of the leg with
the threaded hole should
be on the flip-top side

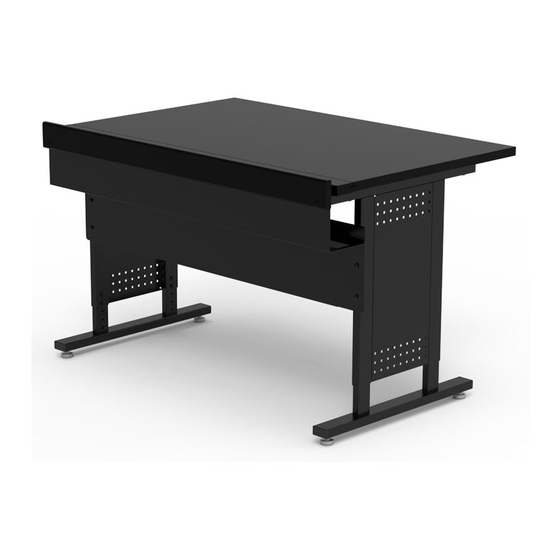

Esports Evolution Desk (44"W)
Assembly tip: Do not tighten component
fasteners completely until all have been
installed. Keeping them loose will help with
alignment between parts during assembly.
#14 x 7/8" PHSM
(2 per leg)
Right leg
Flip-top
22860
X2
Left leg
'U' Channel
0191978R4 Page 1 of 4
Figure 1
Advertisement
Related Manuals for Spectrum Esports Evolution 22860
Summary of Contents for Spectrum Esports Evolution 22860
- Page 1 800-235-1262, 715-723-6750 Thank you for purchasing Spectrum products! (1) 0152133 (1) 052469 44”W x 30”D Chair rail Worksurface w/ support Esports Evolution Desk (44”W)
- Page 2 Install cord channel / modesty panel and glides 1. Orient the modesty panel/cord channel as shown and attach to the legs with (4) 1/4-20 x 5/8” PHM screws. Figure 2.1. 2. Install the (4) glides to the bottom of the legs. The glides can be Glides adjusted later to keep the desk level on uneven surfaces.
- Page 3 Attach chair rail 1. Carefully flip the desk upright-this will require at least two people. 2. Attach the chair rail with (2) 1/4-20 x 2” FHM screws as shown. Note the chair rail should extend above the worksurface, and the countersunk holes should be on the outside.
- Page 4 P.A.C.E. program (Product Assur- ance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty from the date of delivery.
