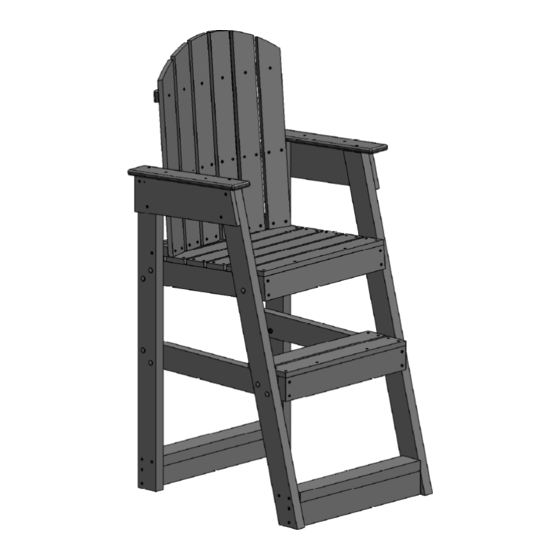

- Page 1 Mendota 30”-36”-48” Portable Lifeguard Chair Owner’s Manual Assembly and Installation 7100 Spectrum Lane Missoula, Montana 59808 406.542.9781 ~ Fax: 406.542.1158 800.791.8056 ~ www.spectrumproducts.com...
- Page 2 Mendota 36” Assembly: Tools Required: Quad Head Bit 1/2” Open End Wrench 1/2” Socket and Ratchet Mallet 1) Assemble Main frame together as shown on one side in Detail A, making sure to leave hardware loose, using: 8 - 5/16” x 3 ½” Carriage bolts 8 - 5/16”...
- Page 3 3) Tighten all hardware from step 1 4) As shown in Detail C, attach seat back to seat bottom (please use existing holes) using: 3 –1 ½” Quad Head Screws 2 ½” Quad Head Screws 1 ½” Quad Head Screws DETAIL D DETAIL C 5) Attach the seat back as shown in Detail D making sure to screw into...
- Page 4 6) Then attach armrest as shown in Detail E using: 4 –1 ½” Quad Head Screws DETAIL E 7) Attach wheels as shown if applicable using; 2 - BOLT CB 5/16"-18x3 1/2" TYPE 316 4 - FLAT WASHER 5/16" 2 - 5/16" NYLOCK NUT 800.791.8056 ~ www.spectrumproducts.com...
