Altronix Pace1PRMT Installation Manual page 3

Pace1PRM
Fig. 1
Single UTP from
Pace1PTM
CAT5 or higher
from Pace1PTM
Green LED
indicates PoE
being transmitted
to Pace1PTM
*Note: Caution, once PoE connection is established between Pace1PRM and Pace1PTM, disconnection from
Pace1PTM will not disable the PoE output voltage on the Pace1PRM. Although the Pace1PTM can be reconnected,
caution should be taken not to connect the CAT5e or single UTP wiring from Pace1PRM to any non-PoE device.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

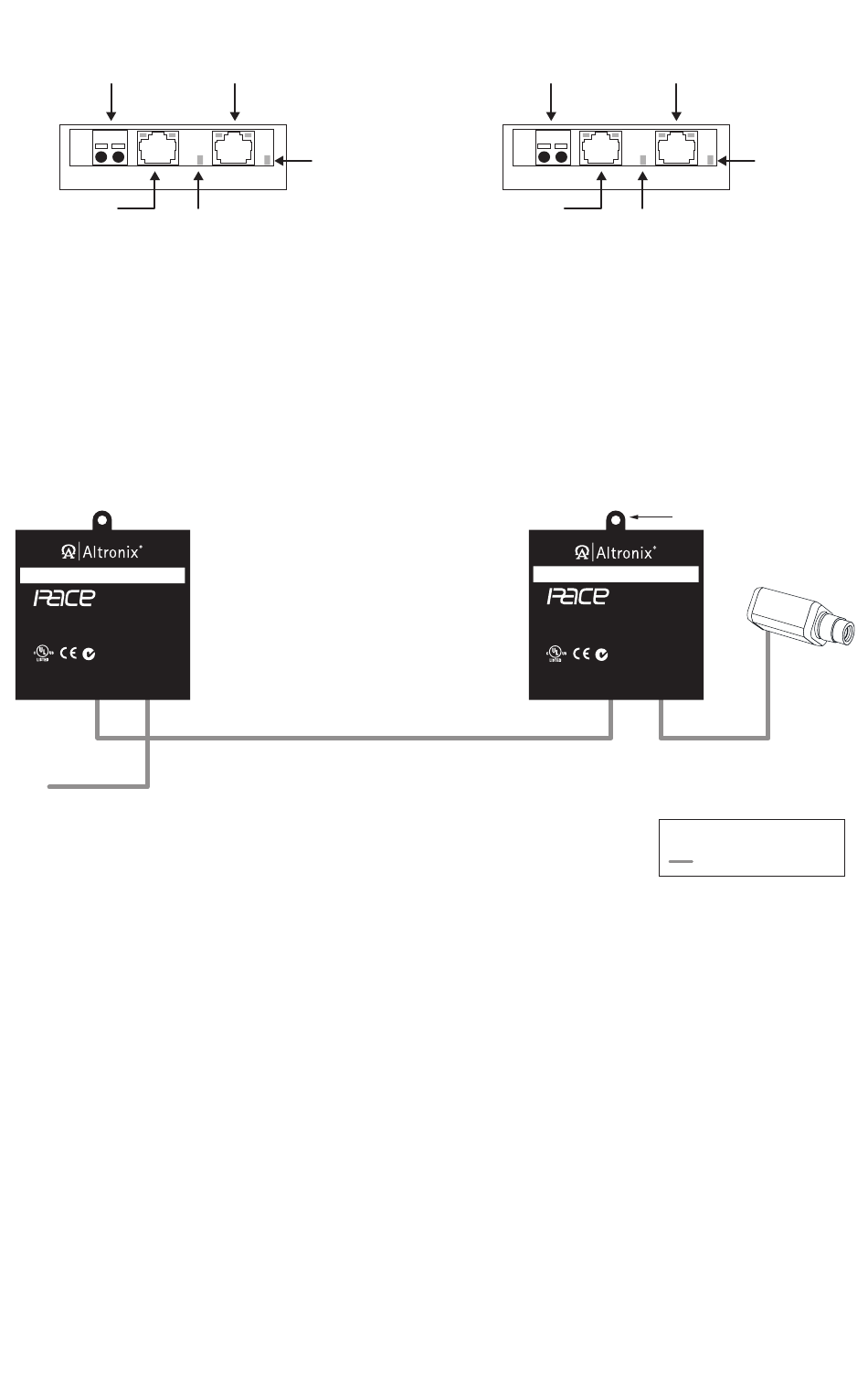

Single PoE Camera Connection Utilizing Pace1PRM and Pace1PTM:
Fig. 2
Pace1PRM
Pace1PRM - Receiver
IP-UTP Receiver
Passes PoE/PoE+
RJ45 LEDs Yellow - Activity
Green - Speed
Green LED Power and PoE
www.altronix.com
Z1409
I.T.E. 43KC
Output Input
UTP RJ45 PoE PoE
Link Link LED Input
100m max.
Powered Switch
or NetWay MidSpan
Pace1PRMT Installation Guide
Structured Cable
to Midspan/Endspan
indicates PoE
Present from
Midspan/Endspan
PoE
LED
PoE+ over CAT5e up to 500m max.
from Pace1PRM
Green LED
CAT5 or higher
from Pace receiver
Pace1PTM
Single UTP Structured Cable from
Camera/Device
Green LED
indicates PoE
received
from Pace1PRM
Fig. 2a
Pace1PTM
IP-UTP TRANSCEIVER
Transceiver
Passes PoE/PoE+
RJ45 LEDs Yellow - Activity
Green - Speed
Green LED Power and PoE
www.altronix.com
Z1409
I.T.E. 43KC
Input
UTP RJ45 PoE
PoE
Link Link Out
LED
PoE compliant
100m max.
Legend:
Green LED
indicates PoE
transmitted to
Camera/Device
Mounting Hole
PoE Camera
Output
PoE
LED
Structured Cable
