Shade N' Shelters Cedar Falls CF/GAZ1012 Owner's Manual

10' x 12' wood hard top pavilion style gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual

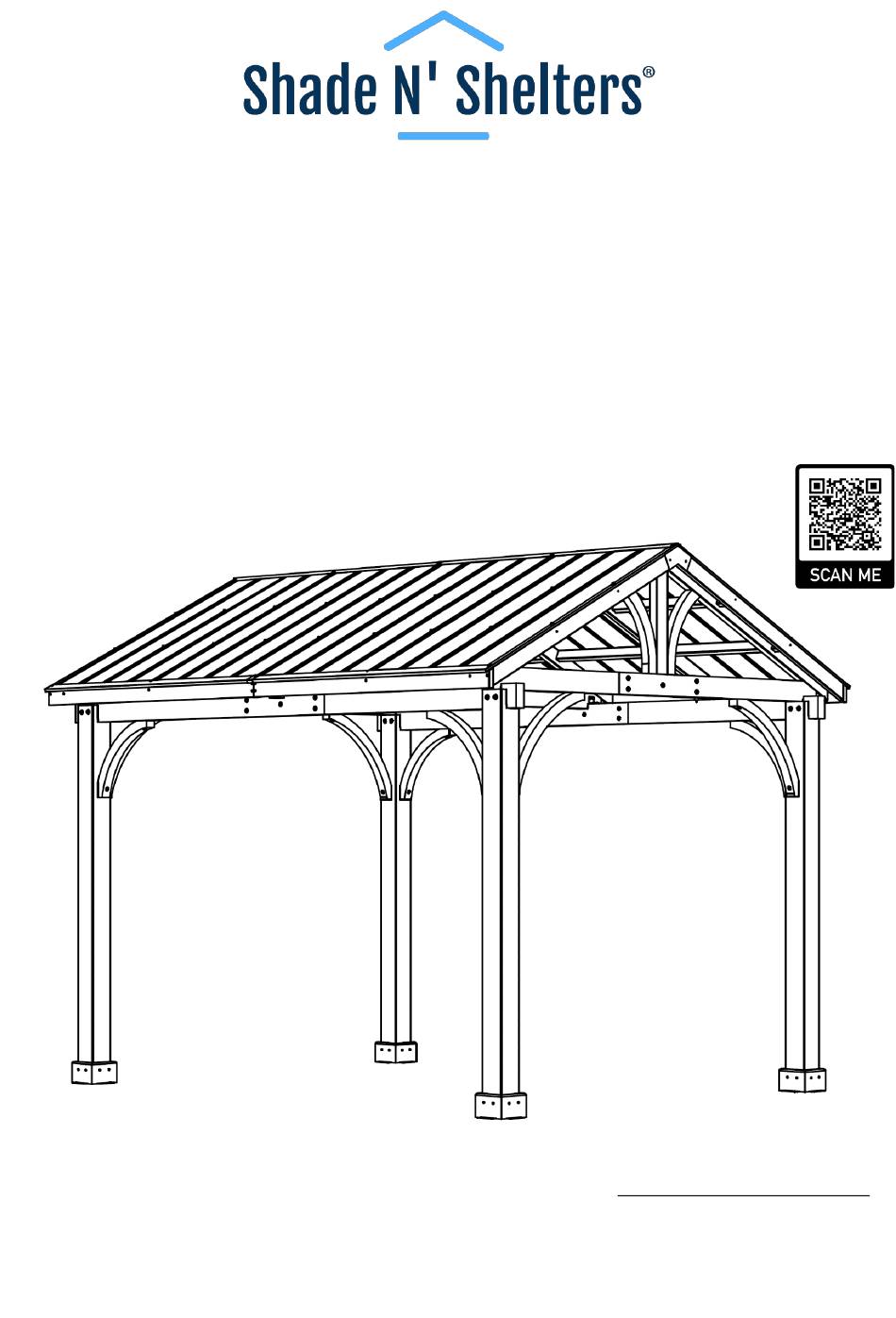

10' x 12' Wood Hard Top Pavilion Style Gazebo
Note: This gazebo frame is designed to be used as a permanent fixture. The gazebo cover is
recommended when not in use or storing for winter. Please visit https://shadenshelters.com to
purchase.
Owner's Manual
Cedar Falls
Model Number: CF/GAZ1012
SKU Number: 101815182
Scan For Video
Assembly Instructions!
1 of 32

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cedar Falls CF/GAZ1012 and is the answer not in the manual?

Questions and answers

Related Manuals for Shade N' Shelters Cedar Falls CF/GAZ1012

Summary of Contents for Shade N' Shelters Cedar Falls CF/GAZ1012

  • Page 1 Owner’s Manual Cedar Falls 10’ x 12’ Wood Hard Top Pavilion Style Gazebo Model Number: CF/GAZ1012 SKU Number: 101815182 Scan For Video Assembly Instructions! Note: This gazebo frame is designed to be used as a permanent fixture. The gazebo cover is recommended when not in use or storing for winter.

  • Page 2: Parts List

    Parts List Cedar Falls 10’ x 12’ Wood Pavilion Letter Illustration Description Qty. Post Post Base Cover Long Crossbar - Left Long Crossbar - Right Short Crossbar - Left Short Crossbar - Right Short Crossbar - Left Short Crossbar - Right Roof Rafter Roof Rafter 2 of 32...
  • Page 3 Letter Illustration Description Qty. Roof Rafter Corner Support Corner Support Roof Rafter Roof Support Rafter Roof Rafter Roof Rafter Roof Rafter Side Rafter Side Rafter Roof Panel Rood Panel Trim 3 of 32...
  • Page 4 Letter Illustration Description Qty. Rood Panel Trim Roof Cap Roof Panel Trim Roof Panel Trim L Shape Bracket Support Wood V Shape Bracket Base Plate Roof Plate Stake M10 x 140mm Bolt M8 x 60mm Bolt 4 of 32...
  • Page 5 Letter Illustration Description Qty. M5 x 40mm Screw M5 x 25mm Screw M5 x 50mm Screw M5 x 40mm Screw M5 x 40mm Screw M10 Washer M8 Washer - Large M8 Washer - Small M5 Plastic Washer Open Wrench Socket Wrench 5 of 32...
  • Page 6 Assembly Instructions Cedar Falls 10’ x 12’ Wood Pavilion Note: For video instructions please visit: https://shadenshelters.com/10-x-12-cedar-falls-wood-pavilion Important: ⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury. Before assembling the product, remove all protective materials, hardware kit(s), and identify all ⚫...
  • Page 7 Frame Assembly Overview 7 of 32...
  • Page 8 Step 1: Attach the Base Plate (W) to Posts (A and B) using Screws (CC). Attach the Base Cover (C) to the Posts (A and B) using Screws (EE). See Figure 1. Repeat for remaining Posts (A). Figure 1 8 of 32...
  • Page 9 Step 2: Attach Long Crossbars (D1 and D2) together using Bolts (BB) and Washers (II). Tighten all Bolts. See Figure 2. Repeat for remaining Long Crossbars (D1 and D2). Figure 2 9 of 32...
  • Page 10 Step 3: Attach Short Crossbars (E1 and E2) together using Bolts (BB) and Washers (II). Tighten all Bolts. See Figure 3. Repeat for remaining Short Crossbars (E1 and E2). Figure 3 10 of 32...
  • Page 11 Step 4: Attach Short Crossbars (E3 and E4) together using Bolts (BB) and Washers (II). Tighten all Bolts. See Figure 4. Figure 4 11 of 32...
  • Page 12 Step 5: Insert Roof Rafters (F and G) into assembled Short Crossbars (E1 and E2). Insert the Roof Rafter (H) into Short Crossbars (E1 and E2) and Roof Rafter (F). Secure Roof Rafter (F and H) to Short Crossbars (E1 and E2) using Screw (FF). Attach Roof Rafter (H) to Roof Rafter (G) using Screws (EE).
  • Page 13 Step 6A: Insert Roof Rafters (F and G) into assembled Short Crossbars (E3 and E4). Insert the Roof Rafter (H) into the Short Crossbars (E4 and E3) and Roof Rafter (F). Secure the Roof Rafter (F and H) to Short Crossbars (E3 and E4) using Screw (FF). See Figure 6. Step 6B: Attach the Roof Rafter (H) to Roof Rafter (G) using Screws (EE).
  • Page 14 Step 7: Attach the assembled Long Crossbeams (D1 and D2) to Posts (A and B) using Bolts (AA) and Washers (HH). Repeat for opposite side. See Figure 7. Figure 7 14 of 32...
  • Page 15 Step 8: Insert the assembled trusses on top of the Long Crossbars (D1 and D2). Attach the L-Shaped Bracket (T) to the Short Crossbars (E1 and E2) and (D1 and D2) using screws (CC). See Figure 8. Repeat for opposite side. Figure 8 15 of 32...
  • Page 16 Step 9: Attach the assembled truss (E3 and E4) to the assembled long Crossbars (D1 and D2) using the L- Shaped Bracket (T) and Screws (CC). See Figure 9. Note: You will use four L-Shaped Brackets for this step. Figure 9 16 of 32...
  • Page 17 Step 10: Attach the Corner Supports (I) to the 10-foot side and attach the Corner Supports (J) to the 12- foot side using Bolts (BB) and Washers (JJ). Tighten all Bolts. See Figure 10. Repeat for remaining Corner Supports (I and J). Figure 10 17 of 32...
  • Page 18 Step 11: Insert the Roof Rafters (M1 and M2) into the top of the trusses. Attach the Roof Rafters (M1 and M2) to the Middle truss using screws (EE). See Figure 11. Figure 11 18 of 32...
  • Page 19 Step 12: Insert the Support Wood (U) into the Long Crossbars (D1 and D2). See Figure 12. Figure 12 19 of 32...
  • Page 20 Step 13A: Attached Wood Support (U) to Long Crossbars (D1 and D2) using Screws (EE). Insert Roof Rafter (K) into the Wood Support (U). Attach the Roof Rafter (K) to the Roof Rafters (M) using Screws (EE). See Figure 13-1 and 13-3. Note: Make sure to do this simultaneously with the opposite side.
  • Page 21 Step 14: Attach Roof Support Rafters (L) to the Roof Rafters (H and K) using Screws (EE). See Figure 14- 1, 14-2 and 14-3. Repeat for remaining Roof Support Rafters (L). Figure 14 21 of 32...
  • Page 22 Step 15: Attach the Roof Rafter (N) to the outside of Roof Support Rafters (L) and Roof Rafters (M1 and M2) using Screws (EE). See Figure 15-1 and 15-2. Figure 15 22 of 32...
  • Page 23 Step 16: Attach the Side Rafter (O1 and O2) to the Roof Rafters (H and K) using Screws (EE). See Figure 16-1 and 16-2. Figure 16 23 of 32...
  • Page 24 Note: See Figure 17-1 before drilling in Screws (GG). Step 17: Attach Roof Panels (P) to Roof Support Rafters (L) using Screws (GG) and Washers (KK). See Figure 17-2. Repeat for opposite side. Figure 17 24 of 32...
  • Page 25 Note: Make sure the right panel overlaps the left panel. Step 18A: Attach the Roof Panel (P) to the Roof Support Rafters (L) using Screws (GG) and Washers (KK). See Figure 18-2. Repeat for opposite side. Step 18B: Place the Roof Cap (R) on top of the Roof Panels (P) and attach using Screws (GG) and Washers (KK).
  • Page 26 Note: Make sure the right panel overlaps the left panel. Step 19A: Attach the Roof Panel (P) to the Roof Support Rafters (L) using Screws (GG) and Washers (KK). See Figure 19-2. Repeat for opposite side. Step 19B: Place the Roof Cap (R) on top of the Roof Panels (P) and attach using Screws (GG) and Washers (KK).
  • Page 27 Note: Make sure the right panel overlaps the left panel. Step 20A: Attach the Roof Panel (P) to the Roof Support Rafters (L) using Screws (GG) and Washers (KK). See Figure 20-1 and 20-2. Repeat for opposite side. Step 20B: Place the Roof Cap (R) on top of the Roof Panels (P) and attach using Screws (GG) and Washers (KK).
  • Page 28 Step 21: Attach the Roof Cap (R) and Roof Panel Trim (Q1 and Q2) to the sides of the Roof Frame using Screws (GG) and Washers (KK). See Figure 21-1 and 21-2. Note: The Roof Panels (P) must slide into the Roof Panel Trim (Q1 and Q2). Repeat for opposite side.
  • Page 29 Step 22: Attach the Roof Plate (X) to the Roof Rafters (N) using Screws (DD). See Figure 22. Repeat for opposite side. Figure 22 29 of 32...
  • Page 30 Step 23A: Attach the Roof Panel Trim (S1 and S2) to the sides of the Roof Frame using Screws (GG) and Washers (KK). See Figure 23-1 and 23-2. Note: The Roof Panels (P) must slide into the Roof Panel Trim (Q1 and Q2). Repeat for opposite side.
  • Page 31 Step 24: Secure the Gazebo by inserting the Ground Stakes (Y) into Base Plate (W). Repeat for all corners. See Figure 24. Your Cedar Falls 10’ x 12’ Wood Gazebo is complete and ready to use. Figure 24 Note: Please see our video for additional assembly assistance: https://shadenshelters.com/10-x-12-cedar-falls-wood-pavilion 31 of 32...

  • Page 32: Warranty

    Maintenance & Care Maintenance is required for all outdoor gazebo/pergola/pavilion. Inspect hardware thoroughly before use and during the season to make sure bolts are securely fastened. Remove fabric canopy from soft top gazebo and store out of the elements when not in use or during hazardous weather conditions (wind, rain, snow, etc.). Remove all snow from the hard top gazebo/pavilion.
