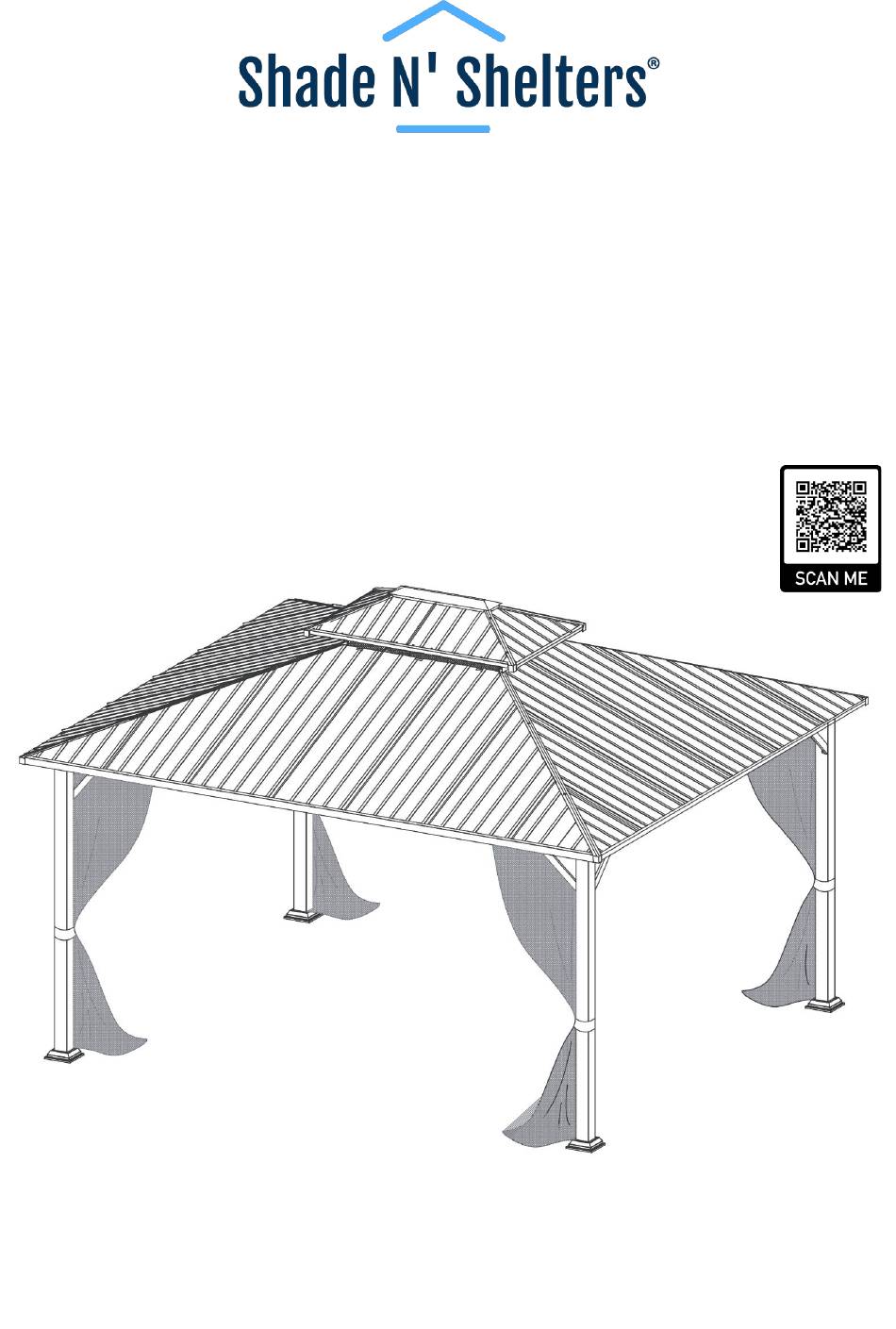

Owner’s Manual Duncan 12’ x 14’ Hard Top Gazebo Model Number: DUN/GAZ1214 Scan For Video Assembly Instructions! Note: This gazebo is designed to be used as a permanent fixture. 1 of 32...
Parts List Duncan 12’ x 14’ Hard Top Gazebo Letter Illustration Description Qty. Corner Post Base Cover Base Plate Short Left Lintel Short Right Lintel Long Left Lintel Long Right Lintel Lintel Connector Lintel Corner Support Bar Lintel Corner Support Bar Connector Bracket 2 of 32...
Page 3
Letter Illustration Description Qty. Lintel Bracket - Top Lintel Bracket - Top Lintel Cover – Corner Lintel Cover Main Roof Corner Support Main Roof Vertical Center Support Main Roof Center Frame - Short Connector Main Roof Center Frame - Long Connector Roof Vent - Corner Support Frame Roof Vent - Top Support Frame Roof Vent Hook...
Page 4
Letter Illustration Description Qty. Main Roof Lower Horizontal Support Bar - Left Main Roof Lower Horizontal Support Bar - Center Main Roof Lower Horizontal Support Bar - Right Main Roof Middle Horizontal Support Bar - Left Main Roof Middle Horizontal Support Bar - Right Main Roof Upper Horizontal Support Bar - Left...
Page 5
Letter Illustration Description Qty. Roof Vent Side Trim - Short Side Roof Vent Side Trim - Long Side Main Roof Trim - Left Side Main Roof Trim - Right Side Main Roof Trim - Middle Short Mosquito Netting Tube Long Mosquito Netting Tube Mosquito Netting Connecting Tube Mosquito Netting Connector Roof Vent and Main Roof Trim Connector...
Page 6
Letter Illustration Description Qty. Roof Vent Panel - Long Side (Left) Roof Vent Panel - Long Side (Right) Main Roof Panel – Long Side / Short Side Main Roof Panel – Long Side / Short Side Main Roof Panel – Long Side / Short Side Main Roof Panel –...
Page 7
Letter Illustration Description Qty. M6 x 15mm Bolt M6 x 25mm Bolt with Plastic Washer M6 x 35mm Bolt with Plastic Washer M6 x 35mm Bolt with Steel Washer M6 x 45mm Bolt with Steel Washer M6 x 25mm Bolt with Steel Washer and M6 x 30mm Bolt with Steel Washer and M6 x 52mm Bolt with Steel Washer &...
Page 8
Letter Illustration Description Qty. #4 Allen Wrench Open Wrench #5 Allen Wrench Ground Stake 8 of 32...
Page 9
Assembly Instructions Duncan 12’ x 14’ Hard Top Gazebo Note: For video instructions please visit: https://shadenshelters.com/12x14-duncan-gazebo Important: ⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury. Before assembling the product, remove all protective materials, hardware kit(s), and identify all ⚫...
Page 10
Step 2A: Attach Short Lintel (D2) to the Lintel Connector (E) using Bolts/Washers (AA). See Figure 2-1. Step 2B: Insert the Lintel Connector (E) into the Lintel Cover (H2) and the Short Lintel (D1). See Figure 2-2 Step 2C: Attach the Lintel Cover (H2) and the Short Lintels (D1 and D2) using Bolts/Washers (AA). See Figure 2-3.
Page 11
Step 3A: Attach the Lintel Bracket (G2) to the Long Lintel (D4) using Bolts/Washers (AA). Tighten all Bolts. Insert the Lintel Connector (E) into the Long Lintel (D4). See Figure 3-1. Insert the Lintel Connector (E) into the Lintel Cover (H2). Attach the Top Lintel Bracket (G4) to the top of the Lintel Cover (H2) using Bolts/Washers (AA).
Page 12
Step 4: Attach Long Lintels (D3 and D4) to the outside of Corner Post (A) using Bolts (BB). See Figure 4. Tighten all Bolts. Repeat for opposite side Long Lintels (D3 and D4) and Corner Posts (A). Figure 4 Step 5: Attach Short Lintels (D1 and D2) to the outside of the Corner Post (A) using Bolts (BB).
Page 13
Step 6A: Attach Support Bars (F1) to Corner Posts (A) and Lintels (D1 and D3). Attach Support Bars (F2) to Corner Posts (A) and Lintels (D2 and D4). See Figure 6-1. Tighten all Bolts. Step 6B: Attach Corner Lintel Cover (H1) to Lintels (D1 and D4) and (D2 and D3) using Bolts (AA). Repeat for all Corners.
Page 14
Step 7: Assemble the Main Roof Center Frame by inserting the Long Connector (J2) into the Short Connector (J1) and attach using Bolts (AA). See Figure 7-1. Repeat for opposite side. Tighten all Bolts. See Figure 7-2. Figure 7-1 Figure 7-2 14 of 32...
Page 15
Step 8A: Attach the Mosquito Netting Connector (U4) to the Main Roof Corner Support (I1) using Bolts/Washers (JJ). See Figure 8-1. Tighten all Bolts. Step 8B: Attach the Main Roof Corner Support (I1) to Short Connector (J1) on the Main Roof Center Frame using Bolts/ Washers (AA).
Page 16
Step 9: Attach the Main Roof Vertical Center Support (I2) to the Long Connector (J2) using Bolts/Washers (AA). See Figure 9-1. Attach the Main Roof Vertical Center Support (I2) to the Top Lintel Bracket (G2) using Bolts (KK). Tighten all Bolts. See Figure 9-2 and 9-3. Repeat for remaining Main Roof Vertical Center Supports (I2) Figure 9-1 Figure 9-2...
Page 17
Step 10A: Attach the Main Roof Vertical Center Support (I2) to the Short Connectors (J1) using Bolts/Washers (AA). See Figure 10-1. Step 10B: Insert the Mosquito Netting Connecting Tubes (U3) into the Top Lintel Brackett (G4). Secure by inserting Bolt/Washer (EE) through the Mosquito Netting Connecting Tubes (U3) and attaching to the Main Roof Vertical Support (I2).
Page 18
Step 10C: Insert the Mosquito Netting Connecting Tubes (U3) into the Top Lintel Bracket (G4) and attach by inserting Bolts/Washers/Nuts (HH). Tighten all Bolts. See Figure 10-3. Note: this is only for the 14-foot side. Note: Use the Short Mosquito Netting Tubes (U1) for the 12’ side and the Long Mosquito Netting Tubes (U2) for the 14’...
Page 19
Step 11A: Assemble the Roof Vent Frame by attaching the Roof Vent Corner Support (J3) to the Roof Vent Support Frame (K1) using Bolts/Washers/Nuts (II). See Figure 11-1. Step 11B: Repeat for all corners. Tighten all Bolts. See Figure 11-2. Step 11C: Screw in Roof Vent Hook (K2) to Roof Vent Support Frame (K1).
Page 20
Step 12: Secure the Roof Vent Frame to the Main Roof Center Frame by inserting the Roof Vent Corner Supports (J3) into the posts on the Short Connector (J1) of the Main Roof Center Frame and attach using Bolts/Washers (AA). Repeat for remaining corners. Tighten all Bolts. See Figure 12-1 and 12-2.
Page 21
Step 13: Attach the sides of the Roof Vent Frame by connecting the Short Side (P1) and Long Side (P2) to the Roof Vent Corner Support (J3) using Bolts/Washers (AA). See Figure 13-1 and Figure 13-2. Repeat for remaining Short Side (P1) and Long Side (P2). Tighten all Bolts. Figure 13-1 Figure 13-2 21 of 32...
Page 22
ROOF VENT ASSEMBLY Note: Install Roof Vent Panels from Left to Right. The Right Panel must overlap the Left Panel. Each Bolt (CC) must be attached to Spacer (MM). Hand tightens only until all panels have been installed then tighten all bolts. Step 14A: Attach the Roof Vent Panel (W2) to Roof Vent Frame (P2) using Bolts/Washers (CC) and Spacer (MM).
Page 23
Step 15A: Attach the Short Roof Vent Side Trim (S1) and Long Roof Vent Side Trim (S2) to Roof Vent Support (J3) using Bolts/Washers (AA). Repeat for remaining sides. Tighten all Bolts. See Figure 15-1. Step 15B: Attach the Roof Vent Corner Trim (Q2) to the Roof Vent Corner Support Frame (J3) using Bolts/Washers (DD).
Page 24
Note: Make sure the holes on Support Bars (N1 and N2) are facing upwards. Step 16A: Attach the Support Bars (O1, N1, and M1) to the Main Roof Corner Support (I1) and Main Roof Vertical Center Support (I2) using Bolts/Washers (AA). See Figure 16-1 and 16-4. Step 16B: Attach the Support Bars (M2) to the Main Roof Vertical Center Supports (I2) using Bolts/ Washers (AA).
Page 25
MAIN ROOF PANELS - 14 FOOT SIDE Note: Install Main Roof Panels from Left to Right. The Right Panel must overlap the Left Panel. Each Bolt (CC) must be attached to Spacer (MM). Hand tightens only until all panels have been installed then tighten all bolts.
Page 26
MAIN ROOF PANELS - 12 FOOT SIDE Note: Install Main Roof Panels from Left to Right. The Right Panel must overlap the Left Panel. Each Bolt (CC) must be attached to Spacer (MM). Hand tightens only until all panels have been installed then tighten all bolts.
Page 27
Step 17E: Tighten all Bolts. Your roof is now completely assembled. See Figure 17-7 Figure 17-7 27 of 32...
Page 28
Step 18A: Attach the Roof Trim (T1 and T2) to the Main Roof Corner Support (I1) using Bolts (AA). See Figure 18-1. Step 18B: Secure Roof Trim (T1 and T2) to Main Roof Vertical Center Support (I2) on the 12-foot side of your gazebo using Trim Connector (V1) and Bolts/Washers (AA).
Page 29
Step 19A: CORNER TRIM: Attach the Main Roof Corner Trim (Q1) to Main Roof Corner Support (I1) using Bolts/Washers (DD). See Figure 19-1. Step 19B: UPPER CENTER TRIM: Attach the Main Roof Center Frame Trim (R1) to the Main Roof Center Frame (J1 and J2) using Bolts/Washers (AA).
Page 30
Step 20A: Attach the Roof Vent Mosquito Netting (Z) to the Velcro on Roof Vent Support Frame (J3) and secure with Roof Vent Mosquito Connector (V2) using Bolts/Washers (AA). Tighten all Bolts. See Figure 20-1 and 20-2. Step 20B: Attach the Mosquito Netting (Y) to the Mosquito Netting Hooks (LL). See Figure 20-3. Note: Use the inside rail for the Mosquito Netting.
Page 31
Step 21: Insert the Ground Stakes (QQ) into the Base Plate (C). See Figure 21-1. Repeat for all corners. Figure 21-1 Note: Please see our video for additional assembly assistance: https://shadenshelters.com/12x14-duncan-gazebo 31 of 32...
Maintenance & Care Maintenance is required for all outdoor gazebo/pergola/pavilion. Inspect hardware thoroughly before use and during the season to make sure bolts are securely fastened. Remove fabric canopy from soft top gazebo and store out of the elements when not in use or during hazardous weather conditions (wind, rain, snow, etc.). Remove all snow from the hard top gazebo/pavilion.
