Shade N' Shelters Granite Peak GP/GAZ1214 Owner's Manual

12' x 14' hard top gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual

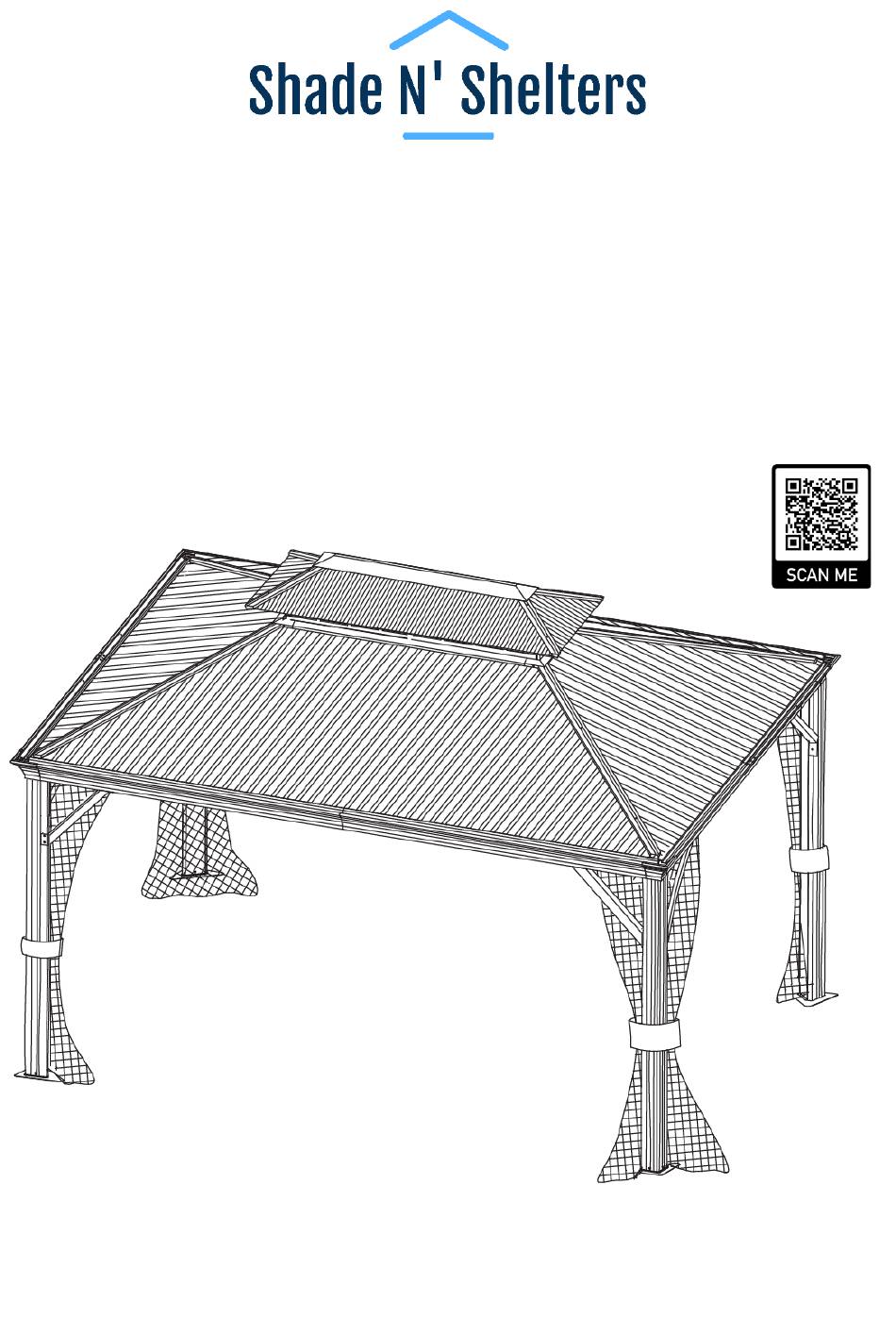

Owner's Manual
Granite Peak
12' x 14' Hard Top Gazebo
Model Number: GP/GAZ1214
Scan For Video
Assembly Instructions!
Note: This gazebo is designed to be used as a permanent fixture.
1 of 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the Granite Peak GP/GAZ1214 and is the answer not in the manual?

Questions and answers

Related Manuals for Shade N' Shelters Granite Peak GP/GAZ1214

Summary of Contents for Shade N' Shelters Granite Peak GP/GAZ1214

  • Page 1 Owner’s Manual Granite Peak 12’ x 14’ Hard Top Gazebo Model Number: GP/GAZ1214 Scan For Video Assembly Instructions! Note: This gazebo is designed to be used as a permanent fixture. 1 of 24...

  • Page 2: Parts List

    Parts List Granite Peak 12’ x 14’ Hard Top Gazebo Letter Illustration Description Qty. Corner Post Corner Post Base Plate Short Lintel Short Lintel Long Lintel Long Lintel Lintel Corner Support Bar Lintel Bracket Lintel Connector – Small Lintel Connector - Large Main Roof Corner Support 2 of 24...
  • Page 3 Letter Illustration Description Qty. Main Roof Vertical Center Support Main Roof Center Frame – Short Connector Main Roof Center Frame - Long Connector Roof Vent - Corner Supports Roof Vent - Center Support Roof Vent Hook Roof Vent - Top Trim Main Roof –...
  • Page 4 Letter Illustration Description Qty. Roof Vent Frame – Short Sides Roof Vent Frame – Left Sides Main Roof Corner Trim Roof Vent Corner Trim Main Roof Center Frame Trim - Long Sides Roof Vent Side Trim - Short Sides Roof Vent Side Trim - Long Sides Lintel Cover - Corner Lintel Cover - Center Main Roof Panel...
  • Page 5 Letter Illustration Description Qty. Main Roof Panel Main Roof Panel Main Roof Panel Main Roof Panel Roof Vent Panel - Short Side Roof Vent Panel - Long Side (Left) Roof Vent Panel - Long Side (Right) Mosquito Netting M6 x 15mm Bolt with Steel Washer M8 x 15mm Bolt with Steel Washer M6 x 15mm Bolt with Plastic Washer M6 x 15mm Bolt...
  • Page 6 Letter Illustration Description Qty. M6 x 25mm Bolt with Plastic Washer M6 x 35mm Bolt with Plastic Washer M6 x 40mm Bolt with Plastic Washer M6 x 50mm Bolt with Plastic Washer M6 x 55mm Bolt with Flat Washer & Nut Mosquito Netting Hook Spacer Ground Stake...
  • Page 7 Assembly Instructions Granite Peak 12’ x 14’ Hard Top Gazebo Note: For video instructions please visit: https://shadenshelters.com/12x14-granite-peak-gazebo Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
  • Page 8 Step 2A: Insert sixteen Mosquito Netting Hooks (JJ) into the channel of each Long Lintel (D2). See Figure 2-1. Note: The extra channel is for optional privacy curtain. Available at https://shadenshelters.com/ Step 2B: Attach Lintel Connector Large (G2) to Long Lintel (D2) using Bolts (BB). See Figure 2-2 Step 2C: Attach Long Lintel (D1) to Lintel Connector (G2) using Bolts (BB).
  • Page 9 Step 3A: Attach Corner Posts (A) to end of Long Lintels (D1 and D2) first with Bolts (AA) then with Bolts (DD). Tighten all Bolts. See Figure 3-1. Step 3B: Repeat for opposite side Long Lintels (D1 and D2) and Corner Posts (A). See Figure 3-2. Figure 3-1 Figure 3-2 9 of 24...
  • Page 10 Step 4A: Attach Corner Posts (A) to Short Lintel (C1 and C2) first with Bolts (AA) then with Bolts (DD). Repeat for opposite side Short Lintels (C1 and C2). See Figure 4-1. Step 4B: Attach Support Bars (E) to Lintels (C1 and D2) and Corner Post (A) with Bolts (AA). See Figure 4-2.
  • Page 11 Step 5A: Attach Corner Lintel Cover (S1) to Long Lintel (D1) and Short Lintel (C2) with Bolts (AA). Repeat for all corners. Tighten all Bolts. See Figure 5-1. Step 5B: Attach Center Lintel Cover (S2) to Long Lintels (D1 and D2) and Short Lintels (C1 and C2). Tighten all Bolts.
  • Page 12 Step 6A: Assemble the Main Roof Center Frame by inserting the Long Connector (J2) into the Short Connector (J1) and attach with Bolts (AA). See Figure 6-1. Step 6B: Repeat for opposite sides and ends. Tighten all Bolts. See Figure 6-2. Figure 6-1 Figure 6-2 12 of 24...
  • Page 13 Step 7A: Assemble the Main Roof Corner Supports (H) to the Short Connector (J1) on the Main Roof Center Frame and then to the Corner Posts (A) using Bolts (AA). See Figure 7-1. Note: You will need a second person to hold the Main Roof Center Frame while attaching the Main Roof Corner Supports (H).
  • Page 14 Step 7C: Attach the Main Roof Vertical Center Supports (I) to the Main Roof Center Frame (J1 and J2) and the Lintel Brackets (F) using Bolts (AA). Hand Tighten Only. See Figure 7-3. Step 7D: Repeat for each side. Tighten all Bolts. See Figure 7-4 Figure 7-3 Figure 7-4 14 of 24...
  • Page 15 Step 8A: Assemble the Roof Vent Frame by attaching Roof Vent Corner Support (K1) to Roof Vent Center Support (K2) using Bolts (II). See Figure 8-1. Step 8B: Screw in Roof Vent Hook (K3) into Roof Vent Center Support (K2). See Figure 8-2. Step 8C: Repeat for all corners.
  • Page 16 Step 9A: Attach the sides of the Roof Vent Frame by connecting the Short Side (P1) and Long Side (P2) to the Roof Vent Corner Support (K1) using Bolts (AA). See Figure 9-1. Step 9B: Repeat for remaining Short Side (P1) and Long Side (P2). Tighten all Bolts. Step 9C: Secure the Roof Vent Frame to the Main Roof Center Frame by inserting the Roof Vent Corner Supports (K1) into the post on the Short Connector (J1) of the Main Roof Center Frame and attach using Bolts (AA).
  • Page 17 Step 10A: Assemble Roof Vent Panels by placing Left Roof Vent Panel (U2) on the Roof Vent Frame then placing the Right Roof Vent Panel (U3) on the Roof Vent Frame and secure to Long Side of the Roof Vent Frame (P2) using Bolt (CC). Note: The Right Roof Vent Panel (U3) must overlap the Left Roof Vent Panel (U2).
  • Page 18 Step 10C: Repeat for opposite long and short sides. Tighten all Bolts. See Figure 10-3. Step 10D: Attach the Short Roof Vent Trim (R1) and Long Roof Vent Trim (R2) to the Sides of Roof Vent Frame (P1 and P2) using Bolts (AA). Repeat for all sides. Tighten all Bolts. See Figure 10-4. Figure 10-3 Figure 10-4 18 of 24...
  • Page 19 Step 11A: Attach the Roof Vent Corner Trim (Q2) to the Roof Vent Corner Support (K1) using Bolts (FF). See Figure 11-1. Step 11B: Repeat for all corners. Tighten all Bolts. See Figure 11-2. Step 11C: Attach the Roof Vent Top Trim (L) to the Roof Vent Center Support (K2) using Bolts (HH). Tighten all Bolts.
  • Page 20 Step 12A: Attach the Main Roof Connectors (O1) to the Main Roof Corner Supports (H) using Bolts (AA). See Figure 12-1. Step 12B: Attach the Main Roof Connectors (O2) to the Main Roof Vertical Center Supports (I) using Bolts (AA). See Figure 12-2. Step 12C: Attach the Main Roof Horizontal Supports (M and N) to the Main Roof Connectors (O1) using Bolts (AA).
  • Page 21 MAIN ROOF PANEL ASSEMBLY Note: Install Main Roof Panels from Left to Right. The Right Panel must overlap the Left Panel. Each Bolt (EE) must be attached to Spacer (KK) on top of lintels. Hand Tighten Only until all panels have been installed then tighten all bolts. Step 13A: Attach Main Roof Left Panel (T1) to Long Lintel (D2) using Bolt (EE) and Spacer (KK).
  • Page 22 Step 14A: Attach the Main Roof Corner Trim (Q1) to the Main Roof Corner Support (H) using Bolt (GG). Repeat for all corners. See Figure 14-1 and Figure 14-3. Step 14B: Attach the Main Roof Center Frame Trim (Q4) to the Main Roof Center Frame (J1 and J2) using Bolts (AA).
  • Page 23 Step 15A: Attach the Mosquito Net (V) to the Mosquito Net Hooks (JJ). Repeat for all sides. See Figure 15- 1 and Figure 15-3 Step 15B: Secure the gazebo by inserting the Ground Stakes (LL) into the Base Plates (B). Repeat for all corners.

  • Page 24: Warranty

    Care & Maintenance Maintenance is required for the outdoor gazebo/pergola. Inspect all hardware thoroughly before use and during the season to make sure bolts are securely fastened. Remove canopy and store out of the elements when not in use or during hazardous weather conditions (wind, rain, snow, etc.). Failure to maintain the gazebo/pergola will void the warranty.
