Note: This gazebo frame is designed to be used as a permanent fixture. The Grill Gazebo cover is
recommended when not in use or storing for winter. Please visit: https://shadenshelters.com to
purchase.

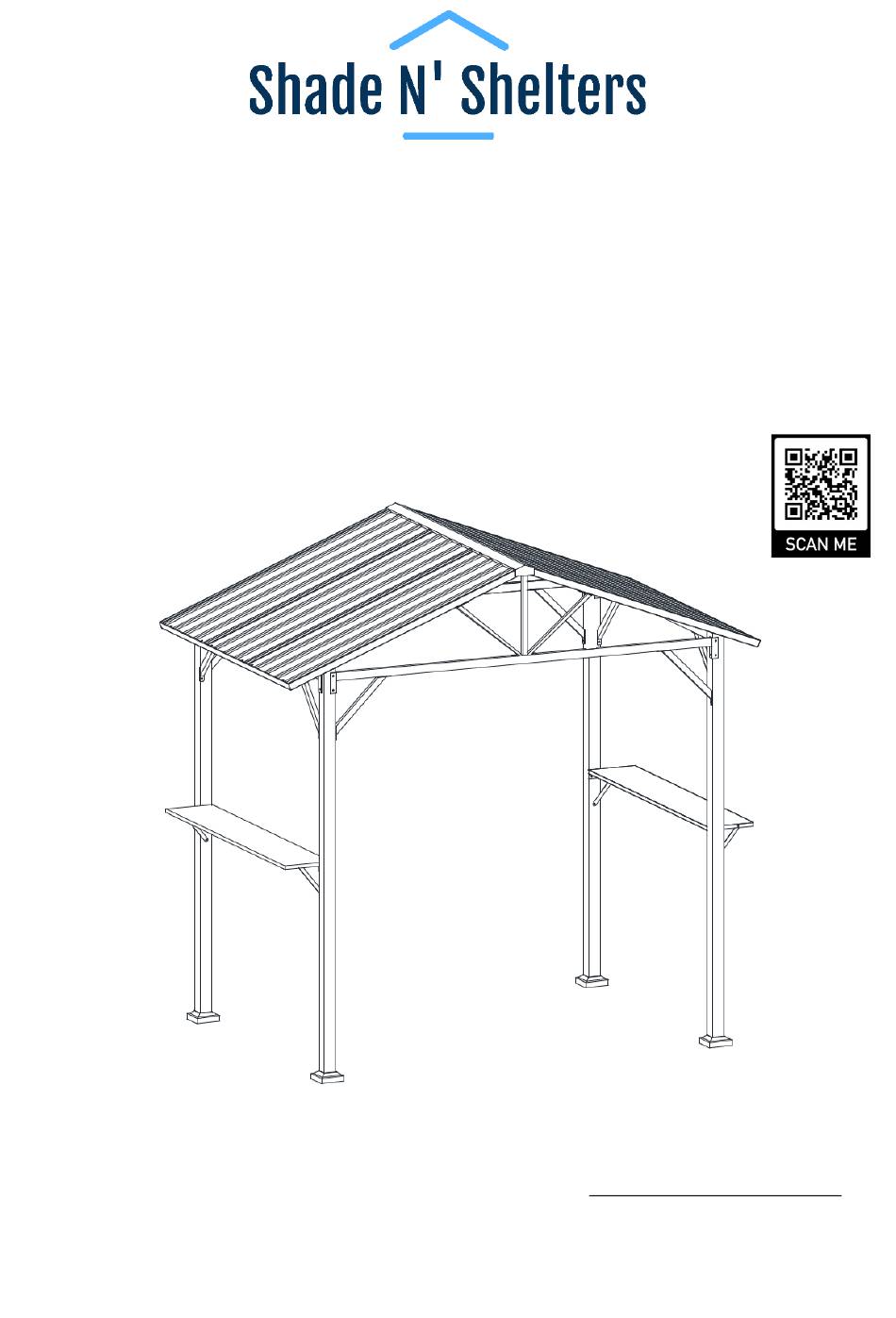

Owner's Manual
Belmont
8' x 5' Grill Gazebo
Model Number: BEL/GAZ-2
SKU Number: 101641930
Scan For Video
Assembly Instructions!
1 of 11
Advertisement
Related Manuals for Shade N' Shelters Belmont BEL/GAZ-2
Summary of Contents for Shade N' Shelters Belmont BEL/GAZ-2
- Page 1 Owner’s Manual Belmont 8’ x 5’ Grill Gazebo Model Number: BEL/GAZ-2 SKU Number: 101641930 Scan For Video Assembly Instructions! Note: This gazebo frame is designed to be used as a permanent fixture. The Grill Gazebo cover is recommended when not in use or storing for winter. Please visit: https://shadenshelters.com to purchase.
-
Page 2: Parts List
Parts List Belmont 8’ x 5’ Grill Gazebo Letter Illustration Description Qty. Corner Post Corner Post Roof Beam-Long Side Roof Beam-Short Side Corner Supports Roof Frame-Long Side Roof Frame-Long Side Roof Frame-Short Side Roof Beam-Top Roof Frame-Middle Roof Support 2 of 11... - Page 3 Letter Illustration Description Qty. Roof Support Roof Frame Connector Plate Roof Corner Connector Plate Bar Shelf Bar Shelf Connector Plate Bar Shelf Connector Plate Roof Panel Connector Plate Roof Panel Roof Panel Roof Panel Roof Trim-Top Base Cover 3 of 11...
- Page 4 Letter Illustration Description Qty. Base Plate Roof Frame-Horizontal M6 x 15mm Bolt with Washer M6 x 40mm Bolt with Washer Screw with Washer Ground Stake M6 Hex Wrench Allen Wrench 4 of 11...
- Page 5 Assembly Instructions Belmont 8’ x 5’ Grill Gazebo Note: For video instructions please visit: https://shadenshelters.com/8-x-5-grill-gazebo Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
- Page 6 Step 2: Attach the Long and Short Roof Beams (B/C) to the Corner Posts (A1/A2) with Bolt (AA). Repeat for opposite side. Tighten Bolts. See Figure 2-1, Figure 2-2 and Figure 2-3. Figure 2-1 Figure 2-2 Figure 2-3 6 of 11...
- Page 7 Step 3A: Attach the Corner Supports (D) to the Roof Beam (B/C) and the Corner Posts (A1/A2) with Bolts (AA). Repeat for all corners. See Figure 3-1. Step 3B: Attach the Long Roof Frames (E1/E2) to the Corner Posts (A1/A2) with Bolts (AA). Repeat for opposite side.
- Page 8 Step 4A: Attach the Middle Roof Frame (H) to the Roof Top Beam (G) and the Roof Beam (C) with Bolts (AA). Repeat for opposite side. See Figure 4-1A and Figure 4-1B. Step 4B: Attach the Roof Frame Connector Plate (K) to the Middle Roof Frame (H) with Bolts (AA).
- Page 9 Step 5A: Install the Roof Panels (Q1, Q2 and Q3) from left to right. The right panel must overlap the left panel. See Figure 5-1. Step 5B: Secure the Roof Panels (Q1, Q2 and Q3) with the Roof Panel Connector Plates (P) to the Roof Frame-Short Side (F) with Bolts (AA).
- Page 10 Step 6A: Attach the Bar Shelf Connector Plate (N) to the Corner Post (A1/A2) with Bolts (AA). Repeat for opposite side. See Figure 6-1. Step 6B: Attach the Bar Shelf (M) to the Bar Shelf Connector Plate (N) with Bolts (AA). Repeat for opposite side. See Figure 6-2. Step 6C: Attach the Bar Shelf Connector Plate (O) to the Corner Post (A1/A2) and the Bar Shelf (M) with Bolts (AA).
-
Page 11: Care And Maintenance
Care & Maintenance Maintain your outdoor grill gazebo by using a Grill Gazebo Cover when not in use or storing for winter. Please visit: https://shadenshelters.com to purchase. Frame: Do not allow debri or snow to accumulate on roof it may create hazardous conditions. Clean the frame with a mild soap and warm water.
