Shade N' Shelters Lexington LEX/GAZ-2 Owner's Manual

9' x 11' soft top gazebo
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

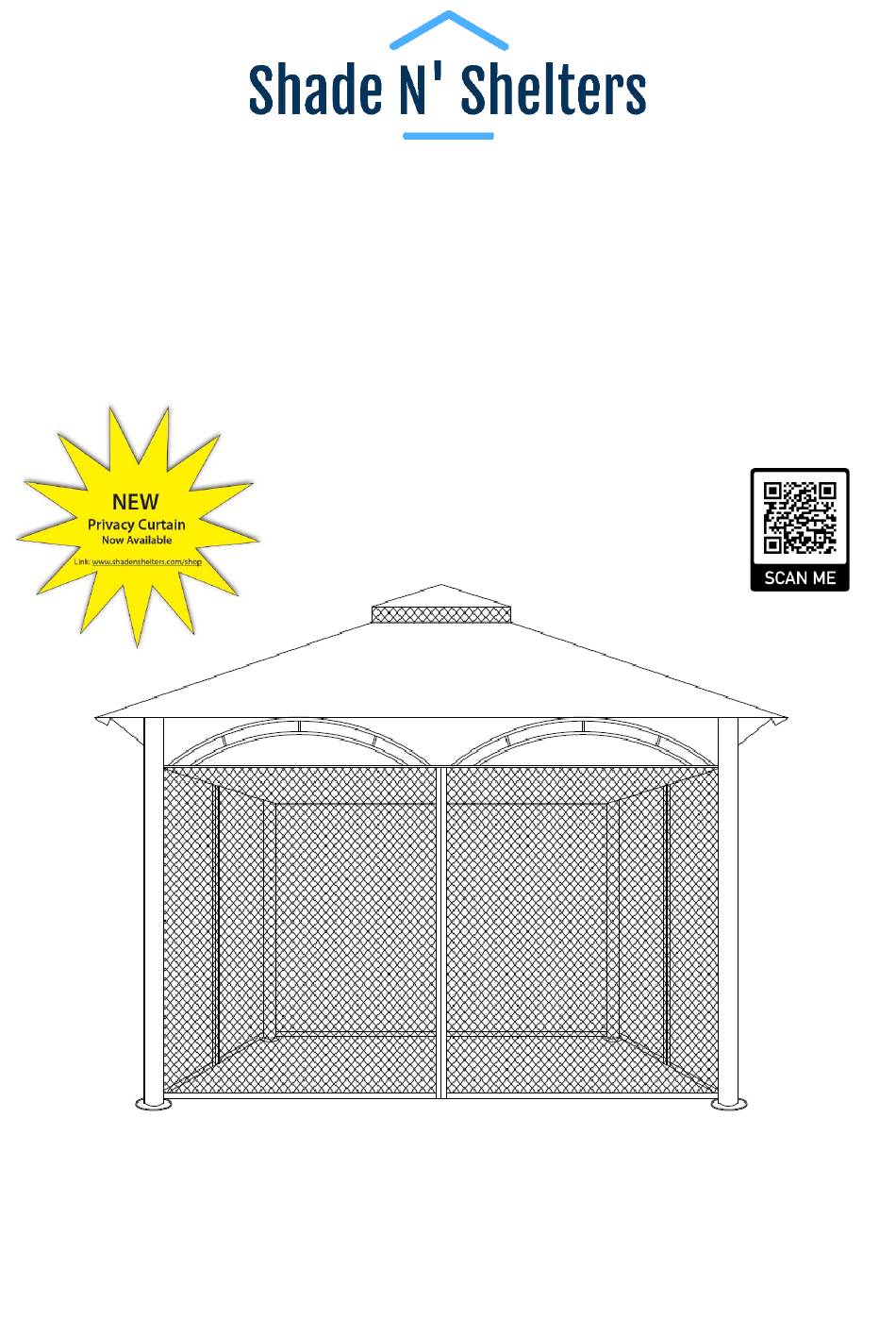

Owner's Manual
Lexington
9' x 11' Soft Top Gazebo
Model Number: LEX/GAZ-2
SKU Number: 101641932
Scan For Video
Assembly Instructions!
Note: This gazebo frame is designed to be used as a permanent fixture. Remove canopy when not
in use or during high winds, rain or snow.
1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lexington LEX/GAZ-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Shade N' Shelters Lexington LEX/GAZ-2

Summary of Contents for Shade N' Shelters Lexington LEX/GAZ-2

  • Page 1 Owner’s Manual Lexington 9’ x 11’ Soft Top Gazebo Model Number: LEX/GAZ-2 SKU Number: 101641932 Scan For Video Assembly Instructions! Note: This gazebo frame is designed to be used as a permanent fixture. Remove canopy when not in use or during high winds, rain or snow. 1 of 9...

  • Page 2: Parts List

    Parts List Lexington 9’ x 11’ Soft Top Gazebo Letter Illustration Description Qty. Center Roof Connector Corner Roof Support-Long (86 1/2") Side Roof Support-Short (57") Side Roof Support-Medium (68") Short Cross-Beam (55 3/4")-Left Short Cross-Beam (55 3/4")-Right Long Cross-Beam (90 1/2") Base Plate Top Connector Plate with "U"...
  • Page 3 Letter Illustration Description Qty. Small "U" Bracket for Vertical Corner Post and Long Cross-Beam Ground Stakes M6 x 30mm Bolt with Washer, Nut Plastic Nut Cap M6 x 15mm Bolt and Washer M6 x 15mm Screw Roof Vent Canopy Main Canopy Mosquito Netting Ring Connectors Wrench...
  • Page 4 Assembly Instructions Lexington 9’ x 11’ Soft Top Gazebo Note: For video instructions please visit: https://shadenshelters.com/9-x-11-lexington-gazebo Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
  • Page 5 I. Cross-Beam Assembly: Step 1: Attach the Short Cross Beam (E1) to the Short Cross Beam (E2) using the Top Connector Plate (H) and Bottom Connector Plate (J) using Bolt, Washer and Nut (N). See Figure 1. Note: The round steel rail on the Cross-Beam is the top side. Step 2: Repeat for remaining Short Cross Beams (E1/E2).
  • Page 6 Step 2: Attach the Base Plates (G) to the Corner Post (K) using Bolt, Washer and Nut (I). See Figure 4. Step 3: Attach the 2 Assembled Short Cross-Beams (E1, E2) and Long Cross-Beams (F) to the Corner Posts (K) with Bolt & Washer (O). See Figure 5. Note: This step requires help from a third person.
  • Page 7 Step 2: Insert the “Push Button” end of the “Short” Roof Support (C) into the Center Roof Connector (A) and attach to the “U” Bracket (L) on top of the Assembled Cross-Beams (E1 & E2) using Bolt, Washer, and Nut (N). See Figure 8. Note: Roof Assembly requires a Step Ladder and help from a third person.
  • Page 8 V. Mosquito Netting Assembly: Step 1: Before attaching the Mosquito Netting (S), align all four sections on the ground next to the gazebo. Make sure the zippers are aligned in the center of each opening. The Fabric Tie-Backs sewn to the Mosquito Netting (S) also must be aligned with each Corner Post (K).

  • Page 9: Warranty

    Lexington Gazebo Accessories Please visit https://shadenshelters.com to purchase ➢ Privacy Curtain ➢ Replacement Roof Canopy ➢ Replacement Mosquito Netting Care & Maintenance Maintain your gazebo by removing the canopies and storing out of the elements when not in use, or during hazardous weather conditions (wind, rain, snow, etc.).
