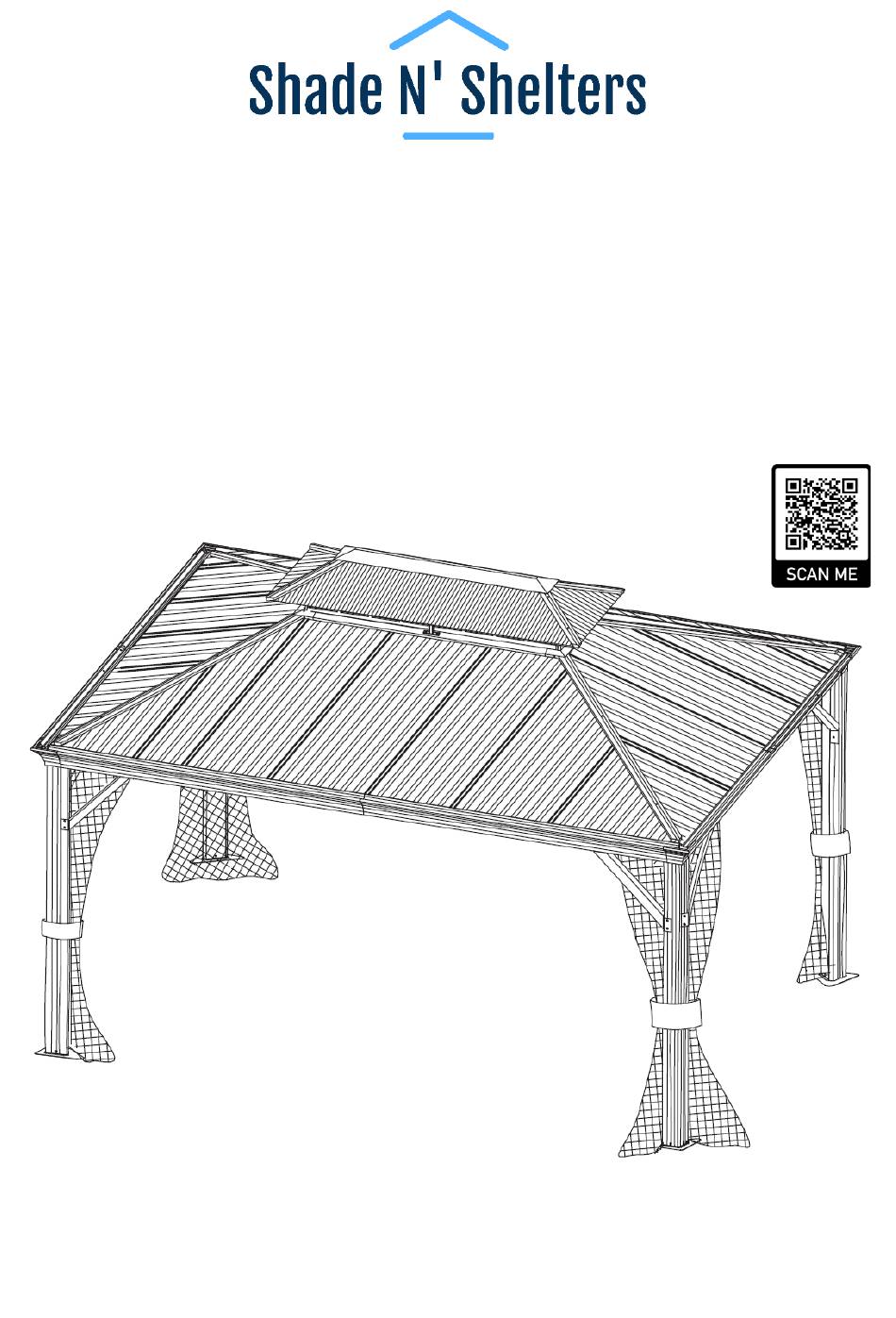

Owner’s Manual Granite Peak 10’ x 14’ Hard Top Gazebo Model Number: GP/GAZ14-2 SKU Number: 101642581 Scan For Video Assembly Instructions! Note: This gazebo is designed to be used as a permanent fixture. 1 of 25...
Parts List Granite Peak 10’ x 14’ Hard Top Gazebo Letter Illustration Description Qty. Corner Post Corner Post Base Plate Short Lintel Short Lintel Long Lintel Long Lintel Lintel Corner Support Bar Lintel Bracket Lintel Connector Main Roof Corner Support Main Roof Vertical Center Support 2 of 25...
Page 3
Letter Illustration Description Qty. Main Roof Center Frame – Short Connector Main Roof Center Frame - Long Connector Roof Vent - Corner Supports Roof Vent - Center Support Roof Vent Hook Roof Vent - Side Supports Roof Vent - Top Trim Main Roof –...
Page 4
Letter Illustration Description Qty. Roof Vent Frame – Short Sides Roof Vent Frame – Left Sides Roof Vent Frame – Right Sides Main Roof Corner Trim Roof Vent Corner Trim Main Roof Center Frame Trim - Short Sides Main Roof Center Frame Trim - Long Sides Roof Vent Side Trim - Long Sides Roof Vent Side Trim - Short Sides...
Page 5
Letter Illustration Description Qty. Main Roof Panel - Left Side Main Roof Panel - Center Main Roof Panel - Right Side Main Roof Panel - Right Corner Main Roof Panel - Left Center Main Roof Panel - Right Center Main Roof Panel - Center Roof Vent Panel - Short Side Roof Vent Panel - Long Side (Left) Roof Vent Panel - Long Side (Right)
Page 6
Letter Illustration Description Qty. M6 x 15mm Bolt with Steel Washer M8 x 15mm Bolt with Steel Washer M6 x 15mm Bolt with Plastic Washer M6 x 15mm Bolt M6 x 25mm Bolt with Plastic Washer M6 x 35mm Bolt with Plastic Washer M6 x 40mm Bolt with Plastic Washer M6 x 50mm Bolt with Plastic Washer M6 x 55mm Bolt with Flat Washer &...
Page 8
Assembly Instructions Granite Peak 10’ x 14’ Hard Top Gazebo Note: For video instructions please visit: https://shadenshelters.com/10x14-granite-peak-gazebo Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
Page 9
Step 2A: Insert Fourteen Mosquito Netting Hooks (JJ) into the channel of each Long Lintel (D2). See Figure 2-1. Step 2B: Attach Lintel Connector (G2) to Long Lintel (D2) using Bolts (BB). See Figure 2-2 Step 2C: Attach Long Lintel (D1) to Lintel Connector (G2) using Bolts (BB). Attach outside Lintel Brackets (F) to Long Lintel (D1 and D2) using Bolts (AA).
Page 10
Step 3A: Attach Corner Posts (A) to end of Long Lintels (D1 and D2) first with Bolts (AA) then with Bolts (DD). Tighten all Bolts. See Figure 3-1. Step 3B: Repeat for opposite side Long Lintels (D1 and D2) and Corner Posts (A). See Figure 3-2. Figure 3-1 Figure 3-2 10 of 25...
Page 11
Step 4A: Attach Corner Posts (A) to Short Lintel (C1 and C2) first with Bolts (AA) then with Bolts (DD). Repeat for opposite side Short Lintels (C1 and C2). See Figure 4-1. Step 4B: Attach Support Bars (E) to Lintels (C1 and D2) and Corner Post (A) with Bolts (AA). See Figure 4-2.
Page 12
Step 5A: Attach Corner Lintel Cover (S1) to Long Lintel (D1) and Short Lintel (C2) with Bolts (AA). Repeat for all corners. Tighten all Bolts. See Figure 5-1. Step 5B: Attach Center Lintel Cover (S2) to Long Lintels (D1 and D2) and Short Lintels (C1 and C2). Tighten all Bolts.
Page 13
Step 6A: Assemble the Main Roof Center Frame by inserting the Long Connector (J2) into the Short Connector (J1) and attach with Bolts (AA). See Figure 6-1. Step 6B: Repeat for opposite sides and ends. Tighten all Bolts. See Figure 6-2. Figure 6-2 Figure 6-1 13 of 25...
Page 14
Step 7A: Assemble the Main Roof Corner Supports (H) to the Short Connector (J1) on the Main Roof Center Frame and then to the Corner Posts (A) using Bolts (AA). See Figure 7-1. Note: You will need a second person to hold the Main Roof Center Frame while attaching the Main Roof Corner Supports (H).
Page 15
Step 7C: Attach the Main Roof Vertical Center Supports (I) to the Main Roof Center Frame (J1 and J2) and the Lintel Brackets (F) using Bolts (AA). Hand Tighten Only. See Figure 7-3. Step 7D: Repeat for each side. Tighten all Bolts. See Figure 7-4 Figure 7-3 Figure 7-4 15 of 25...
Page 16
Step 8A: Assemble the Roof Vent Frame by attaching Roof Vent Corner Support (K1) to Roof Vent Center Support (K2) with Bolts (II). See Figure 8-1. Step 8B: Repeat for all corners. Tighten all Bolts. See Figure 8-2. Step 8C: Attach Roof Vent Hook (K3) to Roof Vent Center Support (K2). See Figure 8-2 and Figure 8-3. Figure 8-2 Figure 8-1 Figure 8-3...
Page 17
Step 9A: Secure the Roof Vent Frame to the Main Roof Center Frame by inserting the Roof Vent Corner Supports (K1) into the post on the Short Connector (J1) of the Main Roof Center Frame and attach using Bolts (AA). See Figure 9-1. Step 9B: Attach Roof Vent Side Supports (K4) to Roof Vent Center Support (K2) using Bolts (II).
Page 18
Step 10A: Assemble Roof Vent Panels by placing Left Roof Vent Panel (U2), Center Roof Vent Panel (U4) and Right Roof Vent Panel (U3) on the Roof Vent Frame. Attach to Long Side of Roof Vent Frame (P2) using Bolt (CC). Note: Roof Vent Panels must overlap.
Page 19
Step 10C: Repeat for opposite long and short sides. Tighten all Bolts. See Figure 10-3. Step 10D: Attach the Long Roof Vent Trim (R1) and Short Roof Vent Trim (R2) to the Sides of Roof Vent Frame (P1, P2 and P3) using Bolts (AA). Repeat for all sides. Tighten all Bolts. See Figure 10-4.
Page 20
Step 11A: Attach the Roof Vent Corner Trim (Q2) to the Roof Vent Corner Support (K1) using Bolts (FF). See Figure 11-1. Step 11B: Repeat for all corners. Tighten All Bolts. See Figure 11-2. Step 11C: Attach the Roof Vent Top Trim (L) to the Roof Vent Center Support (K2) using Bolts (HH). Tighten Bolts.
Page 21
Step 12A: Attach the Main Roof Connectors (O1) to the Main Roof Corner Supports (H) using Bolts (AA). See Figure 12-1. Step 12B: Attach the Main Roof Connectors (O2) to the Main Roof Vertical Center Supports (I) using Bolts (AA). See Figure 12-2. Step 12C: Attach the Main Roof Horizontal Supports (M,N) to the Main Roof Connectors (O1) using Bolts (AA).
Page 22
MAIN ROOF PANEL ASSEMBLY Note: Install Main Roof Panels from Left to Right. The Right Panel must overlap the Left Panel. Each Bolt (EE) must be attached to Spacer (KK) on top of lintels. Hand Tighten only until all panels have been installed then tighten all bolts.
Page 23
Step 14A: Attach the Main Roof Corner Trim (Q1) to the Main Roof Corner Support (H) using Bolt (GG). Repeat for all corners. See Figure 14-1 and Figure 14-3. Step 14B: Attach the Main Roof Center Frame Trim (Q3 and Q4) to the Main Roof Center Frame (J1 and J2) using Bolts (AA).
Page 24
Step 15A: Attach the Mosquito Net (V) to the Mosquito Net Hooks (JJ). Repeat for all sides. See Figure 15- 1 and Figure 15-3 Step 15B: Secure the gazebo by inserting the Ground Stakes (LL) into the Base Plates (B). Repeat for all corners.
Granite Peak Gazebo Accessories Please visit www.fleetfarm.com www.shadenshelters.com ➢ Privacy Curtain ➢ Winter Cover ➢ Winter Roof Support ➢ Replacement Mosquito Netting Care & Maintenance Maintain your gazebo with a Winter Cover and Winter Roof Support when storing for winter. Frame: Clean frames with a mild soap and warm water.
