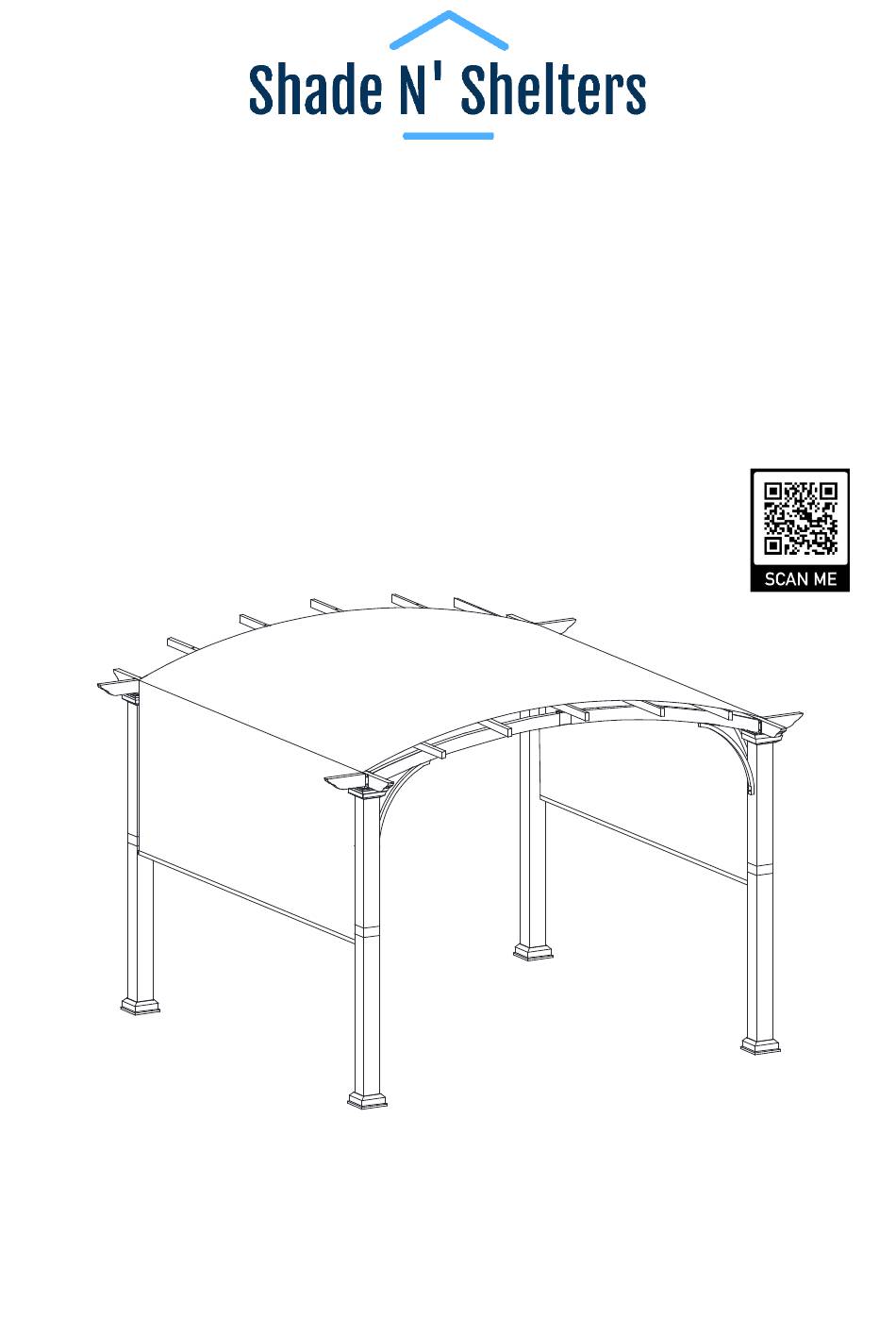

Owner's Manual
Jordan
10' x 10' Arched Pergola
Model Number: JOR/PERG-2
SKU Number: 101641931
Scan For Video
Assembly Instructions!
Note: This pergola frame is designed to be used as a permanent fixture. Remove canopy when not
in use or during high winds, rain or snow.
1 of 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jordan JOR/PERG-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Shade N' Shelters Jordan JOR/PERG-2

Summary of Contents for Shade N' Shelters Jordan JOR/PERG-2

  • Page 1 Owner’s Manual Jordan 10’ x 10’ Arched Pergola Model Number: JOR/PERG-2 SKU Number: 101641931 Scan For Video Assembly Instructions! Note: This pergola frame is designed to be used as a permanent fixture. Remove canopy when not in use or during high winds, rain or snow. 1 of 14...

  • Page 2: Parts List

    Parts List Jordan 10’ x 10’ Arched Pergola Letter Illustration Description Qty. Corner Post Curved Top Beam Outside Lintel Inside Lintel Inside Lintel Connector Cross Beam Center Connector Plate Beam Connector Ferrule Short Lintel End Corner Post Cover Curved Corner Post Brace 2 of 14...
  • Page 3 Letter Illustration Description Qty. Curved Corner Post Brace Base Cover Base Plate Short Canopy Support Bar Long Canopy Support Bar Canopy M6 x 15 mm Bolt M6 x 20 mm Bolt M6 x 35 mm Bolt M6 x 45 mm Bolt M6 Washer Plastic Washer 3 of 14...
  • Page 4 Letter Illustration Description Qty. M6 Bolt Cap Ground Stake M6 Open Wrench 4 of 14...
  • Page 5 Assembly Instructions Jordan 10’ x 10’ Arched Pergola Note: For video instructions please visit: https://shadenshelters.com/10-x-10-jordan-pergola Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
  • Page 6 Step 2A: Insert the Cross Beam Center Connector Plate (E) into the Outside Lintel (C), attach using Bolts (N) and Plastic Washers (S). See Figure 2-1. Step 2B: Insert the Outside Lintel (C) and Cross Beam Center Connector Plate (E) into Beam Connector (F1). See Figure 2-2.
  • Page 7 Note: For Step 3 the bolts holes on the corner posts must face the bolt holes on the opposite corner post. Step 3A: Attach the Assembled Outside Lintels (C) to the Corner Post Covers (H) with Bolts (O) and Plastic Washers (R).
  • Page 8 Step 4A: Insert Cross Beam Center Connector Plate (E) into the Curved Top Beam (B), attach using Bolts (N) and Plastic Washers (S). See Figure 4-1. Step 4B: Insert the Curved Top Beam (B) and Cross Beam Center Connector Plate (E) into Beam Connector (F1).
  • Page 9 Step 5A: Connect the assembled Curved Top Beam (B) with the Short Lintel End (G) through the holes of the assembled Outside Lintel (C) using Bolts (Q), Washers (R) and Nuts (T). See Figure 5-1. Repeat for opposite side. Step 5B: Attach Curved Corner Post Brace (I1) to the Corner Posts (A) and the Outside Lintel (C) using Bolts (P) and Washers (R).
  • Page 10 Step 6A: Attach the two Inside Lintels (D1) to the Inside Lintel Connector (D2) using Bolts (N) and Plastic Washer (S) for the end holes only. Tighten Bolts. See Figure 6-1A and Figure 6-1B. Step 6B: Attach the Ferrule (F2) to the Inside Lintel (D1) using the Bolts (N) and Plastic Washer (S). Tighten all Bolts.
  • Page 11 Step 7A: Attach the assembled Inside Lintels (D1) to the Curved Top Beam (B) using Bolts (Q) and Plastic Washers (S). Tighten Bolts. See Figure 7-1. Step 7B: Repeat for all Inside Lintels (D1). See Figure 7-2. Figure 7-1 Figure 7-2 11 of 14...
  • Page 12 Step 8: Place the Canopy (M) on the top of the pergola. Attach the Short Canopy Support Bar (L1) to the Long Canopy Support Bar (L2). Insert the assembled tubes (L1/L2) into the hemline of the canopy. Secure the canopy to the Corner Posts with the Tie Strap. See Figure 8. L1/L2 Figure 8 12 of 14...
  • Page 13 Step 9: Lift the Base Cover (J) and secure the assembled pergola with Ground Stake (V). See Figure 9. Figure 9 Note: Please see our video for additional assembly assistance: https://shadenshelters.com/10-x-10-jordan-pergola 13 of 14...

  • Page 14: Care And Maintenance

    Care & Maintenance Maintain your outdoor pergola by removing the canopy and storing out of the elements when not in use, or during hazardous weather conditions (wind, rain, snow, etc.). Please visit: https://shadenshelters.com to purchase replacement canopy. Frame: Clean frames with a mild soap and warm water. Do not use abrasive materials, cleaners or bleach. Rinse with clean water and dry thoroughly.
