Shade N' Shelters Berken Owner's Manual

11' x 13' pavilion
Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual
Berken
11' x 13' Pavilion
Model Number: BK/PAV-1113
Scan For Video
Assembly Instructions!
Note: This gazebo is designed to be used as a permanent fixture.
1 of 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the Berken and is the answer not in the manual?

Questions and answers

Related Manuals for Shade N' Shelters Berken

Summary of Contents for Shade N' Shelters Berken

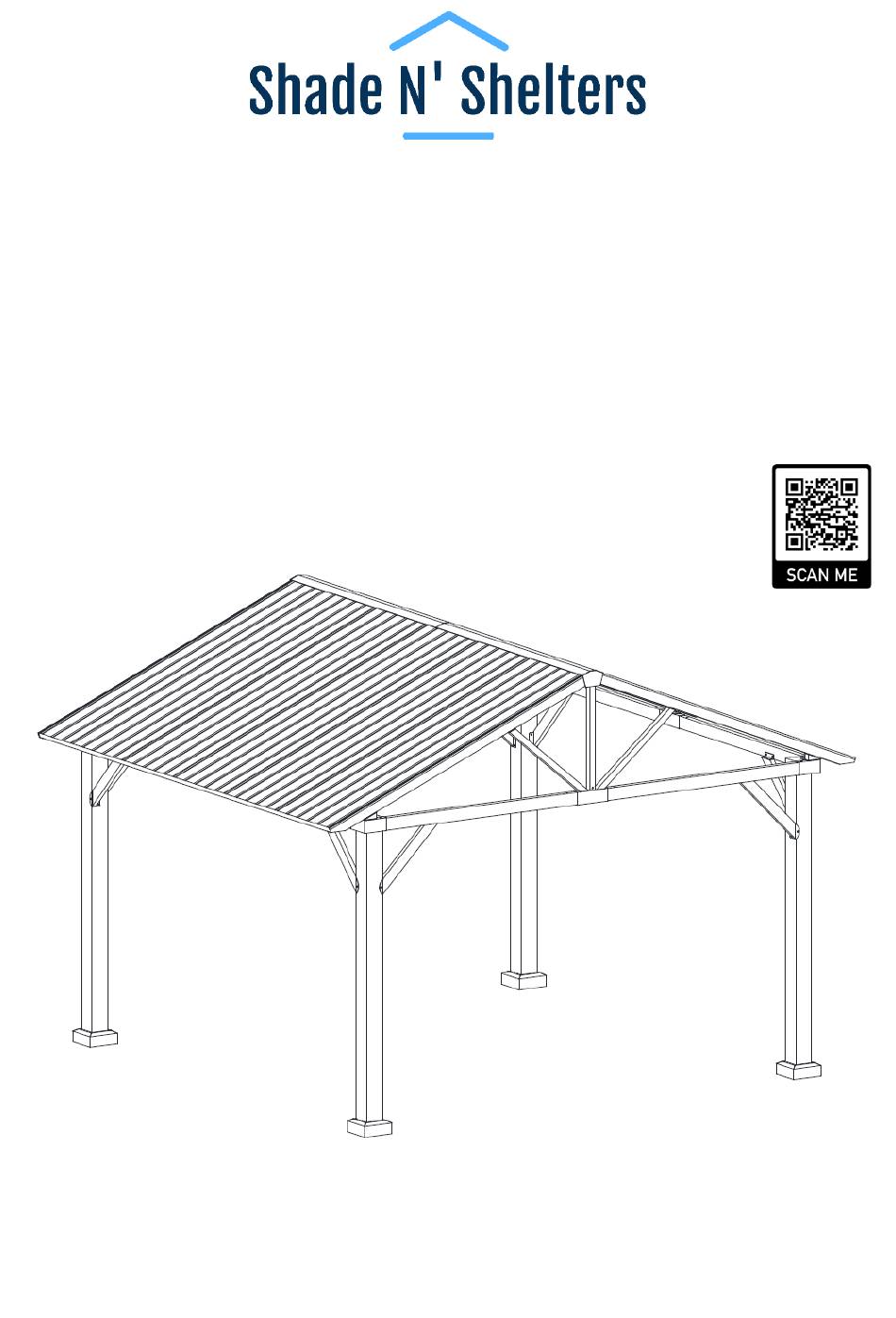

  • Page 1 Owner’s Manual Berken 11’ x 13’ Pavilion Model Number: BK/PAV-1113 Scan For Video Assembly Instructions! Note: This gazebo is designed to be used as a permanent fixture. 1 of 24...

  • Page 2: Parts List

    Parts List Berken 11’ x 13’ Pavilion Letter Illustration Description Qty. Corner Post Base Cover Base Plate Left Lentil Right Lentil Left Lentil Right Lentil Cross Beam Connector Lintel Corner Support Bar Lintel Corner Support Bar Cross Beam Guard 2 of 24...
  • Page 3 Letter Illustration Description Qty. Top Bean Guard Roof Support Beam Roof Support Beam Roof Support Beam Vertical Brace Connector Top Support Bar Right Support Bar Left Support Bar U-Shape Connector L-Shape Connector L-Shape Connector 3 of 24...
  • Page 4 Letter Illustration Description Qty. Corner Lintel Cover Roof Support Roof Support Roof Support Top Beam Top Beam Top Beam Connector Edge Banding Edge Banding Edge Banding Guard Edge Banding Guard Top Panel Cover 4 of 24...
  • Page 5 Letter Illustration Description Qty. Top Panel Cover Roof Panel Roof Panel Roof Panel M6 x 15mm Bolt with Steel Washer M6 x 15mm Bolt M6 x 25mm Bolt with Plastic Washer M6 x 35mm Bolt with Flat Washer & Nut M6 x 40mm Bolt with Plastic Washer M6 x 55mm Bolt with Flat Washer &...
  • Page 6 Letter Illustration Description Qty. M6 Hex Wrench Ground Stake 6 of 24...
  • Page 7 Assembly Instructions Berken 11’ x 13’ Pavilion Note: For video instructions please visit: https://shadenshelters.com/11x13-berken-pavilion Important: ⚫ Read all the instructions before assembly. Failure to do so may result in faulty assembly and potential injury. Before assembling the product, remove all protective materials, hardware kit(s), and identify all ⚫...
  • Page 8 Step 2A: Insert the Cross Beam Connector (E) into the Left Lintel (D1), attach using Bolts (AA). See Figure 2-1 Step 2B: Insert Left Lintel (D1) and Cross Beam Connector (E) into Cross Beam Guard (H). See Figure 2-2 Note: Make sure the holes with the inserts on Cross Beam Guard (H) are facing to the inside. Step 2C: Attach the Right Lintel (D2) to Cross Beam Connector (E) with Bolts (AA).
  • Page 9 Step 3A: Insert the Cross Beam Connector (E) into the Left Lintel (D3), attach using Bolts (AA). See Figure 3-1. Step 3B: Insert Left Lintel (D3) and Cross Beam Connector (E) into Cross Beam Guard (G). See Figure 3-2. Insert the Right Lintel (D4) into Cross Beam Connector (G) See Figure 3-2. Step 3C: Attach Right Lintel (D4) to Cross Beam Connector (E) using Bolts (AA).
  • Page 10 Step 4A: Attach assembled Lintels (D1 and D2) to Corner Post (A) using Bolts (BB). See Figure 4-1. Step 4B: Attach Lintel Corner Support Bar (F1) to Left Lintel (D1) and Corner Post (A). Attach Lintel Corner Support Bar (F2) to Right Lintel (D2) and Corner Post (A). See Figure 4-2. Step 4C: Repeat for all Corner Posts and Lintels.
  • Page 11 Step 5A: Attach assembled Lintels (D3 & D4) to Corner Post (A) using Bolts (BB). See Figure 5-1. Step 5B: Attach Lintel Corner Support Bar (F1) to Left Lintel (D3) and Corner Post (A). Attach Lintel Corner Support Bar (F2) to Right Lintel (D4) and Corner Post (A). See Figure 5-2. Step 5C: Repeat for all Corner Posts and Lintels.
  • Page 12 Step 6A: Attach the Roof Side Support Beam (I2) to L-Connector (N2) using Bolts (AA). Attach the Roof Side Support Beam (I1) to L-Connector (N1) using Bolts (AA). Tighten all Bolts. See Figure 6-1. Step 6B: Attach the Vertical Brace (J1) to the Cross Beam Guard (H) using Bolts (AA). Tighten all Bolts. See Figure 6-2.
  • Page 13 Step 7: Attach Top Beam Connector (Q3) to the top and bottom of Top Beam (Q1 & Q2) using Bolts (GG). Tighten all Bolts. See Figure 7. Figure 7 Step 8: Attach the assembled Top Beam (Q1 and Q2) to the Vertical Brace (J1) using Bolts (FF). Tighten all Bolts.
  • Page 14 Step 9A: Attach Roof Support Beam (I3) to U-Connector (M) using Bolts (DD). See Figure 9-1. Step 9B: Attach Roof Support Beam (I3) to Top Beam (Q1 & Q2) using Bolts (AA). See Figure 9-2. Step 9C: Repeat for remaining Roof Support Beams (I3). Tighten all Bolts. See Figure 9-3. Figure 9-1 Figure 9-2 Figure 9-3...
  • Page 15 Step 10A: Attach the Connector (J2) to the bottom of Top Beam (Q1 and Q2) using Bolts (AA). See Figure 10-1. Step 10B: Attach the Top Support Bar (K) to the Roof Support Beam (I3) using Bolts (DD). Attach the Connector (J2) to the Top Support Bar (K) using Bolts (AA).
  • Page 16 Step 11A: Attach the Roof Support (P1) to Roof Support Beam (I1 and I2) using Bolts (AA). See Figure 11-1. Step 11B: Attach the Roof Support (P1) to Roof Support Beam I3 using Bolts (DD). See Figure 11-2. Step 11C: Repeat for remaining Roof Supports (P1). Tighten all Bolts. See Figure 11-3. Figure 11-1 Figure 11-2 Figure 11-3...
  • Page 17 Step 12A: Attach the Roof Support (P2) to the Roof Support Beam (I1 and I2) using Bolts (AA). See Figure 12-1. Step 12B: Attach the Roof Support (P3) to the Roof Support Beams (I3) using Bolts (DD). See Figure 12-2. Step 12C: Repeat for remaining Roof Supports (P2 and P3).
  • Page 18 Note: Install the Roof Panels left to right. The right panel must overlap the left panel. Each Bolt (CC) must be attached to a Spacer (HH) on the top of the Roof Supports (P2 and P3). Step 13A: Attach the Roof Panel (T1) to the Roof Support (P2) using Bolts (CC) and Spacers (HH). Hand Tighten Only.
  • Page 19 Note: Roof Panel (T1) must go under the Roof Support Beams (I1). See Figure 13-2. Step 14A: Attach the Roof Panel (T1) to the Roof Support (P2) using Bolts (CC) and Spacers (HH). Hand Tighten Only. See Figure 14-2. Note: Roof Panel (T2) must overlap Panel (T1). Step 14B: Attach the Top Panel Cover (S1) to the Top Beam (Q2) using Bolts (EE).
  • Page 20 Step 15A: Attach the Roof Panel (T2) to the Roof Support (P2 and P3) using Bolts (CC) and Spacers (HH). Hand Tighten Only. See Figure 15-1 and Figure 15-3. Note: Overlapping the Panels still applies. Step 15B: Attach the Top Panel Cover (S2) to the Top Beam (Q2 and Q1) using Bolts (EE). See Figure 15-2 and Figure 15-3.
  • Page 21 Step 16A: Attach the Roof Panel (T2 and T3) to the Roof Support (P2 and P3) using Bolts (CC) and Spacers (HH). Hand Tighten Only. See Figure 16-2. Note: When assembling the last Roof Panel (T3) it must go under the Roof Support Beam (I2). Step 16B: Attach the Top Panel Cover (S1) to the Top Beam (Q2 and Q1) using Bolts (EE).
  • Page 22 Step 17: Attach the Roof Trim (R1) to the End of the Roof Support Beams (I1, I3, and I2) using the Roof Trim Guards (R3 and R4) and Bolts (AA). Tighten all Bolts. See Figure 17-1 and Figure 17-2. Figure 17-1 Figure 17-2 22 of 24...
  • Page 23 Step 18: Secure the Pavilion by inserting the Ground Stakes (JJ) into the Base Plates (C). Repeat for all corners. See Figure 18. Figure 18 Note: Please see our video for additional assembly assistance: https://shadenshelters.com/11x13-berken-pavilion 23 of 24...

  • Page 24: Warranty

    Care & Maintenance Maintenance is required for the outdoor gazebo/pergola. Inspect all hardware thoroughly before use and during the season to make sure bolts are securely fastened. Remove canopy and store out of the elements when not in use or during hazardous weather conditions (wind, rain, snow, etc.). Failure to maintain the gazebo/pergola will void the warranty.
