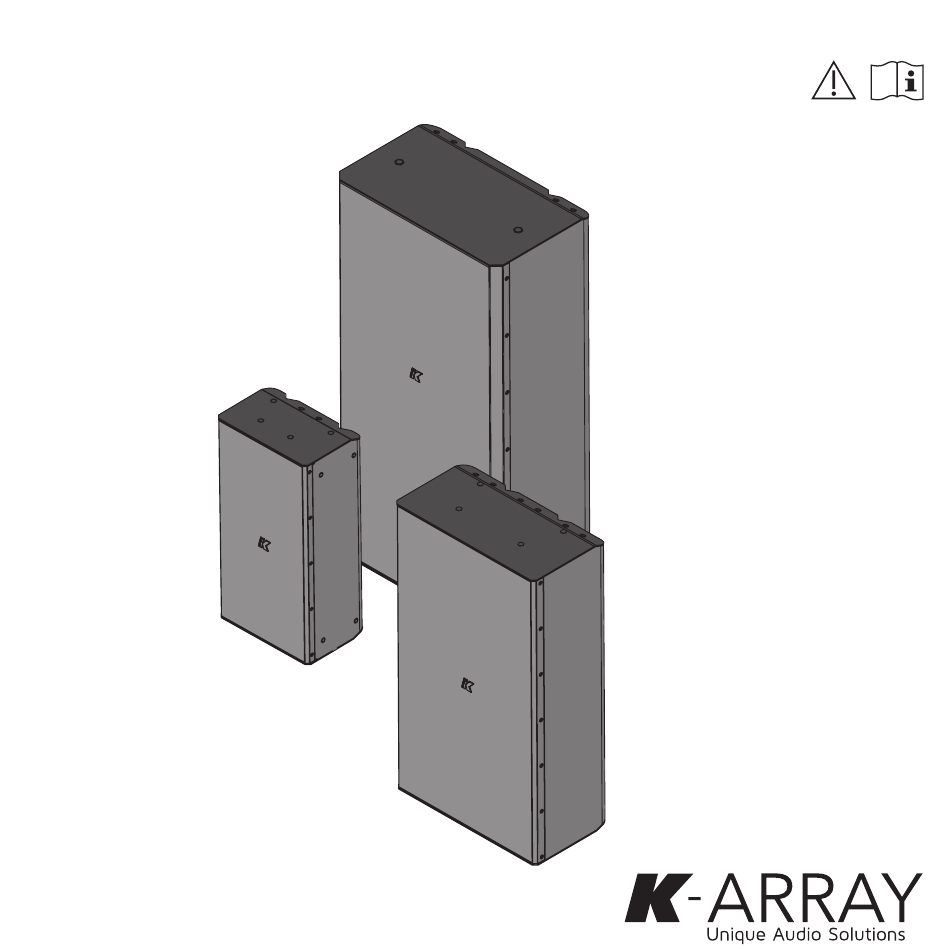

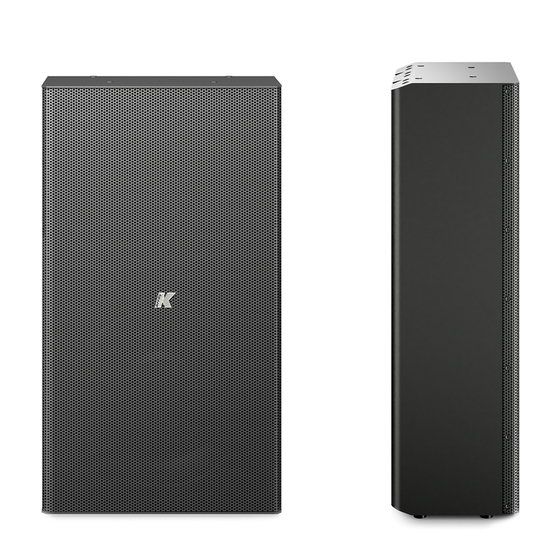

- Page 1 DOMINO-KF USER GUIDE Full-range compact passive stainless steel speakers •20241015•...
- Page 2 This page intentionally left blank...
- Page 3 DOMINO-KF User Guide IMPORTANT SAFETY INSTRUCTIONS General heed and warnings • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth.
- Page 4 Connecting an impedance load outside the amplifier’s rated range can damage the apparatus. • K-array cannot be held responsible for damage caused by improper use of the loudspeakers. • K-array will not shoulder any responsibilities for products modified without prior authorization.
-
Page 5: Table Of Contents
Domino-KF210 Domino-KF212 The Domino-KF is the unique full-rangespeakers family from Unpacking K-Array that can be driven by any professional amplifier and with Package Contents the three models Domino-KF26, Domino-KF210 and Domino- Positioning KF212, is the perfect solution for applications with subwoofer Wiring restrictions. -
Page 6: Key Features
DOMINO-KF User Guide Key Features Domino-KFC26 / KFC26M • 6” neodymium magnet woofer + 1.1” dome tweeter • Impressive diminutive depth and lightweight form • 6” passive radiator • Compatible with any amplifier without dedicated presets • Wider full range emission with 140° horizontal and vertical •... -
Page 7: Unpacking
4x in the Domino-KF210/KF210M and Domino-KF212/KF212M package. All the Domino-KF are available in marine version as Domino- KFM. Thanks to special treatments and coating they are suitable for marine applications and when installed in demanding weather conditions they highly resist oxidation and are completely sealed from water infiltration. -
Page 8: Wiring
KF212 compatible flying plug. The speaker shall be wired as explained For easy connectivity and link, the Domino-KF full range in the picture below. The impedance is set at 8Ω fixed-Z. speakers feature Euroblock 4 pin inlets, for Phoenix 2,5/ 4-ST- 5,08 compatible flying plug. -
Page 9: Installation
Installation Before driving the loudspeakers ensure to load the proper loudspeaker factory Domino-KF loudspeakers can be installed both as a free- preset on Kommander-KA amplifier standing device on any flat surface, or applique on the wall with dedicated brackets that are included in the package or with Any Domino-KF loudspeaker has an on-board passive filter mounting accessories that can be purchased separately. - Page 10 Sign on the surface the step between the hanging points: Applique Installation On-Wall The pivots and K-WALLUF2 applique bracket accessories included in the package allows to install the Domino-KF applique on every flat surface. Screw the pivots on the back threaded holes.
-
Page 11: In-Wall Mounting Accessories
Any Domino- KF can be mounted on-wall and tilted with two dedicated mounting brackets that can be purchased separately, K-WALL2 and K-WALL2L.To mount the Domino-KF on wall please follow this procedure. More information about K-WALL2 and K-WALL2L assembling can be found here: Accessories... -
Page 12: Installation With K-Wall2L
Drill two holes on the surface 122 mm (4.80 in) apart and Tight the blocking screws of the bracket at both the install the bracket. loudspeaker side and wall side. Domino-KF is finally installed on the wall 4 mm hex key... - Page 13 Drill two holes on the surface 180 mm (7.08 in) apart and Match the two parts of the bracket and fix them. install the bracket with the K-shaped hole. 8 i n 7 , 0 Assembly the bracket to the loudspeaker. The Domino-KF is finally installed with the K-WALL2L...
-
Page 14: Recessed Installation In-Wall/In-Ceiling
DOMINO-KF User Guide Before starting assembling the mounting frame, Recessed Installation In-Wall/In-Ceiling download and print the drilling template for your Mounting frame for in-wall (recessed) installation are available Rumble-KU subwoofer, in order to cut the surface of the for the Domino-KF26, Domino-KF26C Domino-KF210 as recess. - Page 15 DOMINO-KF User Guide Apply the drilling template to the mounting surface and Cut the recess. draw the cutting edges of the recess. D (min) Domino-KF26/ 361 mm (14,21 in) 193 mm (7,59 in) 123 mm (4,84 in) KF26C/KF26M Dmino-KU210 511 mm (20,11 in)
- Page 16 DOMINO-KF User Guide Fix the brackets to the Domino-KF sides. Apply the magnetic frame on top of the recessed Domino-KF loudspeaker. The recessed installation is complete M5x12 screw 3 mm Allen key M4x10 screw 2 mm Allen key Install the assembly composed by the Domino-KF...
-
Page 17: Mechanical Drawings
DOMINO-KF User Guide Mechanical Drawings Domino-KF26 118mm 350mm 224mm 4,7in 13,8in 8,8in 122mm 4,8in 30mm 1,2in... - Page 18 DOMINO-KF User Guide Domino-KFC26 118mm 350mm 224mm 4,7in 13,8in 8,8in 122mm 4,8in 30mm 1,2in...
-
Page 19: Domino-Kf210
DOMINO-KF User Guide Domino-KF210 500mm 150mm 374mm 19,7in 5,9in 14,7in 122mm 4,8in 64mm 2,5in... -
Page 20: Domino-Kf212
DOMINO-KF User Guide Domino-KF212 529mm 20,8in 200mm 655mm 7,9in 25,8in 264mm 100mm 10,4in 3,9in 57mm 2,3in 300mm 122mm 104mm 11,8in 4,8in 4,1in... - Page 21 DOMINO-KF User Guide Domino-KF26 Domino-KFC26 Technical specifications Technical specifications Type Point source Type Point source 6” neodymium magnet woofer 6” neodymium magnet woofer Transducers 2” neodymium magnet woofer Transducers 1.1” dome tweeter 6”passive radiator 6”passive radiator Frequency Response 50 Hz - 19kHz (-6 dB)
- Page 22 DOMINO-KF User Guide Domino-KF210 Domino-KF212 Technical specifications Technical specifications Type Point source Type Point source 10” neodymium magnet woofer Coax 12” woofer Transducers 3” neodymium magnet woofer Transducers 1.7” compression driver 10”passive radiator 12”passive radiator Frequency Response 50 Hz - 19kHz (-6 dB)
- Page 23 DOMINO-KF User Guide...
- Page 24 This page intentionally left blank...
- Page 25 Designed and Made in Italy K-ARRAY surl Via P. Romagnoli 17 | 50038 Scarperia e San Piero - Firenze - Italy ph +39 055 84 87 222 | info@k-array.com www.k-array.com...
