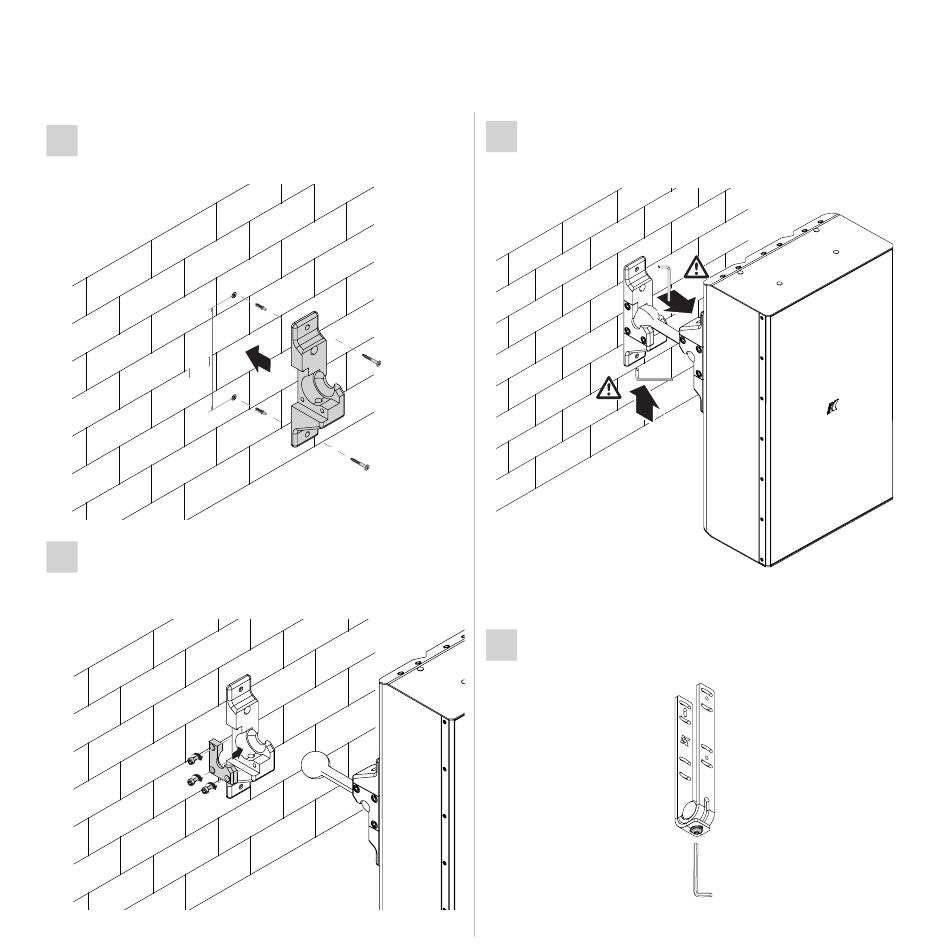

Drill two holes on the surface 122 mm (4.80 in) apart and
C
install the bracket.
1 2
Match the two parts of the bracket and fix them by
D
assembling the lateral plate of the one attached to the
wall.
12
m
2 m
0 i n
4 , 8
Tight the blocking screws of the bracket at both the
D
loudspeaker side and wall side. Domino-KF is finally
installed on the wall
4 mm hex key
4 mm hex key

Installation with K-WALL2L

Disassemble the K-WALL2L by removing the bottom screw
1
of the bracket to be fixed on the surface.
5 mm hex key
