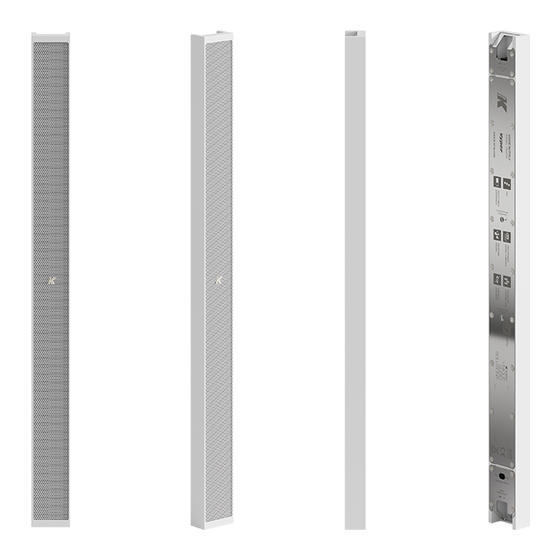

Ultra-flat aluminum line array element
Hide thumbs Also See for Vyper-KV25 II:
Table of Contents

Advertisement

Quick Links

Vyper-KV
Ultra-flat aluminum line array element
Passing Through
Fixing Points
Passing Through
Fixing Points
Passing Through
8Ω
32Ω
Fixing Points
IMPEDENCE SWITCH
INPUT
PARALLEL OUT
Passing Through
Fixing Points
16Ω
64Ω
IMPEDENCE SWITCH
INPUT
PARALLEL OUT
Passing Through
Fixing Points
Passing Through
Fixing Points
8Ω
32Ω
IMPEDENCE SWITCH
Passing Through
Fixing Points
Passing Through
Fixing Points
Passing Through
Fixing Points
Passing Through
Fixing Points
16Ω
64Ω
IMPEDENCE SWITCH
INPUT
PARALLEL OUT
INPUT
PARALLEL OUT
USER GUIDE
•20230329•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vyper-KV25 II and is the answer not in the manual?

Questions and answers

Related Manuals for K-array Vyper-KV25 II

Summary of Contents for K-array Vyper-KV25 II

  • Page 1 USER GUIDE Vyper-KV Ultra-flat aluminum line array element •20230329• Passing Through Fixing Points Passing Through Fixing Points Passing Through Fixing Points 8Ω 32Ω IMPEDENCE SWITCH Passing Through Fixing Points Passing Through Fixing Points Passing Through Passing Through 8Ω 32Ω Fixing Points Fixing Points IMPEDENCE SWITCH INPUT...
  • Page 2 This page intentionally left blank...
  • Page 3 Vyper-KV USER GUIDE IMP OR TA N T S A FE T Y INSTRU CT IO NS General heed and warnings • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. •...

  • Page 4: Trademark Notice

    This device complies with Industry Canada’s licence-exempt RSSs. Operation is amplifier’s rated range can damage the apparatus. subject to the following two conditions:  • K-array cannot be held responsible for damage caused by improper use of the • this device may not cause interference, and  loudspeakers.
  • Page 5 Unpacking Vyper-KV25 II Positioning Vyper-KV25R II Quick Start Guide Surface mounting installation Vyper-KV52 II / Vyper-KV52F II Vyper-KV25 II, Vyper-KV52II, Vyper-KV52R II / Vyper-KV52FR II Vyper-KV52F II, Vyper-KV102 II In-wall mounting installation Vyper-KV102 II Vyper-KV25R II, Vyper-KV52R II, Vyper-KV102R II...
  • Page 6 Vyper-KV USER GUIDE This page intentionally left blank...
  • Page 7 K-array distributor in your country. The Vyper line consists of the flattest speakers in the K-array portfolio and are housed in an elegant and resistant 2-cm-deep aluminum frame that features closely-spaced transducers which boast Pure Array Technology.
  • Page 8 The only exception to this rule-of-thumb is about the Vyper- KV52F II and Vyper-KV52FR II featuring a wide dispersion in both directions. Note: * 1x IP65 connectors sealing plate in Vyper-KV25 II and Vyper-KV25R II ** 1x two terminals Euroblock 2,5/ 2-ST-5,08 in Vyper-KV25 II and Vyper-KV25R II...
  • Page 9 Vyper-KV USER GUIDE Quick Start Guide Surface mounting installation In-wall mounting installation Vyper-KV25 II, Vyper-KV52II, Vyper-KV25R II, Vyper-KV52R II, Vyper-KV52F II, Vyper-KV102 II Vyper-KV52FR II, Vyper-KV102R II Follow these instructions to properly install the loudspeaker: Follow these instructions to properly install the loudspeaker: 1.
  • Page 10 Vyper-KV USER GUIDE Wiring In application demanding IP65 devices: For easy connectivity and link, the Vyper-KV line array A. Cut a small aperture on the IP65 connector sealing plate’s loudspeakers feature Euroblock 2 pin inlets, namely for Phoenix rubber; 2,5/ 2-ST-5,0 flying plug. B.
  • Page 11 The top and the bottom connectors of a Vyper-KV loudspeaker in parallel to the same amplifier channel depends on the (the only exception is the Vyper-KV25 II / Vyper-KV25R II loudspeaker model, loudspeaker impedance and amplifier power. featuring a single input connector) are paralleled so that the...

  • Page 12: Installation

    Surface mounting installation In-wall installation Lenght Model Lenght Model Drilling template for in-wall installation 260 mm 270 mm Vyper-KV25 II Vyper-KV25R II 10.24in 10.63in 500 mm 510 mm Vyper-KV52 II Vyper-KV52R II 19.69in 20.08 in 505 mm Cut-out template for flushed mounting...
  • Page 13 Vyper-KV USER GUIDE Surface mounting installation 7. Uses dowels and screws to fix the loudspeaker to the surface. 1. Cut the drilling template out of the packaging box. 8. Reposition the grill on the loudspeaker. 2. Lay the drilling template on the mounting surface taking care to properly align it vertically.

  • Page 14: In-Wall Installation

    Vyper-KV USER GUIDE In-wall installation E. Set the loudspeaker cable wirings and head them with the connector matching the loudspeaker signal polarity. A. Cut the drilling template out of the packaging box. F. Set the proper loudspeaker impedance. B. Lay the drilling template on the mounting surface taking G.
  • Page 15 To obtain service: 1. Please have the serial number(s) of the unit(s) available for reference. 2. Contact the official K-array distributor in your country: find the Distributors and Dealers list on K-array website. Please describe the problem clearly and completely to the Customer Service.

  • Page 16: Mechanical Drawings

    40mm 22mm Vyper-KV 1,56in 0,85in USER GUIDE Passing Through Fixing Points Mechanical drawings Passing Through Fixing Points Vyper-KV25 II Vyper-KV25R II 8Ω 32Ω 40mm 22mm IMPEDENCE SWITCH 50mm 19mm INPUT 1,56in 0,85in PARALLEL OUT 1,9in 0,1in 0,7in Passing Through Fixing Points...
  • Page 17 Vyper-KV USER GUIDE Vyper-KV52 II / Vyper-KV52F II Vyper-KV52R II / Vyper-KV52FR II 40mm 40mm 22mm 22mm 50mm 50mm 19mm 19mm 1.56in 1.56in 0.85in 0.85in 1.95in 1.95in 0.12in 0.12in 0.73in 0.73in 34mm 34mm 1.32in 1.32in Passing Through Passing Through Fixing Points Fixing Points Passing Through Passing Through...
  • Page 18 Vyper-KV USER GUIDE Vyper-KV102 II 40mm 22mm 40mm 22mm 22mm 22mm 1.56in 0.85in 1.56in 0.85in 0.85in 0.85in Passing Through Passing Through Passing Through Passing Through Fixing Points Fixing Points Fixing Points Fixing Points Passing Through Passing Through Passing Through Passing Through Fixing Points Fixing Points Fixing Points...
  • Page 19 Vyper-KV USER GUIDE 19mm 19mm 0.73in 0.73in 34mm 34mm Vyper-KV102R II 1.32in 1.32in 50mm 1.95in 0.12in...

  • Page 20: Technical Specifications

    Vyper-KV USER GUIDE Technical Specifications Vyper-KV25 II Vyper-KV25R II Key Features Key Features Type Passive line array loudspeaker Type Passive line array loudspeaker Transducers 4x 1” Neodymium magnet woofers Transducers 4x 1” Neodymium magnet woofers Frequency Response 150 Hz - 18 kHz (-6 dB)
  • Page 21 Vyper-KV USER GUIDE Vyper-KV52II Vyper-KV52R II Key Features Key Features Type Passive line array loudspeaker Type Passive line array loudspeaker Transducers 8x 1” Neodymium magnet woofers Transducers 8x 1” Neodymium magnet woofers Frequency Response 150 Hz - 18 kHz (-6 dB) Frequency Response 150 Hz - 18 kHz (-6 dB) Max SPL...
  • Page 22 Vyper-KV USER GUIDE Vyper-KV52FII Vyper-KV52FR II Key Features Key Features Type Passive line array loudspeaker Type Passive line array loudspeaker Transducers 8x 1” Neodymium magnet woofers Transducers 8x 1” Neodymium magnet woofers Frequency Response 150 Hz - 18 kHz (-6 dB) Frequency Response 150 Hz - 18 kHz (-6 dB) Max SPL...
  • Page 23 Vyper-KV102II Vyper-KV102R II Key Features Key Features Type Passive line array loudspeaker Type Passive line array loudspeaker Transducers 16x 1” Neodymium magnet woofers Transducers 16x 1” Neodymium magnet woofers Frequency Response 150 Hz - 18 kHz (-6 dB) Frequency Response 150 Hz - 18 kHz (-6 dB) Max SPL 120 dB peak...
