FTI MSKC Series Installation And Maintenance Instructions Manual

ASSeMBLY
WaRninG: Magnetic field hazard. This pump contains
powerful, rare earth magnets. When the pump is disassembled
(not connected to a motor) and the magnets are exposed, these
magnets produce powerful magnetic fields. individuals with
cardiac pacemakers, implanted defibrillators, other electronic
medical devices, metallic prosthetic heart valves, internal wound
clips (from surgery), metallic prosthetic devices or sickle cell
anemia must not handle or be in the proximity of the magnets
contained inside the pump. Consult a health care provider for
specific recommendations before working with this pump.
Unpack Pump, Drive Magnet Assembly and Hardware Package
from carton and check for shipping damage.
PUMPS WiTH MOTOrS
Proceed to installation Section.
PUMPS WiTHOUT MOTOrS
(56C frame)
1. remove pump, drive magnet assembly and hardware package
from box.
Caution: Keep away from metallic particles, tools and
electronics.
Caution: Drive magnets MUST be free of metal chips.

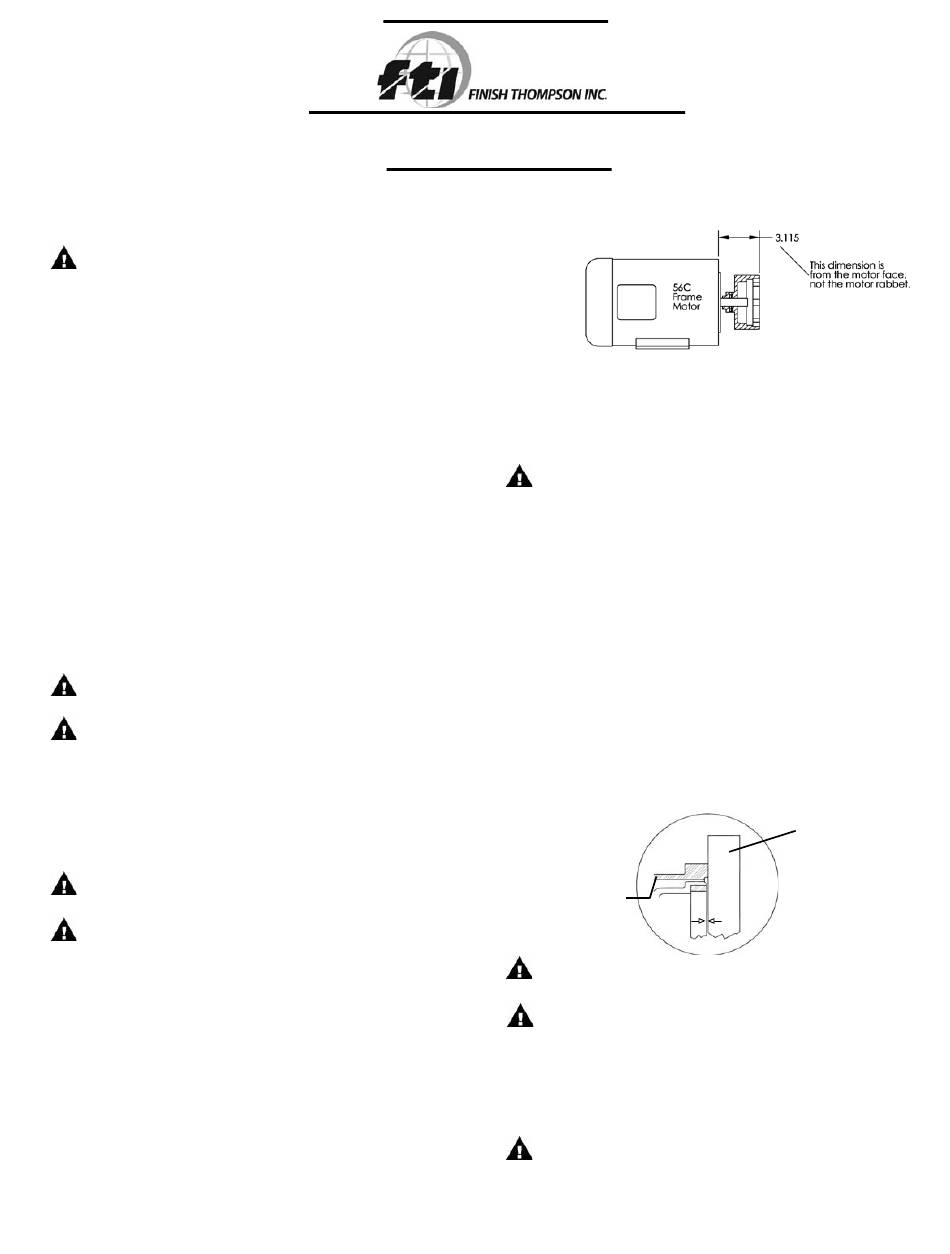

2. Slide drive magnet assembly (item 10) onto the motor shaft
until it is between 3.110" and 3.120" as measured from the
motor face to the top of the drive magnet assembly. See
Figure 1. Align cone point set screw (item 10B) with key slot
on the motor shaft and tighten both set screws with a 5/32"
Allen wrench to 140 in-lbs. (15.8 N-m).
Caution: Do not operate/test the motor with the drive
magnet assembly exposed.
WaRninG: Magnets are strong. To avoid damage and pinch-
ing fingers, tightly grasp pump assembly keeping finger tips
away from the area where the motor adapter and motor meet.
3. Carefully slide the pump assembly over the drive magnet
assembly. Orient the discharge port to either the 12 or 9
o'clock position. Make sure rabbet (step) on motor is fully
seated into the motor adapter (item 11). Align bolt holes in
motor adapter and motor. install (4) bolts and washers (items
14A,14B,14C) from hardware package.
4. Manually rotate pump assembly to ensure that the pump is
not binding or rubbing on the drive magnet assembly.
5. install the pump into the system according to installation
instructions.
MSKC SerieS Multi-Stage
Sealless Non-Metallic Centrifugal Pumps
installation and Maintenance instructions
PUMPS WiTHOUT MOTOrS
(71/B14 & 80/B14 frame)
1.
2.
3.
4.
note: Prior to start-up, double check both drive magnet set
screws to assure that they are firmly tightened. Failure to do so
could result in internal damage. rotate to assure clearance with
the motor adapter.
ing fingers, tightly grasp pump assembly keeping finger tips away
from the area where the housing and motor adapter meet.
1
remove pump, drive magnet assembly and hardware package
from box.
Caution: Keep away from metallic particles, tools and
electronics.
remove screws and washers (items 12A, 12B & 12C) from
impeller housing (item 1) and remove wet end assembly from
motor adapter (item 11).
install motor adapter onto motor (labels at top) and secure
with motor bolts and washers (items 14A, 14B, 14C) from
hardware package.
Slide the drive magnet (item 10) onto the motor shaft so that
the cone point setscrew (item 10B) is aligned with the motor
shaft keyway. install the drive magnet so that it is recessed
1.016 mm (.040" +/- .005") below the surface of the motor
adapter (see figure 2). Tighten both setscrews with a 5/32"
Allen wrench to 15.8 N-m (140 in-lbs.).
Figure 2
DRIVE
T
MAGNE
ASSY.
.040"
Caution: Do not operate/test the motor with the drive
magnet assembly exposed.
Caution: Drive magnets MUST be free of metal chips.
WARNING: Magnets are strong. To avoid damage and pinch-
Figure 1
STRAIGHT
EDGE
