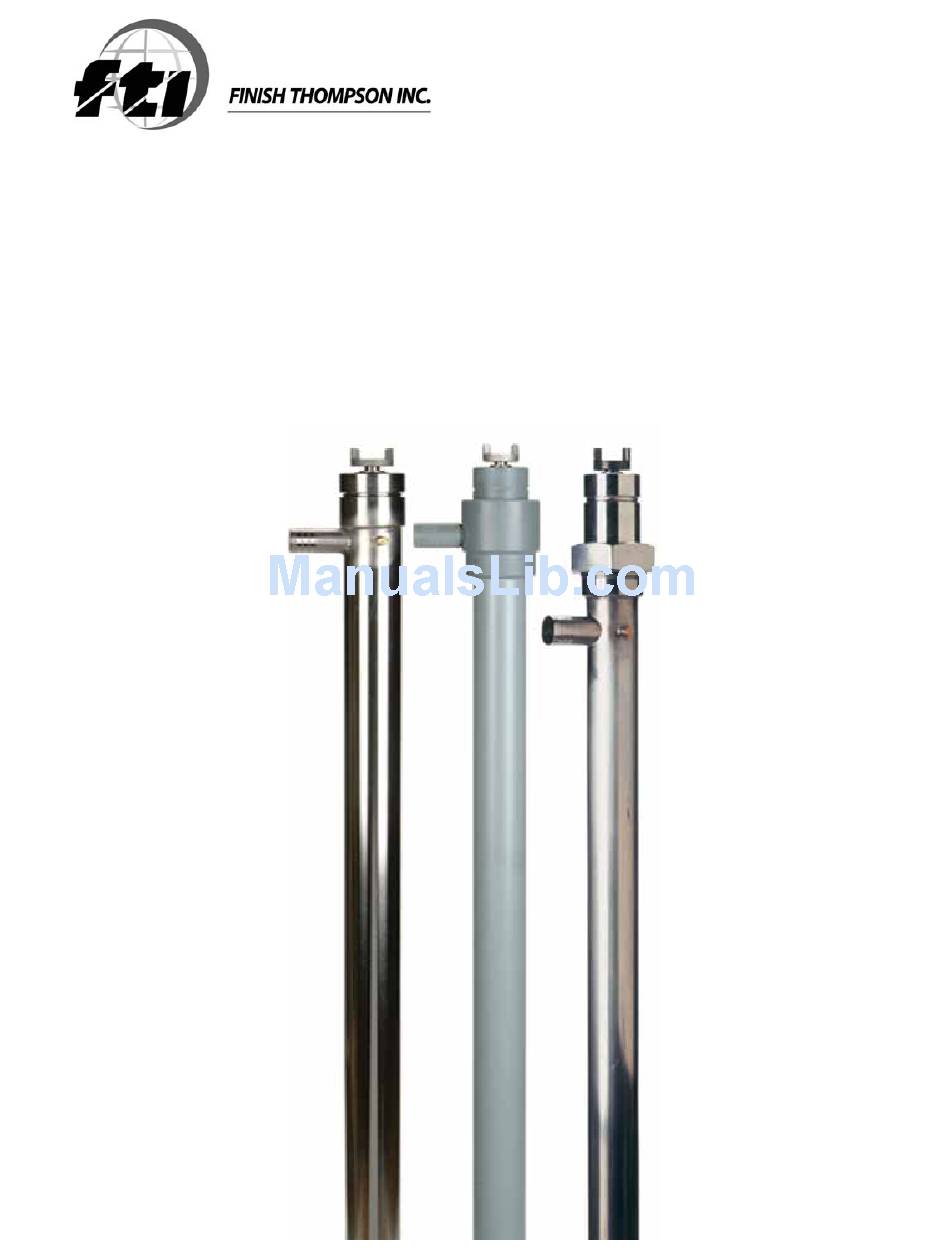

- Page 1 TT SERIES PUMPS TTS, TTC, & STTS OPERATION & PARTS MANUAL...
- Page 2 EPPI/EPPS 15/27/40 EFP/EFV/EFS-16/27/40/48 HVDP LR-27/40/48 HVDP HR-27/40/28 PFM-27/40/48/60 PFP-15/27/40/48/60/72 PFS-27/40/48/60/72 PFV-27/40/48/60/72 TBP-27/40/48 TBS-40 TTC/TTS-27/40/48 STTS-40 TMS-40 EC Directives: Machinery Safety (2006/42/EC) Applied Harmonized Standards: EN ISO 12100 Part 1 EN ISO 12100 Part 2 EN 809 Manufacturer: Finish Thompson Inc.
-
Page 3: Table Of Contents
Pump Specifications ........................ 4 Installation ..........................5 Maintenance Disassembly ........................5 Inspection ........................... 6 Reassembly ........................6 Exploded View TTS/TTC ..........................7 STTS ........................... 8 Pump Tube Spare Parts List TTS/TTC ..........................9 STTS ........................... 10 Technical Service Hotlne: 1-800-888-3743 or email techservice@finishthompson.com... -
Page 4: Warranty, General Terms & Conditions
Warranty, General Terms & Conditions The following terms and conditions apply to the sale of machinery, components and related services and products, of Finish Thompson Inc. (hereinafter “the products”) Finish Thompson Inc. (the manufacturer) warrants only that: a) its products are free of defects in material, design and workmanship at the time of original purchase; b) its products will function in accordance with Finish Thompson Inc. -
Page 5: Safety
Safety 1. Introduction This manual contains all the information needed for the correct installation, use and maintenance of your new Finish Thompson pump. It should be read and understood by all the personnel involved in installation, operating and servicing of the pump before it is started. -
Page 6: Pump Specifications
PUMP SPECIFICATIONS MODEL TTS MODEL TTC MODEL STTS Outer Tube Diameter 1-1/2” (3.8 cm) 1-5/8” (4.1 cm) 1-1/2” (3.8 cm) Discharge Thread 1” hose barb 1” hose barb 1” hose barb Max. Specific Gravity Max. Viscosity 2000 cP 2000 cP 2000 cP -20°F Min. -
Page 7: Installation
3. When the bearing is completely out, use a pair of needle nose pliers and carefully straighten the four slightly bent “feet” at the bottom of the intake tube on the TTS model. This will allow you to use the pliers to remove the bottom bearing (item 13). -
Page 8: Inspection
Inspection 1. Inspect the shaft locating hole in the center of the bottom bearing (item 13 on the TTS/TTC and 16 on the STTS. If the inside diameter is .400 or larger than replace it. 2. Visually check the all the compressors (item 9 on TTS/TTC and item 12 on STTS) for damage. If they need replaced, you must remove the pin first. - Page 9 TTC/TTS SPARE PARTS EXPLODED VIEW...
-
Page 10: Stts
STTS SPARE PARTS EXPLODED VIEW... - Page 11 27” CPVC (TTC) A100926-1 40” CPVC (TTC) A100926-4 48” CPVC (TTC) A100926-3 IMPELLER ASSEMBLY PTFE WITH STAINLESS STEEL PIN (TTS) A100030 PTFE WITH ALLOY 625 PIN (TTC) A100039 COMPRESSOR PTFE WITH STAINLESS STEEL PIN (TTS) A100044 PTFE WITH ALLOY 625 PIN (TTC)
- Page 12 STTS SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF J100013 BEARING ASSEMBLY WITH ROLL PIN A101672 SEAL ASSEMBLY PTFE A100284 UNION NUT 316 STAINLESS STEEL J100083 BEARING HOUSING 316 STAINLESS STEEL M100078 UNION NUT GASKET FDA APPROVED NEOPRENE J100084 LOCK WASHER #8 BRASS...
