Summary of Contents for FTI PF Series

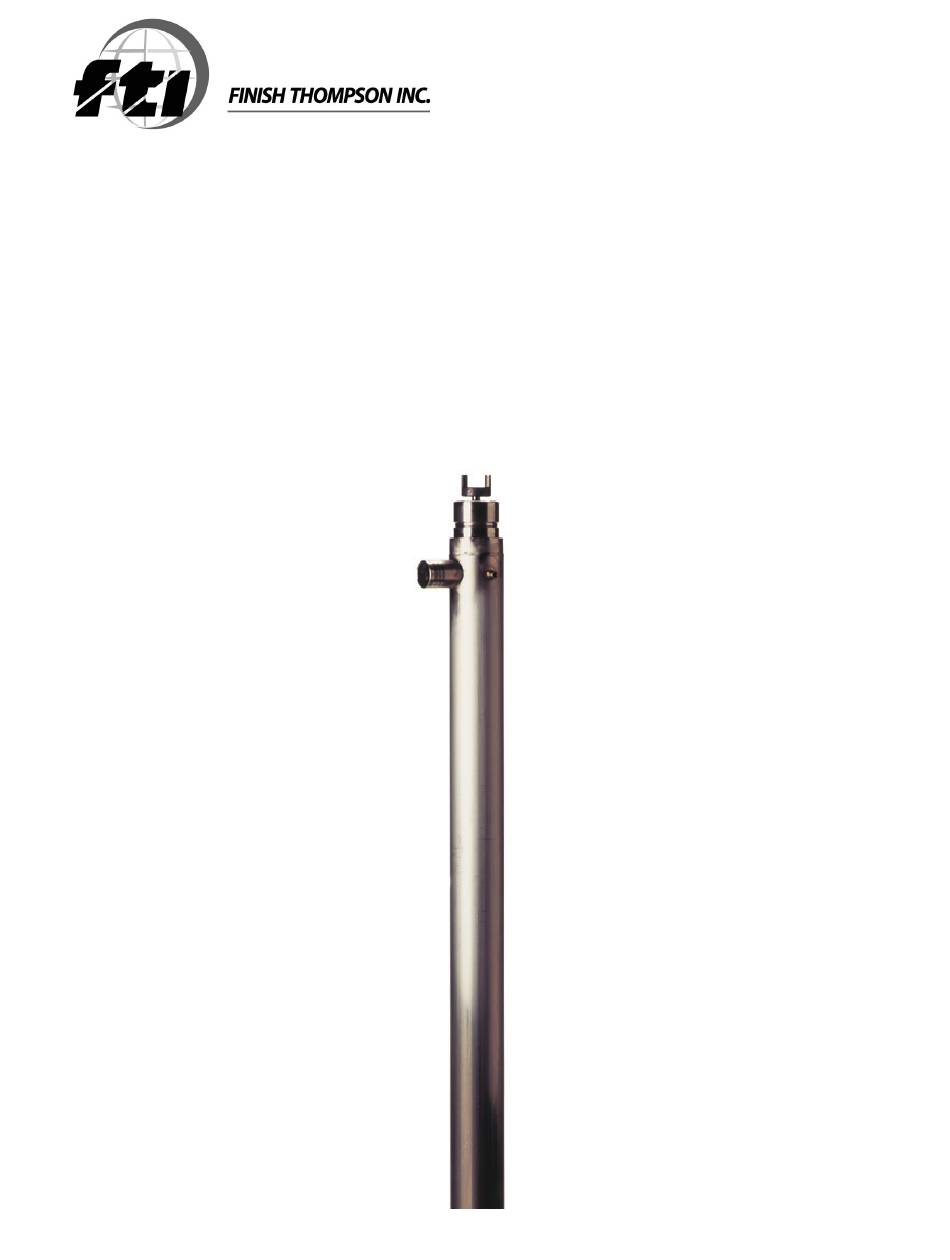

- Page 1 PF SERIES PUMPS OPERATION & PARTS MANUAL For Serial Number 162858 & lower Rev 2...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the Drum and Container Pump complies with the provisions of all relevant EU Directives.
-
Page 3: Table Of Contents
Introduction This manual pertains to the PF Series, specifically the PFS stainless steel drum pump. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trou- ble-free service;... -
Page 4: Warranty, General Terms & Conditions
Warranty, General Terms & Conditions The following terms and conditions apply to the sale of machinery, components and related services and prod- ucts, of Finish Thompson Inc. (hereinafter “the products”) Finish Thompson Inc. (the manufacturer) warrants only that: a) its products are free of defects in material, design and workmanship at the time of original purchase; b) its products will function in accordance with Finish Thompson Inc. -
Page 5: Safety
Safety 1. Introduction This manual contains all the information needed for the correct installation, use and maintenance of your new Finish Thompson pump. It should be read and understood by all the personnel involved in installation, operating and servicing of the pump before it is started. -
Page 6: Installation
Installation & Maintenance Instructions Installation 1. Remove the drum pump and motor from its packaging and inspect for shipping damage. 2. Turn the pump coupling to verify there is no binding. Verify the housing cover (item 21) is on tight (it has a left hand thread. -
Page 7: Reassembly
Reassembly 1. Install new lip seal (item 4) into the pump head with the grooved side facing the bottom of the pump. 2. If bearing assembly is replaced -- thread the shaft (item 19) into the bearing assembly (item 3) with the 3/32 hole in the shaft on the other end. -
Page 8: Exploded View
PFS SPARE PARTS EXPLODED VIEW Also Pictured: Item 25 (Middle Inner Tube - 60” & 72” pump lengths only) & Item 26 (Lower Middle Inner Tube - 72” pump length only) -
Page 9: Pump Tube Spare Parts List
PUMP SPARE PARTS LIST (for serial numbers 162858 and lower) ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF J100012 BEARING ASSEMBLY A101110 VAPOR SEAL M100008 LOCK WASHER #8 BRASS J100823 SCREW #8-32 X 1/4 BRASS PAN HEAD J100822 INTAKE TUBE ASSEMBLY 27”... - Page 10 PFS HOUSING COVER (sold as a kit with Item 18) † See Item 18 UPPER MIDDLE INNER TUBE 27” MODELS 40” MODELS 48” MODELS 60” MODELS M100789-3 72” MODELS M100789-3 LOWER MIDDLE INNER TUBE 72” MODELS M100789-1 *Recommended Spare Parts †...
