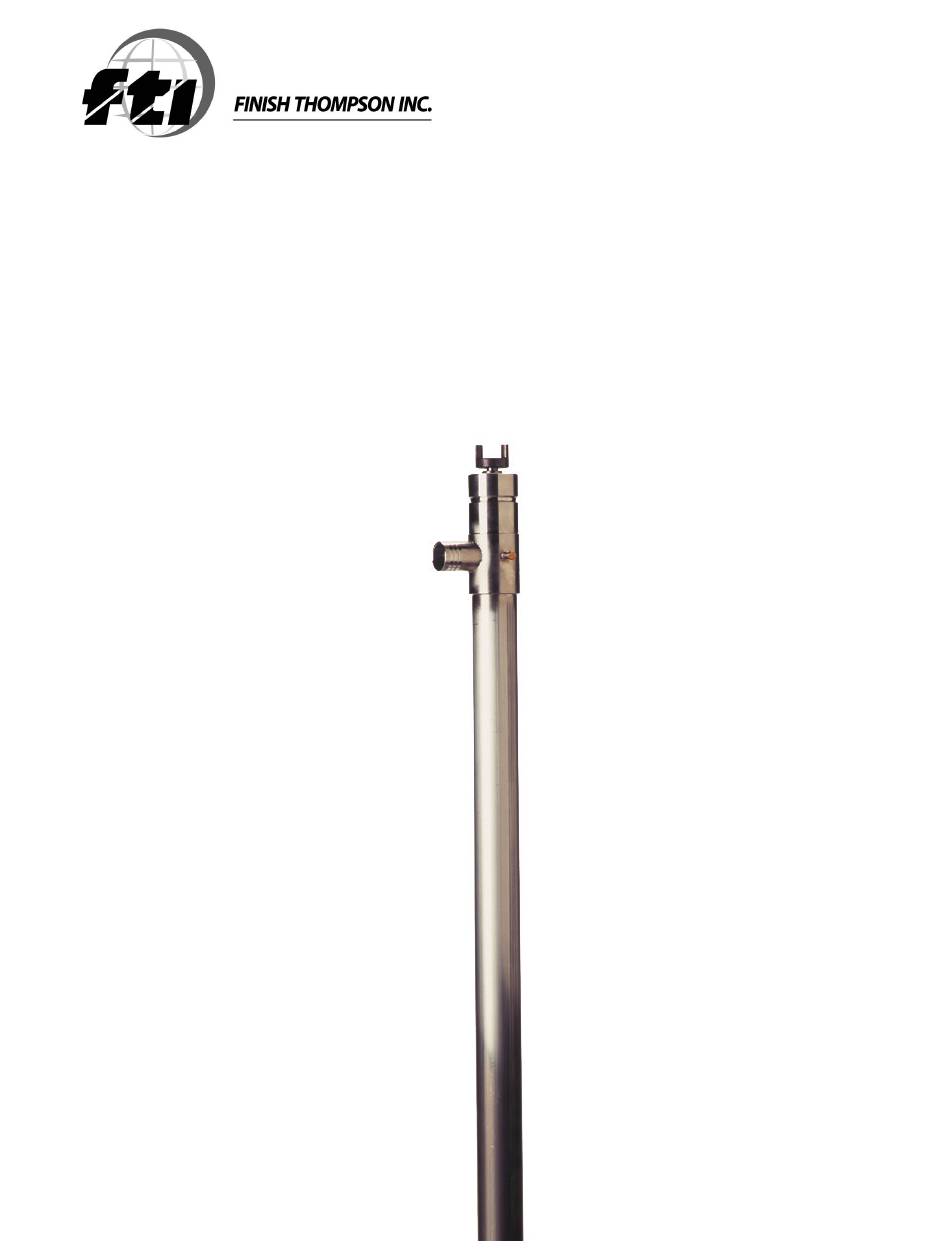

- Page 1 TB SERIES PUMPS OPERATION & PARTS MANUAL P/N 108099 R5...
- Page 2 EU Declaration of Conformity Finish Thompson Inc. hereby declares that the following machine(s) fully comply with the applicable health and safety requirements as specified by the EU Directives listed. The product may not be taken into service until it has been established that the drive motor for the Drum and Container Pump complies with the provisions of all relevant EU Directives.
-
Page 3: Table Of Contents
Introduction This manual pertains to the TB Series stainless steel drum pump and accessories. Finish Thompson Inc. thanks you for choosing our products. We believe the use of our products will be fully satisfactory. When properly installed and operated, your Finish Thompson motor and pump will provide long, trouble-free service; therefore, please read this manual carefully before carrying out any operations on the pump/motor unit. -
Page 4: Warranty, General Terms & Conditions
Warranty, General Terms & Conditions The following terms and conditions apply to the sale of machinery, components and related services and products, of Finish Thompson Inc. (hereinafter “the products”) Finish Thompson Inc. (the manufacturer) warrants only that: a) its products are free of defects in material, design and workmanship at the time of original purchase; b) its products will function in accordance with Finish Thompson Inc. -
Page 5: Safety
Safety 1. Introduction This manual contains all the information needed for the correct installation, use and maintenance of your new Finish Thompson pump and accessories. It should be read and understood by all the personnel involved in installation, operating and servicing of the pump before it is started. -
Page 6: Important Safety Information For Pumping Flammable Or Hazardous Substances
IMPORTANT SAFETY INFORMATION FOR PUMPING FLAMMABLE OR HAZARDOUS SUBSTANCES Read these instructions before operating the pump and motor equipment. The manufacturer will not be responsible for any damage to property or to persons caused by improper use of the equipment. WARNING: It is the responsibility of the user to operate the pump in conformance with OSHA rules for dispensing liquids. -
Page 7: Pump Specifications
PUMP SPECIFICATIONS MODEL TBS Outer Tube Diameter 1-1/2” (3.8 cm) Discharge Thread 1” hose barb Max. Specific Gravity Max. Viscosity 200 cP -20°F Min. to 150°F Max. Min./ Max. Fluid Temperature (-29°C Min. to 66°C Max.) Wetted Materials 316 Stainless Steel, PTFE... -
Page 8: Installation
Installation & Maintenance Instructions Installation 1. Remove the drum pump and motor from its packaging and inspect for shipping damage. 2. Turn the pump coupling to verify there is no binding. 3. Adjust the coupling so that the empty slots in the insert are at 3 and 9 o’clock with the pump discharge at 12 o’clock. -
Page 9: Reassembly
2. Inspect the bearing assembly for rust, corrosion, or tightness and replace as needed. 3. Inspect the pump shaft in the seal area and the center bearing areas for excessive wear. Replace the shaft if needed. Reassembly 1. Insert the shaft assembly up through the bottom of the tube until it sticks out the top of the pump head. 2. -
Page 10: Exploded View
TBS SPARE PARTS EXPLODED VIEW... -
Page 11: Pump Tube Spare Parts List
SPARE PARTS LIST ITEM DESCRIPTION PART NUMBER COUPLING INSERT J100014 COUPLING HALF J100013 BEARING ASSEMBLY W/ ROLL PIN A101672 SEAL ASSEMBLY PTFE A100284 LOCK WASHER #8 BRASS J100823 SCREW #8-32 X 1/4 BRASS PAN HEAD M/S J100822 INTAKE TUBE ASSEMBLY 40”... - Page 12 Service 1-800-888-3743 P/N 108099 REV. 5, 3/27/2020...
